DJM2507-35 | DJM Suspension 3 Inch Front / 5 Inch Rear Lowering Kit (2007-2014 Silverado, Sierra 1500 2WD)

2007 - 2017 Chevy Silverado / Sierra Complete 3/5 DJM Kit with Cast Iron Spindles
2WD only - not intended for 4WD platform

2014 and newer Silverado's come from the factory 2 ways, either with cast iron steering knuckles or cast aluminum steering knuckles. It is important to know what you have, before you order your parts. Click on the images below to help you identify your spindle!


So what’s better than a 2" Calmax Control Arm set for the front? How about a 3 inch Calmax Control Arm set. With this kit you can get a 3 inch front and 5" rear drop that is completely aligned will and suffers no loss of travel in the front with no worries about will clearance issues.

These Calmax arms will give you a 3 inch drop and retain factory travel and factory alignment specifications. They do it by replacing both upper and lower control arms! Simply remove factory arms and replace with your Calmax arms and you’re done!

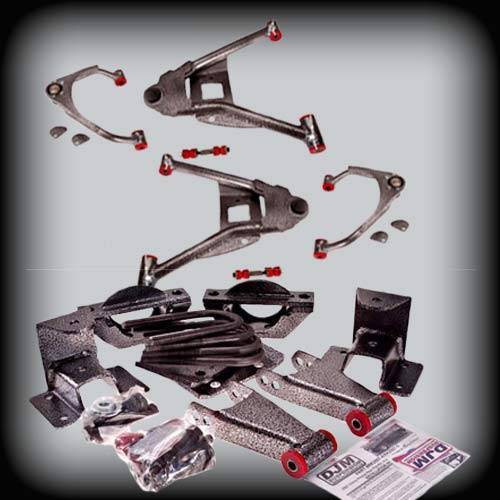

The rear kit consists of an axle flip kit featuring those DJM exclusive pinion adjustable axle brackets and new shackle hangers that invert the shackle mounting point allowing the longer shackles included to lift the rear end to the five-inch drop position.

(A clever way to get around those welded hangers!)

Works with your factory strut in the front. You should upgrade the rear shocks to Calmax SuperShocks number 2100.
