DJM3004-34 | DJM Suspension 3 Inch Front / 4 Inch Rear Lowering Kit (1965-1972 F150 Pickup 2WD)

1965-1972 Ford F100 Pickup 2WD

DJM3004-34
Pricing: $1,476.25
Qty:
Free Ground Shipping | Exclusions Apply*

Description

1965 – 1972 Ford F-100 3/4 Complete Lowering kit by DJM

2 WD King pin trucks only

In 1965 Ford announced to the world “Twin I-Beams”. This new suspension design is still in use today on Fords very popular “Superduty” line, but it all started here with the 1965 F-100. This 3/4 kit uses our “Dream Beams” which give you a 3? drop by simply removing the factory beam and replacing it with our new Dream Beam!

The rear is lowered with a hanger / shackle kit that yields a full 4? drop. Just moving the leaf spring up on the frame is how this works. You won’t believe the stance of your “effie” after you install this kit and neither will your friends!

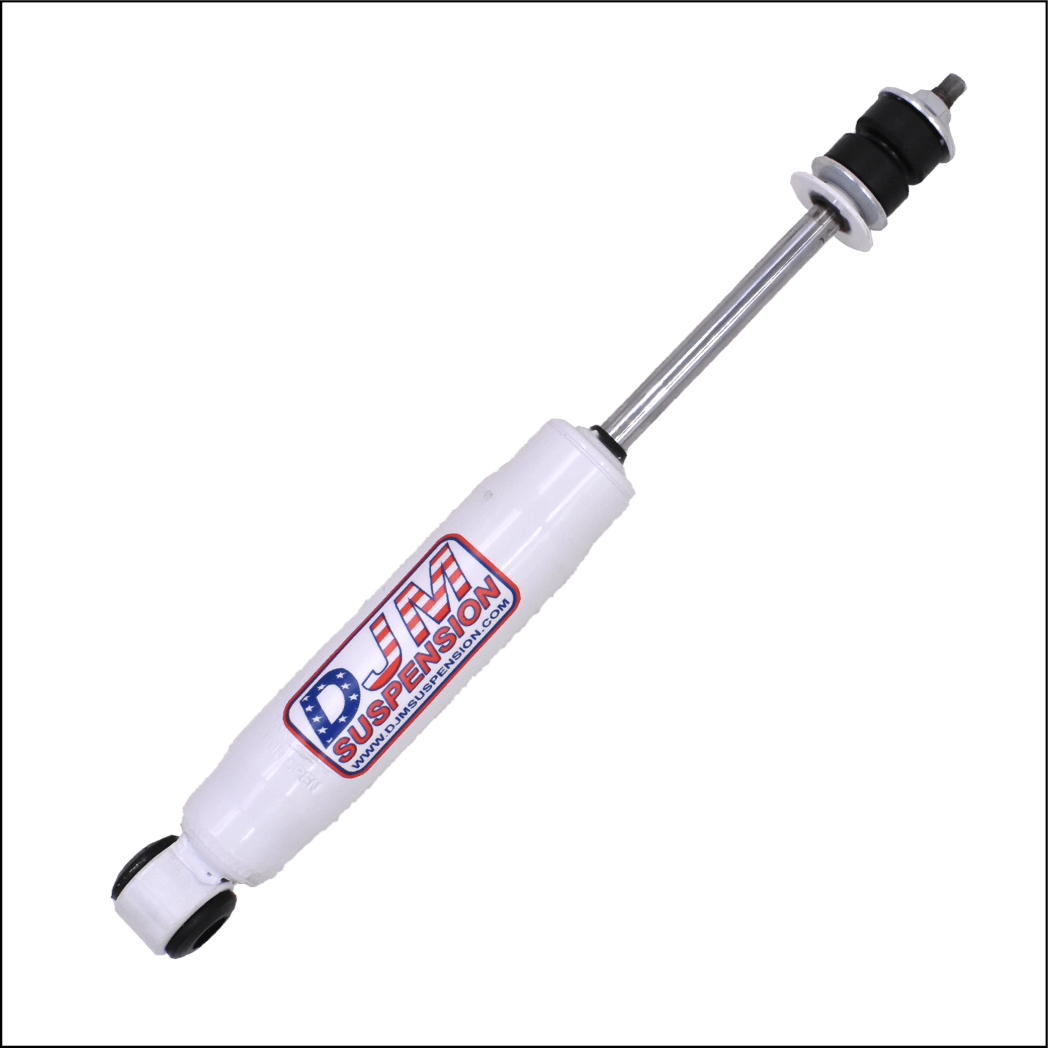

Here's and important tip you need to know - Ford used a couple different mounting ends on the shocks on F-100's from 1965-1979
#1 - A Lopp mount with bushings in both ends of the shock
#2 - A loop mount with bushing on the bottom mount with a threaded stem on the top

Front - if you have style #1 use shock part number 1409
Front - if you have style #2 use shock part number 1415
Rear - if you have style #1 use shock part number 1900
Rear - if you have style #2 use shock part number 1910

Vehicle Applications

1965-1972 Ford F-100 Pickup 2wd

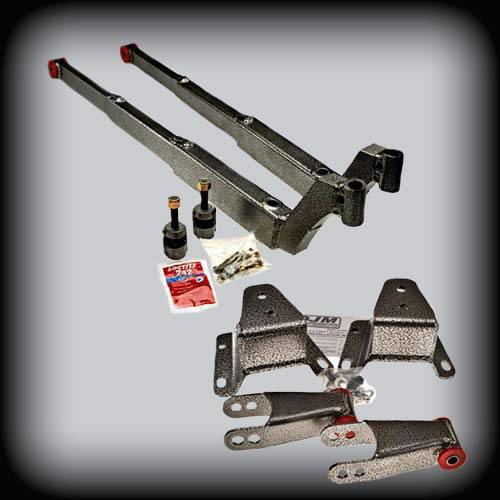

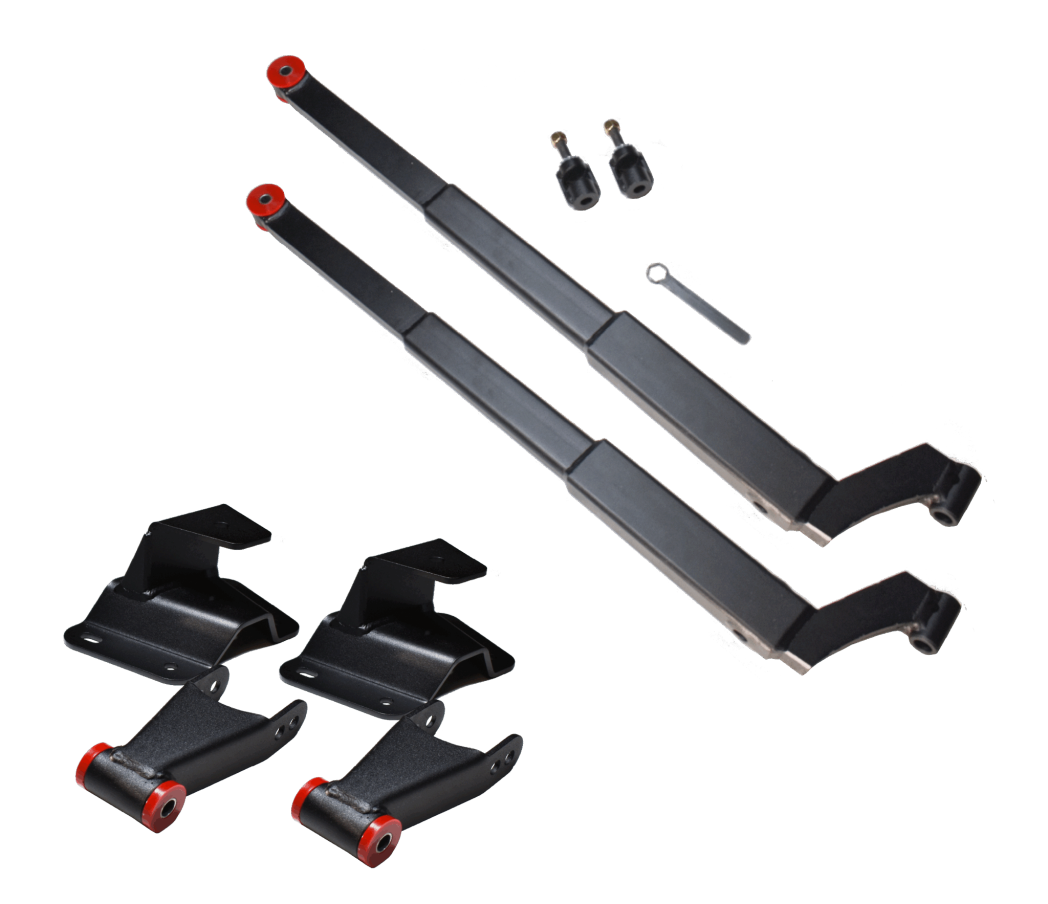

Components

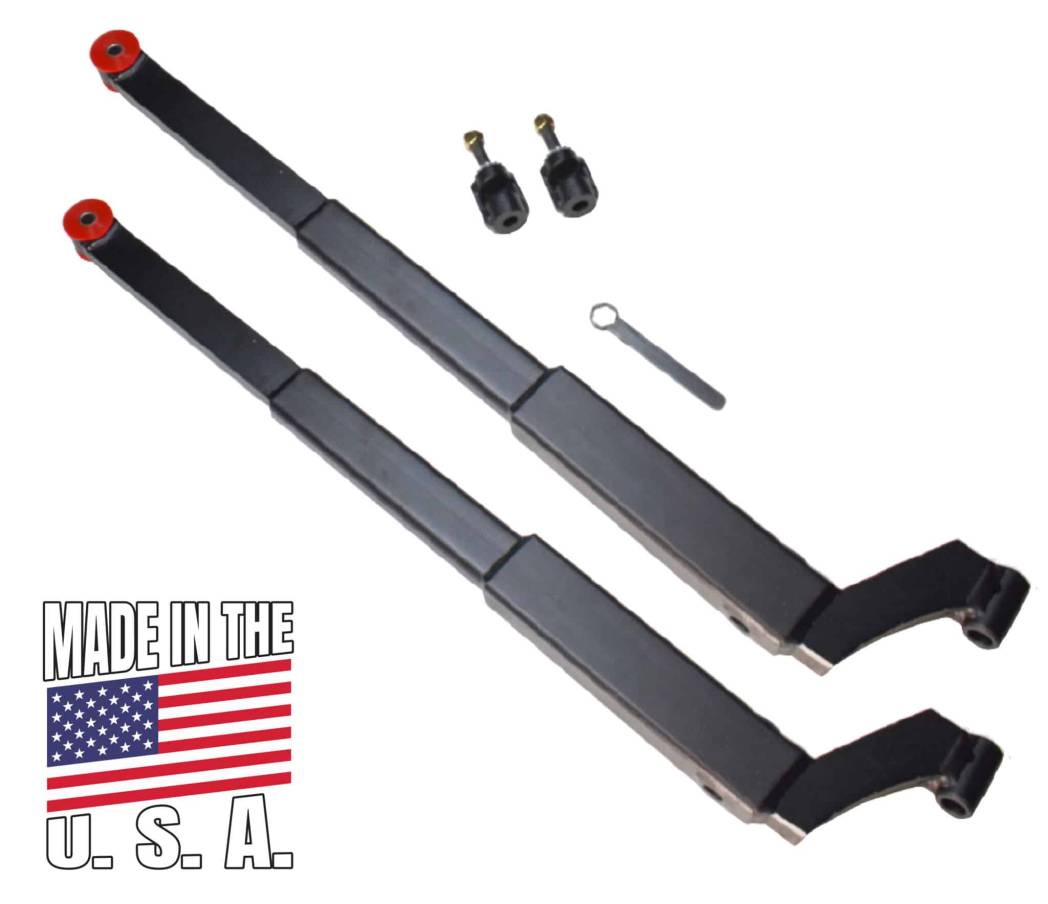

DB3004-3 3 Inch Front I Beams

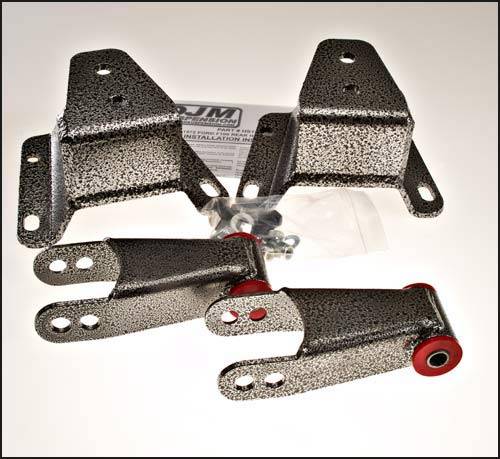

HS1130-4 4 Inch Rear Hanger and Shackle

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 75.0 lbs.
  • W12.0000” x H12.0000” x L36.0000”
  • Free Ground Shipping | Exclusions Apply*
