69-1036 | ReadyLift 2.5 Inch SST Suspension Lift Kit (2009-2024 Ram 1500 Pickup)

2009-2010 Dodge Ram 1500 Pickup 4WD | 2011-2024 Ram 1500 Pickup 4WD | Classic Body Style | Does NOT Fit Factory Air Ride

69-1036
Pricing: $909.94
Qty:
Free Ground Shipping | Exclusions Apply*

Description

2.5" SST LIFT KIT - DODGE RAM 1500 4WD 2009-2024

Lift your 2009-2024 Ram 1500 Classic 4WD 2.5" in front and 1.5" in the rear with our ReadyLIFT SST Lift Kit.

This kit includes our new heavy-duty DOM tube steel upper control arms with corrected ball joint cup angles and heavy-duty ball joints. The same ball joints found in HD trucks!  Fabricated steel top mount strut extensions provide 2.5" of front lift while steel coil spring rear spacers provide 1.5" of rear lift.  This easy-to-install system also includes bump stop extensions and our new one-time grease control arm bushings.

Allows for up to a 35x11.50 tire on a 9" wheel with +12 offset for a no-rub situation.
Requires no permanent modifications.

Application List

2009-2010 Dodge Ram 1500 Pickup 4WD
2011-2018 Ram 1500 Pickup 4WD
2019-2024 Ram 1500 Pickup 4WD, Classic

Tires & Wheels

Max: 35" tire.
35x11.50 on a 9" wide wheel with +12 backspacing.

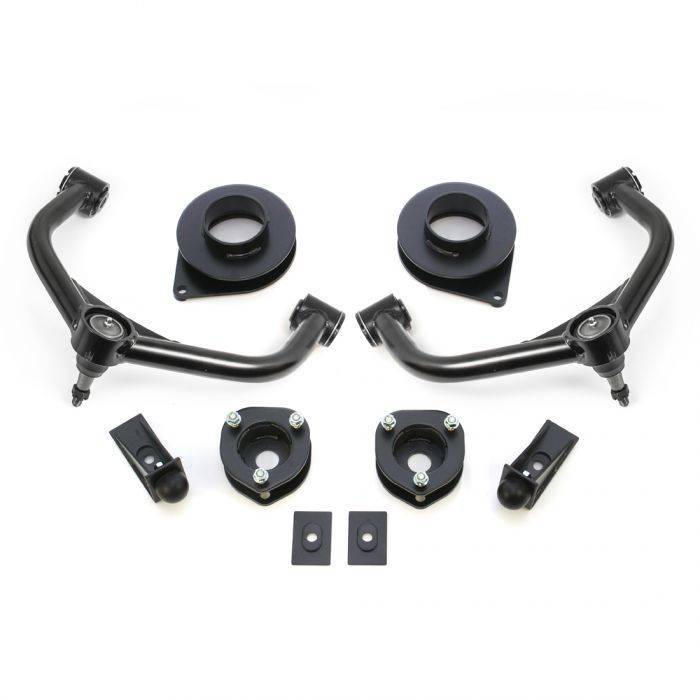

Components

(2) Tubular Steel Upper Control Arms with all necessary hardware and bushings.
(2) Powdercoated steel strut extensions with hardware.
(2) Bump stop extensions with new bump stops.
(2) Rear coil spring spacers.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 32.2 lbs.
  • W12.0000” x H6.0000” x L16.0000”
  • Free Ground Shipping | Exclusions Apply*

Documents
