K878B | Superlift 6 inch Suspension Lift Kit with Bilstein Shocks (2011-2016 F250, F350 Super Duty 4WD | Diesel)

This is a complete coil spring suspension lift kit for the 2011-2016 Ford F-250/F-350 4WD – diesel engine
Provides 6” lift height
Includes track bar and radius arm drop brackets, rear blocks, front and rear 5100 Series Bilstein shocks

What does it include?

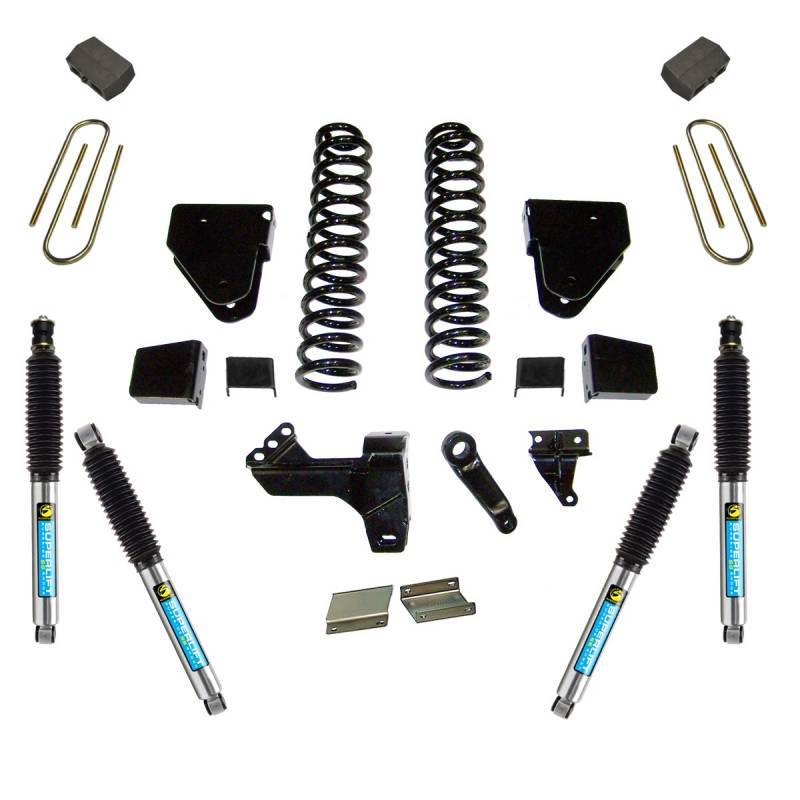

Front coil springs, track bar bracket, radius arm brackets, sway bar correction, drop pitman arm, shocks, rear block and u-bolt kit, and all hardware required specific to the 2011-2016 4WD Ford F-250/F-350 DIESEL ENGINE
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation
This 6” Lift for the 2008-2010 Ford Super Duty F-250 | F-350 4WD features Superlift’s engine specific coil springs to ensure proper lift height and maintain factory ride quality. Radius arm drop brackets are used to restore proper caster angle and alignment. Other components included with this 6-inch suspension system are front compression travel-stop relocation brackets, track bar relocation bracket, Drop pitman arm, front anti-sway bar extensions, and steering stabilizer bracket. The OE Radius Arms are relocated to provide the proper caster correction.

Features | Benefits:
Engine Specific Coil Springs ensure ride quality while rear blocks maintain load capacity
Radius Arm Drop Brackets
Drop pitman arm reduces drag link angle
Front Compression Travel-Stop Brackets prevent suspension over-compression
Anti-sway Bar Extensions prevent bar preload
Track bar relocation bracket prevents stud bind, resulting roll and yaw, and steering wheel kick
Stabilizer bracket restores factory steering stabilizer angle for optimum operation
Rear lift via 2.5” Blocks with Add-a-leafs
Front and Rear Bilstein® 5100 Series Shocks
Backed by our limited lifetime warranty
Aligns to OEM specifications
Maintains ride quality and handling characteristics

NOTES:
Installation time: 8 hours
Difficulty level: 3 of 5

If the Ford F-250 | F-350 Super Duty is equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required, Part #
This lift kit is packaged with rear blocks and u-bolts that are configured for the Ford F-250 | F-350 pickups with the factory 1 7/8 Inch blocks WITHOUT top mount overloads. For Super Duty’s equipped with the 1-7/8 inch blocks and top overloads, part # 11734 will need ot be purchased in addition to the lift kit. If your vehicle is equipped with the factory top mount overloads or 3.71 inch blocks, a longer rear u-bolt will be required and is available from superlift.com.
