DJM2045H-55 | DJM Suspension 5 Inch Front / 5 Inch Rear Lowering Kit (1973-1987 C10 Pickup 2WD with 1.25 Inch Rotors)

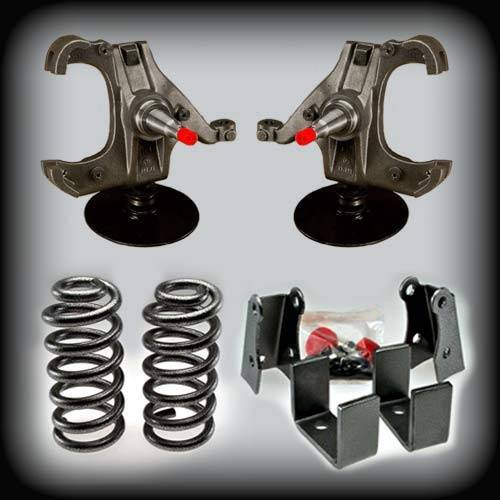

1973 – 1987 C10 Complete 5 Inch/5 Inch Kit (1.25″rotor)

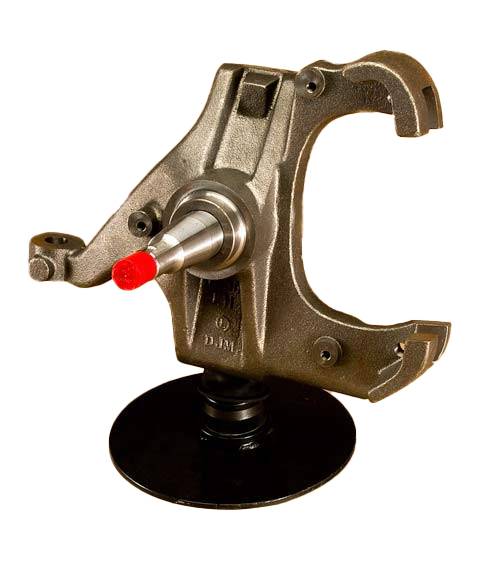

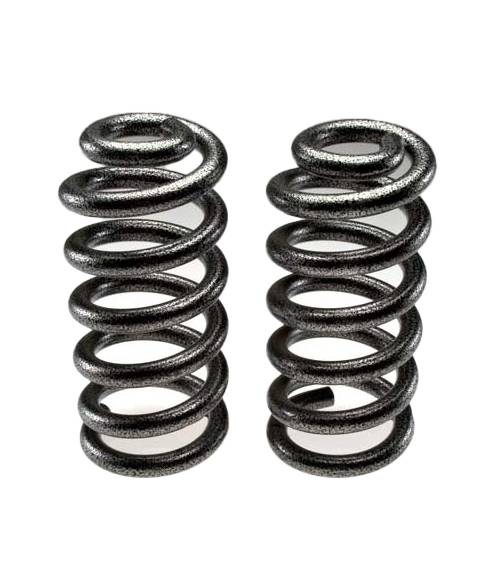

The good old drop spindle, as classic as the truck it’s self, sports a 3″ drop in the front. Whats important here is to be sure to measure the width of your brake rotor. You will have either a 1″ or 1.25″ rotor. If you have a 1″ rotor use (DJM2045L-5/5). Pair the spindles up with a set of 2" engineered DJM drop springs, combined you end up with about 5" of total drop in the front!

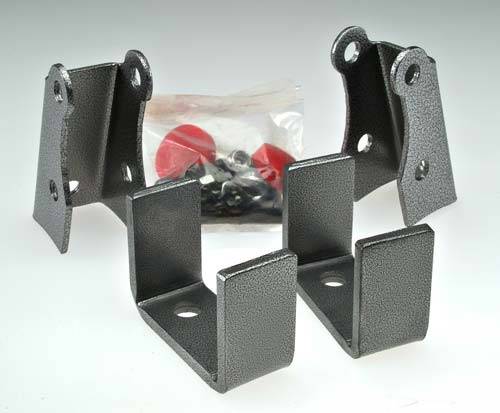

The rear is a simple flip kit where you move the axle from beneath the leaf spring to on top of the leaf spring. No “C-section” required on your C-10 because the frame has plenty of relief built in and even though you’ve “flipped it you still have plenty of travel! Tech Tip: If your U-bolts are in bad shape, a very real possibility on a 30 - 40+ year old truck, you may consider this kit DJM2045H-5/5LTD. Same as this kit with a flip kit that includes new U-bolts and leaf spring spring plates!

Recommended parts

• Shock number 1309
• Shock number 2100
