29133 | Rough Country 5 Inch Lift Kit Chevrolet Silverado 1500 / GMC Sierra 1500 | 2014-2019 | Premium N3 Shocks, Lifted N3 Struts

5 Inch Lift Kit Chevrolet Silverado 1500 / GMC Sierra 1500 | 2014-2019 | Premium N3 Shocks, Lifted N3 Struts

SKU: 29133

Pricing: $1,997.95

Description
Vehicle Applications
Components
Tires & Wheels
Details
Shipping
Documents

Description

What better way to deck out that brand new 2014-up GM 1500 you worked so hard for than with the aggressive stance and jaw-dropping ride height of Rough Country's brand-new 5-inch Suspension Lift for 2014 Chevy / GMC 1500 Pickups? This massive lift is designed to retain your stock track width! This affords your truck the ability to run up to an impressive 33-inch tire on factory 20-inch wheels, and gives you a nearly limitless choice in aftermarket wheels and tires that other kits just can't fit.

This kit ships with EVERYTHING you need to give your new truck the aggressive stance and capabilities it deserves; Stout upper strut spacers, a beefy front and rear skid plate, our Heavy Duty Front and Rear Crossmembers, and a set of differential and sway-bar drop brackets - all designed by our in-house Research and Development team with 100% laser-cut materials for the best possible fit on your vehicle.

Also included are a set of our Nitrogen charged N3 Shocks! Offering the best in balanced performance for on and off-road use, these shocks feature a 10-stage velocity sensitive valving custom tuned for this specific application. That means these shocks are specifically valved for use with this vehicle and lift combo, giving you unparalleled performance for any driving situation.

Features

Increased ground clearance.
Maintains factory track width.
Can run factory 20-inch wheels.
Fabricated blocks are stronger and offer a longer lifespan than cast blocks.

Optional N3 Loaded Struts

Includes pre-loaded coil
Maintains smooth, factory-like ride
Increased ground clearance
Engineered for lifted applications
Infinitely Variable Damping
Leak-proof piston seal
Massive 1 3/8in Bore
Silver powder coat finish
3-year Manufacturer's Warranty

Optional V2 Monotube Shocks

Monotube design
Internal floating piston
Nitrogen-charged
46mm high-flow piston
Fast heat dissipation
36kN Tensile Strength
Mounts inverted
T6061 brushed aluminum body
3-year Manufacturer's Warranty

Fitment Notes

Requires cutting and drilling.
Does NOT fit Hybrid eAssist models.
Does NOT fit GMC Denali models with Magnetic Ride Control.
If wider than 33x12.50 tires are used, offset wheels will be required and trimming may be required.
If truck is equipped with a mass damper on the front differential, the damper must be removed.

Specifications

Est. Install Time: 8-10 hours

Vehicle Applications

2014 - 2018 GMC Sierra 1500 4WD
2014 - 2018 Chevy Silverado 1500 4WD
2019 Chevy Silverado 1500 LD 4WD

Fitment Notes
Requires cutting and drilling.
Does NOT fit Hybrid eAssist models.
Does NOT fit GMC Denali models with Magnetic Ride Control.
If wider than 33x12.50 tires are used, offset wheels will be required and trimming may be required.
If truck is equipped with a mass damper on the front differential, the damper must be removed.

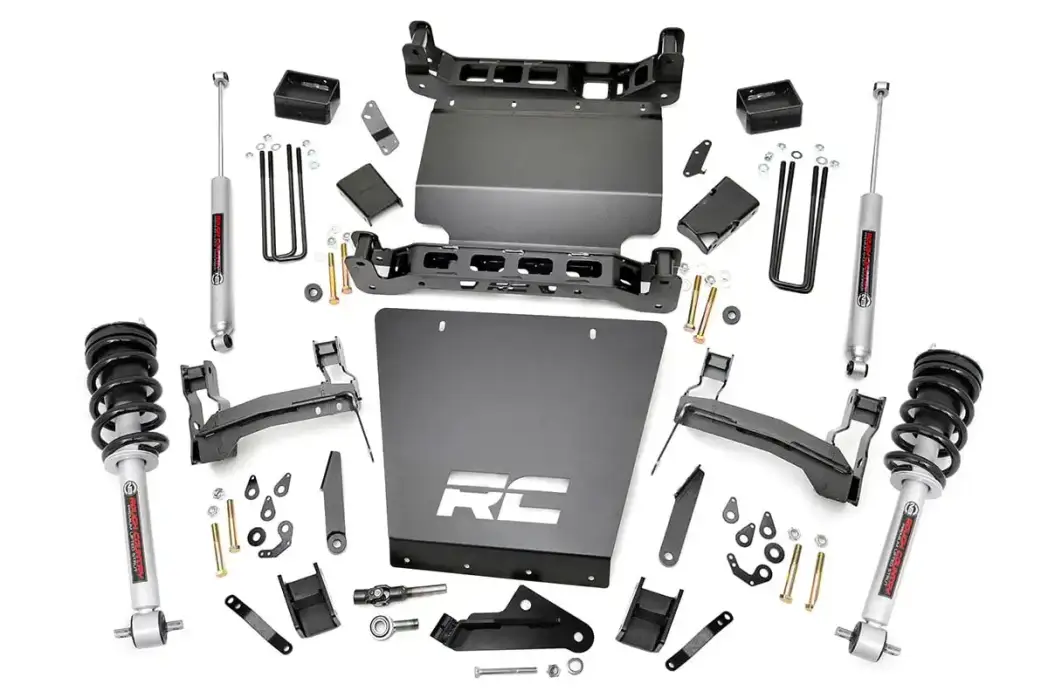

Components

Front:
Upper strut spacers
Optional: [+$220] - (2) Premium N3 Series Lifted Struts
Front crossmember
Rear crossmember
Control arm drop brackets
Differential drop brackets
Sway-bar drop brackets
Steering extension
Steering brace
Front skid plate
Lower skid plate
Hardware

Rear:
Fabricated lift blocks
Brake line relocation brackets
U-bolts
Hardware

Shocks:
(2) Shocks [rear]

Tires & Wheels

285/70R1717x8.56x5.5+0-Mild
285/70R1717x8.56x5.5+1-Mild
295/70R1717x8.56x5.5+0-Moderate
295/70R1717x8.56x5.5+1-Mild
305/70R1717x8.56x5.5+0-Moderate
305/70R1717x8.56x5.5+1-Moderate
33x12.50R1717x8.56x5.5+0-Moderate
33x12.50R1717x8.56x5.5+1-Moderate
285/70R1717x96x5.5+0-Mild
285/70R1717x96x5.5+1-Mild
285/70R1717x96x5.5+18-Mild
285/70R1717x96x5.5+20-Mild
295/70R1717x96x5.5+0-Moderate
295/70R1717x96x5.5+1-Mild
295/70R1717x96x5.5+18-Mild
295/70R1717x96x5.5+20-Mild
305/70R1717x96x5.5+0-Moderate
305/70R1717x96x5.5+1-Moderate
305/70R1717x96x5.5+18-Mild
305/70R1717x96x5.5+20-Mild
33x12.50R1717x96x5.5+0-Moderate
33x12.50R1717x96x5.5+1-Moderate
33x12.50R1717x96x5.5+18-Mild
33x12.50R1717x96x5.5+20-Mild
285/65R1818x8.56x5.5+0-Mild
285/75R1818x8.56x5.5+0-Mild
295/70R1818x8.56x5.5+0-Moderate
295/70R1818x8.56x5.5+1-Mild
33x12.50R1818x8.56x5.5+0-Moderate
33x12.50R1818x8.56x5.5+1-Moderate
285/65R1818x96x5.5+0-Mild
285/65R1818x96x5.5+1-Mild
285/65R1818x96x5.5+18-Mild
285/65R1818x96x5.5+20-Mild
33x12.50R1818x96x5.5+0-Moderate
33x12.50R1818x96x5.5+1-Moderate
33x12.50R1818x96x5.5+18-Mild
33x12.50R1818x96x5.5+20-Mild
295/60R2020x106x5.5-18Trimming Required Moderate
295/60R2020x106x5.5-19Trimming Required Moderate
305/55R2020x106x5.5-18Minor Trimming Moderate
305/55R2020x106x5.5-19Minor Trimming Moderate
33x12.50R2020x106x5.5-18Minor Trimming Moderate
33x12.50R2020x106x5.5-19Minor Trimming Moderate
295/60R2020x96x5.5+0-Moderate
295/60R2020x96x5.5+1-Mild
295/60R2020x96x5.5+18-Mild
295/60R2020x96x5.5+20-Mild
305/55R2020x96x5.5+0-Moderate
305/55R2020x96x5.5+1-Moderate
305/55R2020x96x5.5+12-Mild
305/55R2020x96x5.5+18-Mild
305/55R2020x96x5.5+20-Mild
33x12.50R2020x96x5.5+0-Moderate
33x12.50R2020x96x5.5+1-Moderate
33x12.50R2020x96x5.5+12-Moderate
33x12.50R2020x96x5.5+18-Mild
33x12.50R2020x96x5.5+20-Mild
305/45R2222x106x5.5-18-Moderate
305/45R2222x106x5.5-19-Moderate
33x12.50R2222x106x5.5-18Minor Trimming Moderate
33x12.50R2222x106x5.5-19Minor Trimming Moderate
295/70R17Factory 176x5.5--Mild
285/65R18Factory 186x5.5--Mild
295/55R20Factory 206x5.5-0.25 Spacer Mild
