54431 | Rough Country 3 Inch Lift Kit with Premium N3 Struts / Rear Shocks (2009-2013 F150 4WD)
2009-2013 Ford F150 Pickup 4WD
Description
3 Inch Lift Kit | Aluminum Control Arms | Premium N3 Struts / Premium N3 Rear Shocks | Ford F-150 4WD (2009-2013)
Rough Country's 3in Bolt-On Kit offers easy installation and aggressive good looks at an incredible value. Take your truck to new heights with this excellent option for 09 and up F-150 pickups.
This kit features a set of high-quality, forged aluminum Upper Control Arms designed to make alignment adjustments easier and durable rubber bushings. These arms are designed to promote a factory-like geometry by keeping the ball joint at optimum angles after lifting. This design allows for an improved, greater range of motion from the ball-joint, with less stress, wear and tear.
Rough Country’s 3-inch Bolt-On Kit features N3 Nitrogen-charged shocks, giving your truck incredible ride-quality both on and off-road. Also included are a set of durable lifted struts and fabricated rear blocks to provide lift height from front to rear. Once installed, this kit gives your truck plenty of ride height for up to 34in tires while offering a clean, level look from front to rear. Retain your stock wheels with this kit when you use Rough Country’s 0.25-inch wheel spacer.
This all-inclusive kit comes with everything you need, and installation is a piece of cake compared to other kits on the market! Featuring a 100% bolt-on installation process that requires zero cutting or drilling, this kit can be installed using common tools in a home garage, and allows the truck to be returned to stock at any time if so desired. Best of all this kit features Rough Country’s Lifetime Replacement Warranty.
Features
- Easy Bolt-On installation.
- Includes loaded struts for no-fuss installation.
- No Cutting or Drilling required!
- Includes New forged aluminum upper control arms.
- Control arms keep ball joints at optimum angles for less wear and tear.
- Control arms include durable rubber bushings for enhanced durability.
- Increased ground clearance.
- Levels the front and rear of the truck.
- Can be returned to stock.
Notes - Important
- Does NOT fit regular/standard cab models.
- SKU: 51013 does NOT work on models with stock ride height over 22in. [measured from center of wheel to the bottom of the fender]
- Spacer kit '51013' does NOT fit on trucks with FX4, Snow Prep, and other off-road packages that modify front strut assemblies will likely measure over 22in and will not work with this kit.
- Designed to work with aluminum factory lower control arms. Replacement control arms or replacement factory steel control arms may interfere with the CV boot.
- Models retaining factory wheels are advised to run no wider than a 11.5" wide tire.
- For additional clearance on models equipped with aggressive side wall tires a 0.25 wheel spacer is recommended.
Specs
Est. Install Time | 5-6 hours |
---|
Application List
Start | End | Make | Model | Submodel | Drive |
---|---|---|---|---|---|
2009 | 2013 | Ford | F-150 | FX4 | 4WD |
2010 | 2012 | Ford | F-150 | Harley-Davidson Edition | AWD |
2009 | 2013 | Ford | F-150 | King Ranch | 4WD |
2009 | 2013 | Ford | F-150 | Lariat | 4WD |
2011 | 2011 | Ford | F-150 | Lariat Limited | 4WD |
2013 | 2013 | Ford | F-150 | Limited | 4WD |
2009 | 2013 | Ford | F-150 | Platinum | 4WD |
2009 | 2013 | Ford | F-150 | STX | 4WD |
2009 | 2013 | Ford | F-150 | XL | 4WD |
2009 | 2013 | Ford | F-150 | XLT | 4WD |
2009 | 2013 | Ford | F-150 | FX4 | 4WD |
2010 | 2012 | Ford | F-150 | Harley-Davidson Edition | AWD |
2009 | 2013 | Ford | F-150 | King Ranch | 4WD |
2009 | 2013 | Ford | F-150 | Lariat | 4WD |
2011 | 2011 | Ford | F-150 | Lariat Limited | 4WD |
2013 | 2013 | Ford | F-150 | Limited | 4WD |
2009 | 2013 | Ford | F-150 | Platinum | 4WD |
2009 | 2013 | Ford | F-150 | STX | 4WD |
2009 | 2013 | Ford | F-150 | XL | 4WD |
2009 | 2013 | Ford | F-150 | XLT | 4WD |

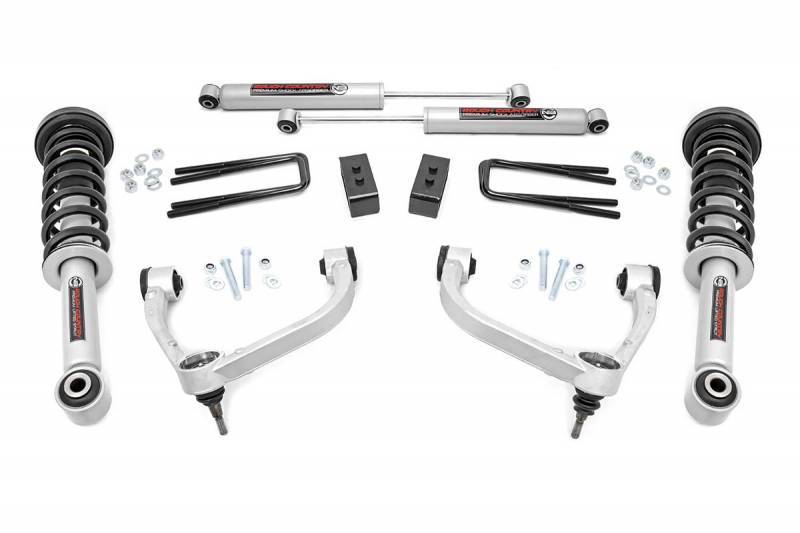

Components
(2) Upper control arms
(2) Premium N3 Loaded Struts
REAR
(2) Lift Blocks
(4) U-bolts
Hardware
SHOCKS
(2) Premium N3 series [Rear]
Shocks
Improve your on and off-road ride quality with Rough Country's premium N3 shocks! These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body, this shock offers up to 36kN Tensile Strength for a long lifespan of impressive vibration dampening. Features natural rubber bushings and an eye-catching metallic silver paint.
Features
10-Stage Variable Valving>High Pressure Nitrogen Charged
35mm Piston
Chromed Hardened 18mm Piston Rod
54mm Shock Body to dissipate heat faster
36kN Tensile Strength
Spring Loaded Piston Rod Seal
Military Spec. Fluid Rated To -40 deg C
Rubber bushings for better absorption
Metallic Silver Paint
3-year Manufacturer's Warranty
Tires & Wheels
Tire | Wheel | Bolt Pattern | Offset | Note |
---|---|---|---|---|
33x12.50R17 | 17x8.5 | 6x135 | +0 | Minor Trimming |
295/70R17 | 17x8.5 | 6x135 | +0 | - |
285/70R17 | 17x8.5 | 6x135 | +0 | - |
33x12.50R17 | 17x8.5 | 6x135 | +1 | Minor Trimming |
295/70R17 | 17x8.5 | 6x135 | +1 | - |
285/70R17 | 17x8.5 | 6x135 | +1 | - |
33x12.50R17 | 17x9 | 6x135 | +0 | Minor Trimming |
315/70R17 | 17x9 | 6x135 | +0 | - |
305/70R17 | 17x9 | 6x135 | +0 | - |
295/70R17 | 17x9 | 6x135 | +0 | - |
285/75R17 | 17x9 | 6x135 | +0 | - |
285/70R17 | 17x9 | 6x135 | +0 | - |
33x12.50R17 | 17x9 | 6x135 | +1 | Minor Trimming |
315/70R17 | 17x9 | 6x135 | +1 | - |
305/70R17 | 17x9 | 6x135 | +1 | - |
295/70R17 | 17x9 | 6x135 | +1 | - |
285/75R17 | 17x9 | 6x135 | +1 | - |
285/70R17 | 17x9 | 6x135 | +1 | - |
33x12.50R18 | 18x8.5 | 6x135 | +0 | Minor Trimming |
305/60R18 | 18x8.5 | 6x135 | +0 | - |
285/75R18 | 18x8.5 | 6x135 | +0 | - |
285/65R18 | 18x8.5 | 6x135 | +0 | - |
33x12.50R18 | 18x8.5 | 6x135 | +1 | Minor Trimming |
305/60R18 | 18x8.5 | 6x135 | +1 | - |
285/75R18 | 18x8.5 | 6x135 | +1 | - |
285/65R18 | 18x8.5 | 6x135 | +1 | - |
33x12.50R18 | 18x9 | 6x135 | +0 | Minor Trimming |
305/60R18 | 18x9 | 6x135 | +0 | - |
285/75R18 | 18x9 | 6x135 | +0 | - |
285/65R18 | 18x9 | 6x135 | +0 | - |
33x12.50R18 | 18x9 | 6x135 | +1 | Minor Trimming |
305/60R18 | 18x9 | 6x135 | +1 | - |
285/75R18 | 18x9 | 6x135 | +1 | - |
285/65R18 | 18x9 | 6x135 | +1 | - |
33x12.50R20 | 20x9 | 6x135 | +0 | Minor Trimming |
305/55R20 | 20x9 | 6x135 | +0 | - |
295/60R20 | 20x9 | 6x135 | +0 | Minor Trimming |
33x12.50R20 | 20x9 | 6x135 | +1 | Minor Trimming |
305/55R20 | 20x9 | 6x135 | +1 | - |
295/60R20 | 20x9 | 6x135 | +1 | Minor Trimming |
33x12.50R20 | 20x10 | 6x135 | -19 | - |
305/55R20 | 20x10 | 6x135 | -19 | - |
265/60R20 | 20x10 | 6x135 | -19 | - |
33x12.50R20 | 20x10 | 6x135 | -18 | - |
305/55R20 | 20x10 | 6x135 | -18 | - |
265/60R20 | 20x10 | 6x135 | -18 | - |
33x12.50R22 | 22x10 | 6x135 | -19 | - |
33x11.50R22 | 22x10 | 6x135 | -19 | - |
295/55R22 | 22x10 | 6x135 | -19 | - |
295/50R22 | 22x10 | 6x135 | -19 | - |
295/45R22 | 22x10 | 6x135 | -19 | - |
33x12.50R22 | 22x10 | 6x135 | -18 | - |
33x11.50R22 | 22x10 | 6x135 | -18 | - |
295/55R22 | 22x10 | 6x135 | -18 | - |
295/50R22 | 22x10 | 6x135 | -18 | - |
295/45R22 | 22x10 | 6x135 | -18 | - |
