54531 | Rough Country 3 Inch Lift Kit For Ford F-150 4WD (2014-2020) | Control Arm Finish Aluminum, N3 Struts With N3 Rear Shocks

3 Inch Lift Kit For Ford F-150 4WD (2014-2020) | Control Arm Finish Aluminum, N3 Struts With N3 Rear Shocks

54531
Pricing: $1,229.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

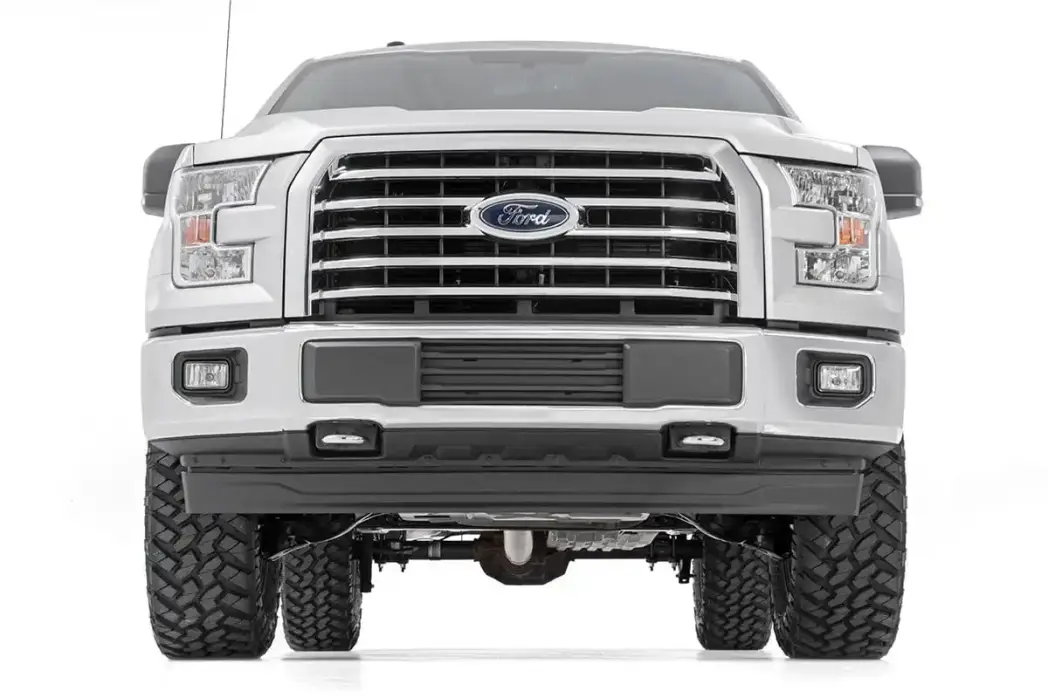

Rough Country's 3in Bolt-On Kit offers easy installation and aggressive good looks at an incredible value. Take your truck to new heights with this excellent option for 14 and up F-150 pickups.This kit features a set of high-quality, Forged Aluminum Upper Control Arms designed to make alignment adjustments easier and durable rubber bushings. These arms are designed to promote a factory-like geometry by keeping the ball joint at optimum angles after lifting.

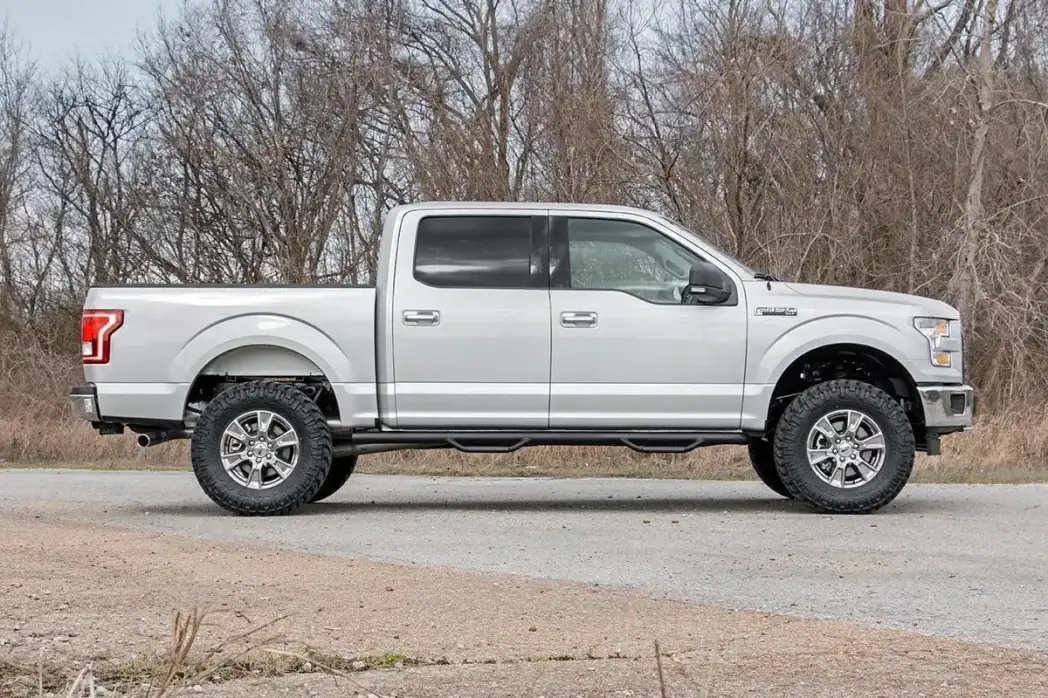

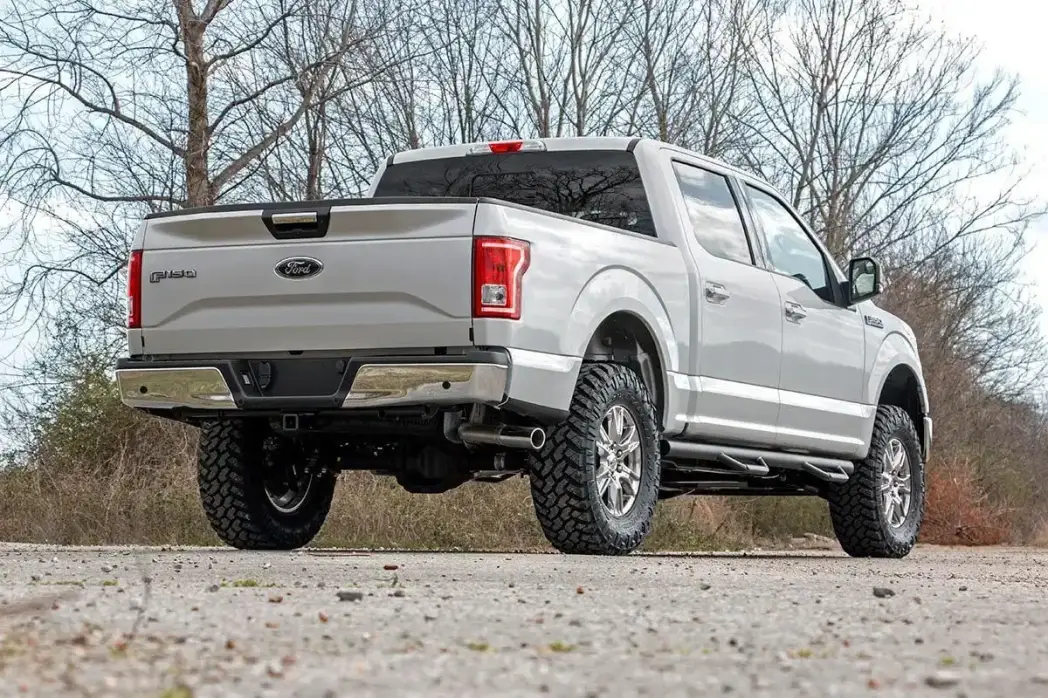

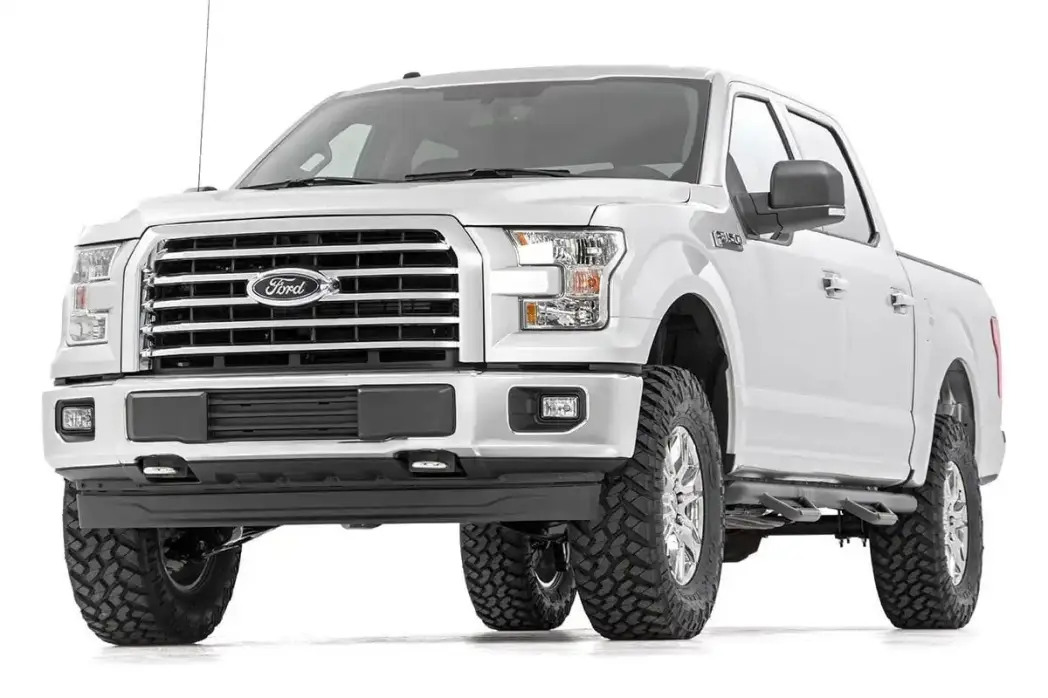

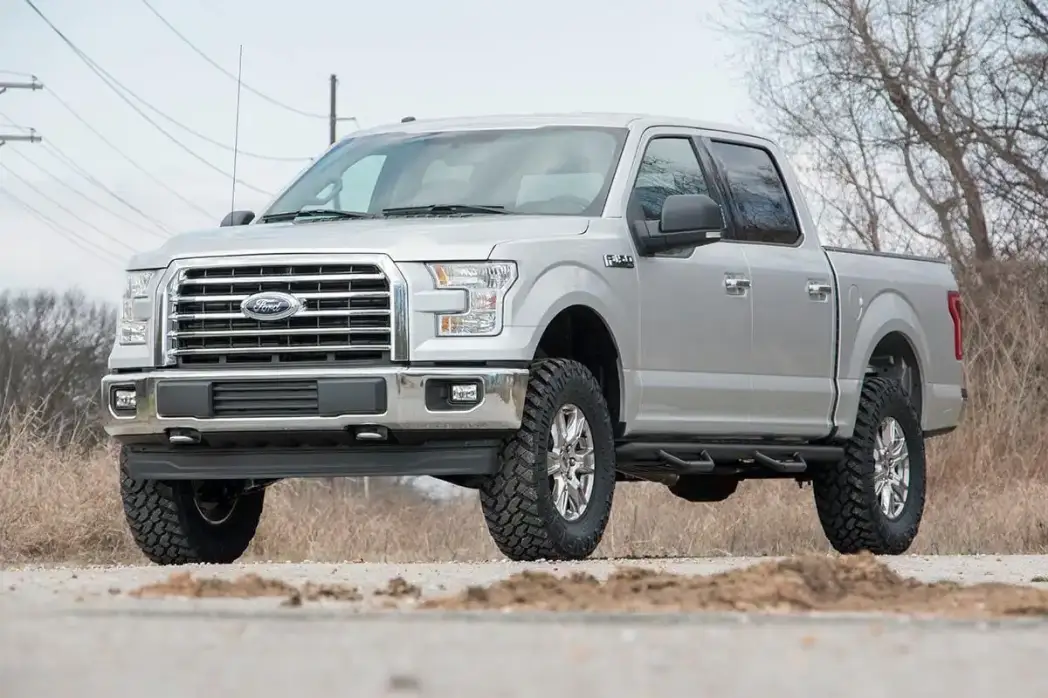

This design allows for an improved, greater range of motion from the ball-joint, with less stress, wear and tear.Rough Country’s 3-inch Bolt-On Kit features N3 Lifted Struts and N3 Nitrogen-charged shocks, giving your truck incredible ride-quality both on and off-road. Also included are a set of rear blocks to provide lift height in the rear. Once installed, this kit gives your truck plenty of ride height for up to 34in tires while offering a clean, level look from front to rear.

Retain your stock wheels with this kit when you use Rough Country’s 0.25-inch wheel spacer.This all-inclusive kit comes with everything you need, and installation is a piece of cake compared to other kits on the market! Featuring a 100% bolt-on installation process that requires zero cutting or drilling, this kit can be installed using common tools in a home garage, and allows the truck to be returned to stock at any time if so desired. Best of all this kit features Rough Country’s Lifetime Replacement Warranty.

Features

Rough Country's 3in Bolt-On Kit offers easy installation and aggressive good looks at an incredible value. Take your truck to new heights with this excellent option for 14 and up F-150 pickups. This kit features a set of high-quality, Forged Aluminum Upper Control Arms designed to make alignment adjustments easier and Clevite rubber bushings for enhanced durability.

  • Easy Bolt-On installation
  • No Cutting or Drilling required!
  • Includes New forged aluminum upper control Arms
  • Control arms keep ball joints at optimum angles for less wear and tear
  • Control arms include durable rubber bushings for enhanced durability
  • Increased ground clearance
  • Levels the front and rear of the truck
  • Can be returned to stock
  • Retain your factory wheels by using our 0.25-inch wheel spacers [SKU: 1065].
  • Lifetime Replacement Warranty*

Optional N3 Loaded Struts

  • Includes pre-loaded coil
  • Maintains smooth, factory-like ride
  • Increased ground clearance
  • Engineered for lifted applications
  • Infinitely Variable Damping
  • Leak-proof piston seal
  • Massive 1 3/8in Bore
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty

Optional V2 Monotube Shocks

  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty

Optional Vertex

  • 8-Stage Adjustable Damping
  • Monotube Design
  • Nitrogen-charged
  • Massive 2.5in Piston
  • 22mm Chrome-Hardened Piston Rod
  • 3-Stage Seal System
  • Heat-Treated, Alloy Bearing
  • Honed Steel Body
  • 3-year Manufacturer's Warranty

Fitment Notes

  • Does NOT fit regular/standard cab models.
  • Does NOT fit seven lug models.
  • SKU: 51014 does NOT work on models with stock ride height over 22in. [measured from center of wheel to the bottom of the fender]
  • Spacer kit '51014' does NOT fit on trucks with FX4, Snow Prep, and other off-road packages that modify front strut assemblies will likely measure over 22in and will not work with this kit.
  • Models retaining factory wheels are advised to run no wider than a 11.5" wide tire.
  • For additional clearance on models equipped with aggressive side wall tires a 0.25 wheel spacer is recommended.

Application List

2014 - 2020 Ford F-150 4WD

Fitment Notes
Does NOT fit regular/standard cab models.
Does NOT fit seven lug models.
SKU: 51014 does NOT work on models with stock ride height over 22in. [measured from center of wheel to the bottom of the fender]
Spacer kit '51014' does NOT fit on trucks with FX4, Snow Prep, and other off-road packages that modify front strut assemblies will likely measure over 22in and will not work with this kit.
Models retaining factory wheels are advised to run no wider than a 11.5" wide tire.
For additional clearance on models equipped with aggressive side wall tires a 0.25 wheel spacer is recommended.

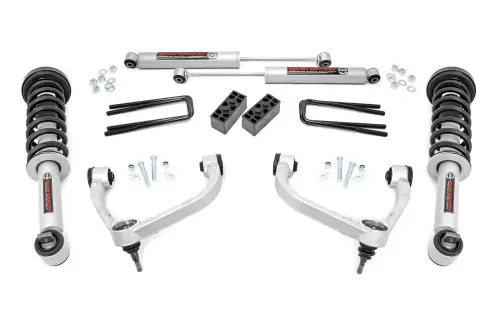

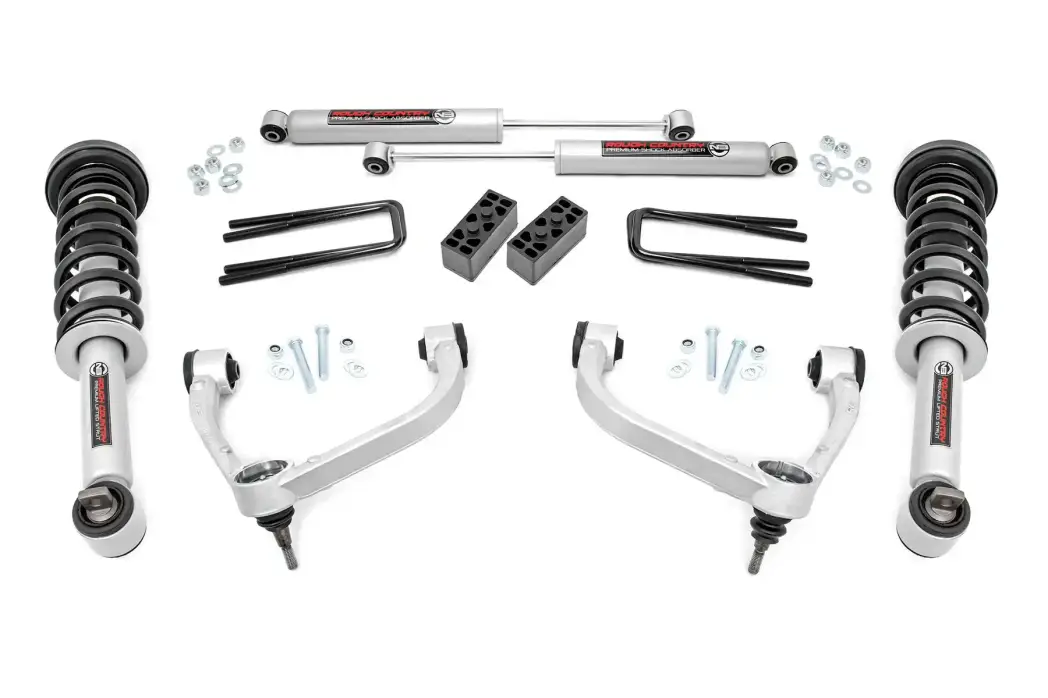

Component List

Front:
(2) Forged Upper Control Arms

Rear:
(2) Lift Blocks
(4) U-bolts
Hardware

Shocks:
(2) Struts [Front]
(2) Shocks series [Rear]

Tires & Wheels

285/65R18 18x8.5 6x135 +0 - Moderate
285/65R18 18x8.5 6x135 +1 - Moderate
305/60R18 18x8.5 6x135 +0 - Moderate
305/60R18 18x8.5 6x135 +1 - Moderate
285/65R18 18x9 6x135 +0 - Moderate
285/65R18 18x9 6x135 +1 - Moderate
285/65R18 18x9 6x135 -12 - Moderate
305/60R18 18x9 6x135 +0 - Moderate
305/60R18 18x9 6x135 +1 - Moderate
305/60R18 18x9 6x135 -12 - Moderate
33x12.50R18 18x9 6x135 +0 - Moderate
33x12.50R18 18x9 6x135 +1 - Moderate
33x12.50R18 18x9 6x135 -12 - Moderate
295/60R20 20x10 6x135 -18 Minor Trimming Wide
295/60R20 20x10 6x135 -19 Minor Trimming Wide
295/60R20 20x10 6x135 -24 Minor Trimming Wide
295/60R20 20x10 6x135 -25 Minor Trimming Wide
305/55R20 20x10 6x135 -18 Minor Trimming Wide
305/55R20 20x10 6x135 -19 Minor Trimming Wide
305/55R20 20x10 6x135 -24 Minor Trimming Wide
305/55R20 20x10 6x135 -25 Minor Trimming Wide
33x12.50R20 20x10 6x135 -18 Minor Trimming Wide
33x12.50R20 20x10 6x135 -19 Minor Trimming Wide
33x12.50R20 20x10 6x135 -24 Minor Trimming Wide
33x12.50R20 20x10 6x135 -25 Minor Trimming Wide
305/55R20 20x12 6x135 -44 Trimming Required Wide
33x12.50R20 20x12 6x135 -44 Trimming Required Wide
265/60R20 20x9 6x135 -12 - Moderate
295/60R20 20x9 6x135 +0 Minor Trimming Moderate
295/60R20 20x9 6x135 +1 Minor Trimming Moderate
295/60R20 20x9 6x135 +18 - Moderate
295/60R20 20x9 6x135 +20 - Moderate
295/60R20 20x9 6x135 -12 Minor Trimming Moderate
305/55R20 20x9 6x135 +0 - Moderate
305/55R20 20x9 6x135 +1 - Moderate
305/55R20 20x9 6x135 +18 - Moderate
305/55R20 20x9 6x135 +20 - Moderate
305/55R20 20x9 6x135 -12 - Moderate
33x12.50R20 20x9 6x135 +0 - Moderate
33x12.50R20 20x9 6x135 +1 - Moderate
33x12.50R20 20x9 6x135 +18 - Moderate
33x12.50R20 20x9 6x135 +20 - Moderate
33x12.50R20 20x9 6x135 -12 - Moderate
305/45R22 22x10 6x135 -18 - Wide
305/45R22 22x10 6x135 -19 - Wide
33x12.50R22 22x10 6x135 -18 Minor Trimming Wide
33x12.50R22 22x10 6x135 -19 Minor Trimming Wide
33x12.50R22 22x10 6x135 -24 Minor Trimming Wide
33x12.50R22 22x10 6x135 -25 Minor Trimming Wide
305/45R22 22x12 6x135 -44 - Wide
33x12.50R22 22x12 6x135 -44 Trimming Required Wide

Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 104.0 lbs.
  • W14.0000” x H8.0000” x L30.0000”
