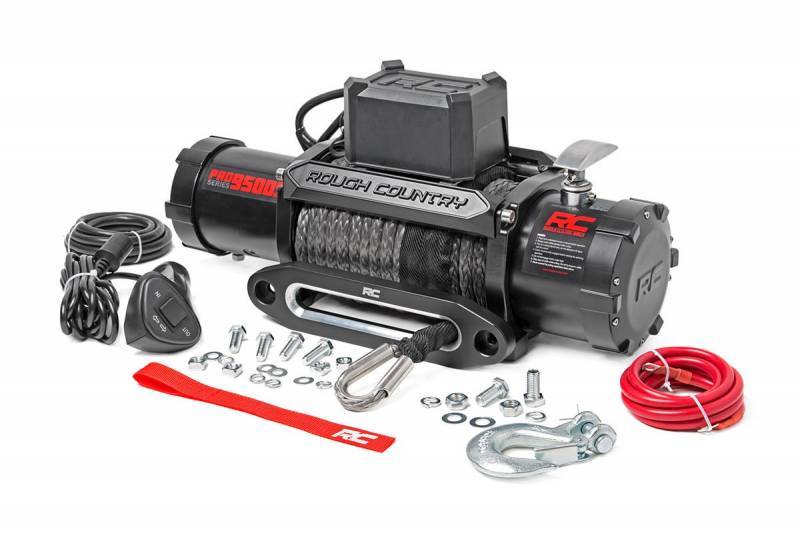

PRO9500S | 9500lb Pro Series Electric Winch | Synthetic Rope

Universal
4 Bolt Pattern, 4.5 in X 10 in

PRO9500S
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
Pricing: $559.95
Qty:

Description

Rough Country's PRO Winch Systems offer professional recovery at an incredible price! Our high-powered, high-quality recovery solutions are IP67 Waterproof and sure to come in handy when the situation gets a little murky. Water, mud, dirt, and sand are no match for Rough Country's rugged new design. Featuring an IP67 Waterproof and dustproof rating, Rough Country's PRO Winch Systems are built to ward off the elements, providing reliable recovery every time to get you back home safely.

Each unit features Series Wound motors which are extremely efficient at higher speeds and less prone to overheating compared to Permanent Magnet motors. Better still, Rough Country Recovery Systems utilize a 3-stage planetary gear train boasting a 265:1 gear ratio; allowing enormous torque in such a small housing. All Rough Country PRO winch systems include a replaceable Clevis hook for convenience.

FEATURES
Easy bolt-on installation
IP67 Waterproof and Dustproof rating
Powerful 5.5 hp motor
Synthetic rope yields the maximum in strength to weight ratio.
Synthetic rope is stronger than steel cables.
Synthetic rope does not store energy under stress and is safer in the event of breakage.
Includes hawse fairlead

SPECS
SKU PRO9500S
Est. Install Time 1-2 hours
Rated Line Pull 9500 lbs. (4300 kgs)
Gear Train 3 Stage Planetary
Gear Reduction Ratio 265:1
Motor Series Wound 5.5hp/4.0kw
Cable 3/8 in x 85 ft Synthetic Rope
Clutch Sliding Ring Gear
Braking Action Automatic In-The-Drum
Drum Size (Diameter / Length) 2.5 in / 8.8 in
Bolt Pattern 4 Bolt Pattern, 4.5 in x 10 in
Overall Dimension (L / W / H) 21.3 in x 6.3 in x 8.6 in

Vehicle Applications

Universal - Check Specification Before Ordering

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 63.0 lbs.
  • W13.0000” x H12.0000” x L23.0000”
  • $25.00
  • Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)

Documents
