69-1242 | ReadyLift 4.5 Inch Suspension SST Lift Kit (2014-2018 Ram 2500 Pickup)

2014-2018 Ram 2500 Pickup 4WD

69-1242
Pricing: $1,104.94
Qty:
Free Ground Shipping | Exclusions Apply*

Description

4.5''F / 2.5''R SST LIFT KIT - DODGE RAM 2500 4WD 2014-2018

ReadyLIFT Dodge Ram SST Lift Kits are the fastest, safest, least expensive way to lift your 2014-2018 Dodge Ram 2500 4WD truck without compromising the factory ride or handling. Made with durable black e-coated steel, ReadyLIFT 4.5'' SST Lift coil spacers will not deteriorate or decrease ride height over time and allow you to retain the use of your factory front coil spring. ReadyLIFT provides a great bolt-on lift solution for getting maximum bolt on lift suitable for running negative offset wheels with up to a 37" tall tire. The 69-1242 4.5" SST Lift Kit provides 4.5" of front lift and 2.5" of rear lift with heavy-duty fabricated steel coil spring spacers. This kit includes necessary front radius arm drop brackets and replacement front track bar relocation bracket to ensure perfect suspension geometry to maintain that factory ride. Kit also includes front/rear shock extensions, bump stop extensions, longer sway bar end links and front sway bar frame side spacers. 69-1242 is a great no-modifications required lift kit that will get your new 2014-18 Ram 2500 HD 4WD up nice and high while keeping the factory ride and handling characteristics.

  • Max Lift: 4.5"
  • Maximum Tire Dia: 37"
  • 4WD Only
  • 4.5" Front Lift - 2.5" Rear Lift
  • 2014-UP 2500 4WD only.
  • Not compatible with Auto-Ride.
  • For use ONLY with the new radius arm suspension trucks with rear coil springs.
  • For Diesel Engine trucks only.

NOTE:
Not for use with Power Wagon or snow prep package or ambulance package equipped vehicles.

Application List

2014-2018 Ram 2500 Pickup 4wd

NOTE: This kit will NOT fit 2013 and older model 2500 trucks with the older suspension design.
NOTE: This kit will NOT work with trucks equipped with air Auto-Ride. Rear coil spring only.
NOTE: Designed for use with Diesel engine trucks. Gas engine trucks will sit slightly nose high.
NOTE: Not Compatible with Power Wagon.

Tires & Wheels

37" Maximum tire diameter
37x12.50 for no rub on a 9" wide wheel with 0 offset
18" - 37X12.5R18
20" - 37X12.5R20
22" - 325/60R22

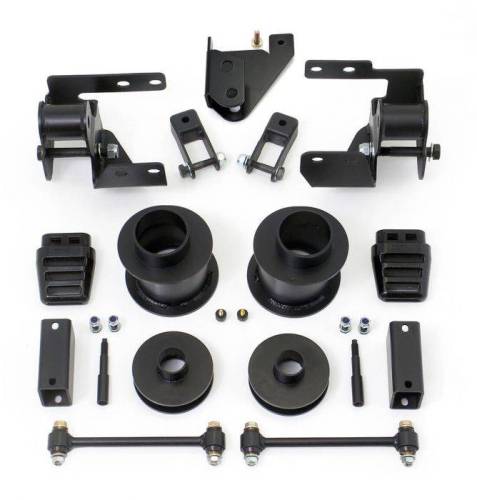

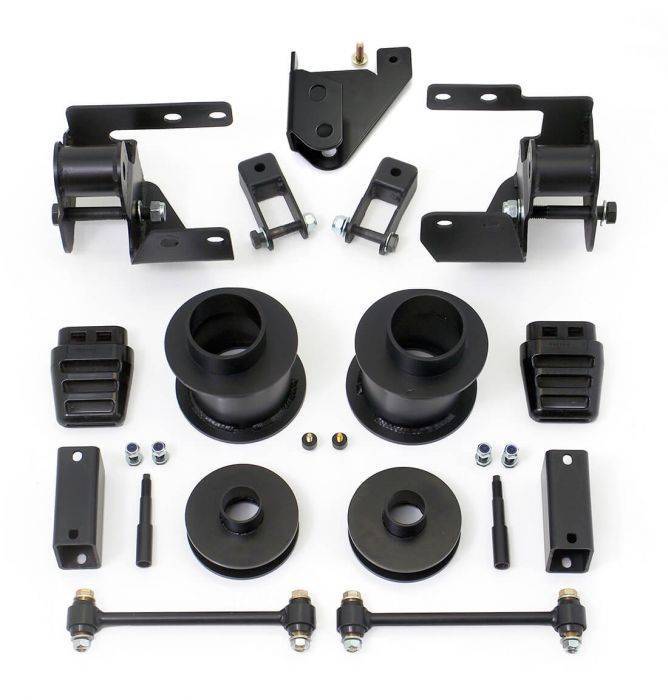

Components

Two front coil spring spacers.
Two rear coil spring spacers.
Two radius arm drop brackets.
Two front shock extensions.
Two rear shock stem extensions.
Two extended front bump stops.
One front track bar bracket.
Two front sway bar mount spacers.
All necessary hardware and instructions.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 42.0 lbs.
  • W12.0000” x H8.0000” x L18.0000”
  • Free Ground Shipping | Exclusions Apply*

Documents
