69-2736 | ReadyLift 3.5 Inch SST Suspension Lift Kit (2017-2022 F250, F350 Super Duty | 2 Piece Drive Shaft)

2017-2022 Ford F250 Super Duty 4WD | 2017-2022 Ford F350 Super Duty 4WD | 2-PC DRIVE SHAFT ONLY

69-2736
Pricing: $909.94
Qty:
Free Ground Shipping | Exclusions Apply*

Description

3.5" SST LIFT KIT - FORD SUPER DUTY F250/F350 4WD (2-PC DRIVE SHAFT ONLY) 2017-2022

ReadyLIFT Suspension has engineered a 3.5" lift kit made to fit the 2017-2022 Ford F250/F350 SuperDuty 4WD trucks with a two-piece drive shaft. These new 3.5" lift kits allow for wheel and tire combinations up to 37" while keeping the smooth OEM ride and drivability. This is a complete lift kit includes 4" OEM-equivalent rear blocks with integrated bump stop landings, 3.5" coil spring extensions with sound isolators, an OEM-style panhard drop bracket, front bump stops OEM shock extension brackets, a pair of radius arm drop brackets, and all needed hardware. When used with the maximum size tires, the F250 truck body is raised over 6".

ReadyLIFT Smart Suspension Technology is used to make this kit very user-friendly to install, requiring no cutting or drilling. Like all other ReadyLIFT kits, the F250/F350 3.5" SST Lift Kit is guaranteed for life against manufacturing defects.

NOTE:
For use with trucks with a two-piece drive shaft.
The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs.
Use of this type of air bag system will void all block warranties and can cause failure of the block bump stop tang.

2020-22 MY Super Duty may sit slightly taller in the rear than prior model years due block height variations from the Ford factory.
The additional rake works well visually with the vehicle's body lines.
Not compatible with TREMOR editions.

Application List

2017-2022 Ford F-250 Super Duty 4wd
2017-2022 Ford F-350 Super Duty 4wd

Tires & Wheels

Recommended tire size: 37" - 12.5"
Recommended wheel: 17" and up x 9" wide, +25 offset / 6" backspacing (minor trimming of the front valance may be necessary)

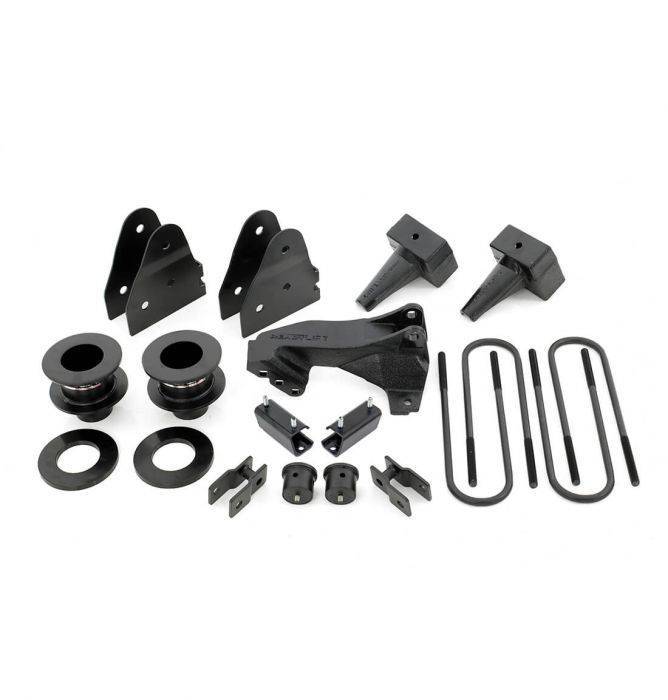

Components

Two coil spring spacers with poly sound isolators
Two front shock extensions.
Radius arm drop brackets
Two front sway bar mount spacers.
One front track bar relocation bracket
Two OEM style cast rear lift blocks with longer u-bolts and hardware.
Two bump stop extensions.
Extended length front brake line brackets.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 82.0 lbs.
  • W20.0000” x H18.0000” x L28.0000”
  • Free Ground Shipping | Exclusions Apply*
