69-5420 | ReadyLift 2 Inch SST Suspension Lift Kit (2015-2021 Tundra TRD Pro Plus)

2015-2021 Toyota Tundra TRD PRO PLus

69-5420
Pricing: $1,429.94
Qty:
Free Ground Shipping | Exclusions Apply*

Description

2" SST LIFT KIT - TOYOTA TRD PRO PLUS 2 2015-2021

ReadyLIFT TRD Pro Plus 2" Lift Kit now available For 2015-2021 Toyota Tundra TRD Pro Trucks! ReadyLIFT is proud to offer a popular SST Lift kit for the new TRD Pro trucks.
Our TRD Pro Plus 2 Lift Kit provides 2" of front lift to the TRD Pro suspension that comes factory with 2" of lift. This equates to a 4" lift height on standard Tundra trucks.

The overwhelming popularity of our standard 4" SST Lift Kits fueled the necessity to engineer a similar proven popular kit for the TRD Pro. Note: For use only on 2015-2021 Tundra TRD Pro w/ Bilstein/Fox TRD Pro shocks.
The ReadyLIFT 69-5420 Pro Plus 2 lift kit is packed full of great features starting with our DOM steel tube upper Control Arms with extended duty ball joints and tough TCT urethane bushings. These Control Arms are designed to retain OEM ball joint angles while also providing necessary strut/coil over clearance during suspension droop cycling.

The 2" of front lift is achieved with our proprietary CNC machined billet Aluminum top hat replacements. These spacers replace the factory hat on the strut with a new, thicker hat which provides 2" of lift without altering the existing 2" of lift that comes from the factory. Differential drop spacers and skid plate spacers with new hardware are also included as are new rear shock extensions and front bump stop extensions. But that's not all!! This kit includes OEM style 2.0" rear lift blocks and new U-bolts to bring the back of Tundra trucks up for a really nice and level but lifted stance. To allow you to retain use of the factory Bilstein/Fox rear shocks, we include shock stem extensions which lengthen the shocks without changing the compressed or extended length of the shock. No details were skipped with this kit! We even include new front sway bar frame mount spacers and extensive skid plate spacers designed to work with the factory TRD Pro skid plate. Brake line bracket extensions are included to maximize the true professionalism of this kit. Easy to install in approximately 3 hours and fully capable of retaining OEM alignment geometry figures.

Unlike other kits, the ReadyLIFT TRD Pro Plus 2 Lift Kit system requires no cutting or strut spring pre-loading and installs quickly and safely using the provided heavy-duty hardware. Quality step-by-step instructions are provided with every kit.

Application List

2015-2021 Toyota Tundra TRD Pro 4WD

* Ford Use on Tundra TRD Pro with Bilstein Shocks

Tires & Wheels

35" Maximum tire diameter
35x12.50 for no rub on a 9" wide wheel with +12 offset
17" - 35X12.5R17
18" - 315/70R18
20" - 295/65R20 / 325/60R20
22" - 35X12.5R22

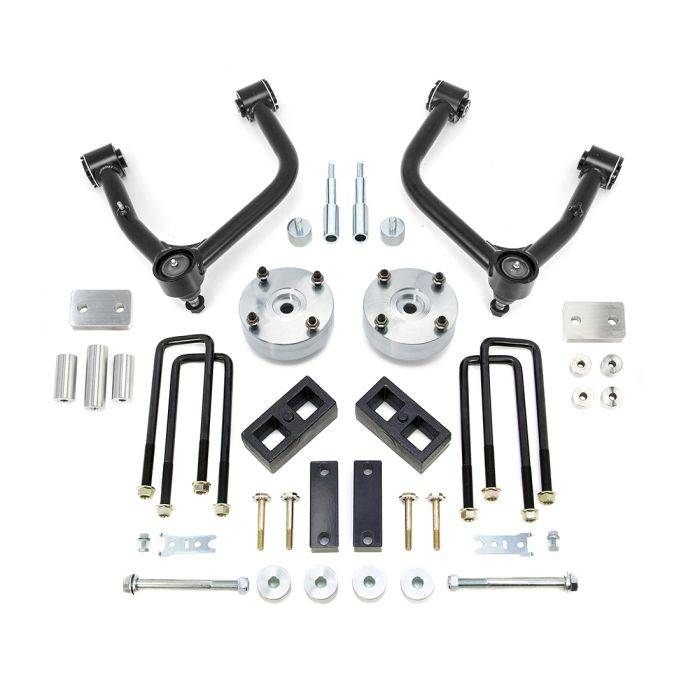

Components

Strong DOM powdercoated tube steel upper Control Arms with new ball joints and bushings.
Precision crafted CNC machined billet aluminum top hat replacement spacers designed to provide 2" of lift without compromising the factory 2" of lift.
Kit includes differential drop brackets which lowers the differential on 4WD models. This keeps the near factory CV angle specifications that Toyota built into these great trucks.
New powdercoated sway bar frame mount spacers to keep your sway bar working properly.
Skid Plate Spacers provided to adjust the TRD Pro skid plate down when using differential drop brackets.
E-coated finish on the strut extensions, rear blocks and u-bolts will last as long as your Toyota.
Includes shock stem extensions to extend the mounting length of the factory Bilstein rear shocks.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 48.0 lbs.
  • W23.0000” x H7.2500” x L23.0000”
  • Free Ground Shipping | Exclusions Apply*
