CSS-C1-13 | CST Suspension 3.5 to 5.5 Front Lift (2015-2018 Silverado, Sierra 1500 2WD)

2015-18 GM/CHEVY 2WD, SILVERADO/SIERRA 1500 TRUCKS / CSS-C1-13
(Cast-Aluminum OR Stamped Steel O.E. suspensions only)

THIS LIFT SPINDLE KIT INCLUDES EVERYTHING NEEDED TO PROVIDE UP TO 5.5 INCHES OF LIFT TO THE FRONT OF THE 2014-18 GM/CHEVY 1500 2WD SILVERADO AND SIERRA PICKUPS WITH STEEL O.E. SUSPENSION!

*REAR LIFT & SHOCKS SOLD SEPARATE*

THIS KIT ALLOWS THE INSTALLER THREE HEIGHT OPTIONS FOR ONE ECONOMIC PRICE. 3.5” SPINDLES ONLY, SPINDLES AND 1” COILOVER SPACERS FOR A 4.5” LIFT TO CLEAR 33” TIRES OR SPINDLES AND TWO SPACERS FOR A 5.5” LIFT TO CLEAR 35” TIRES! (ON 8-8.5″ WIDE WHEELS)

CSS-C1-13 KIT FEATURES

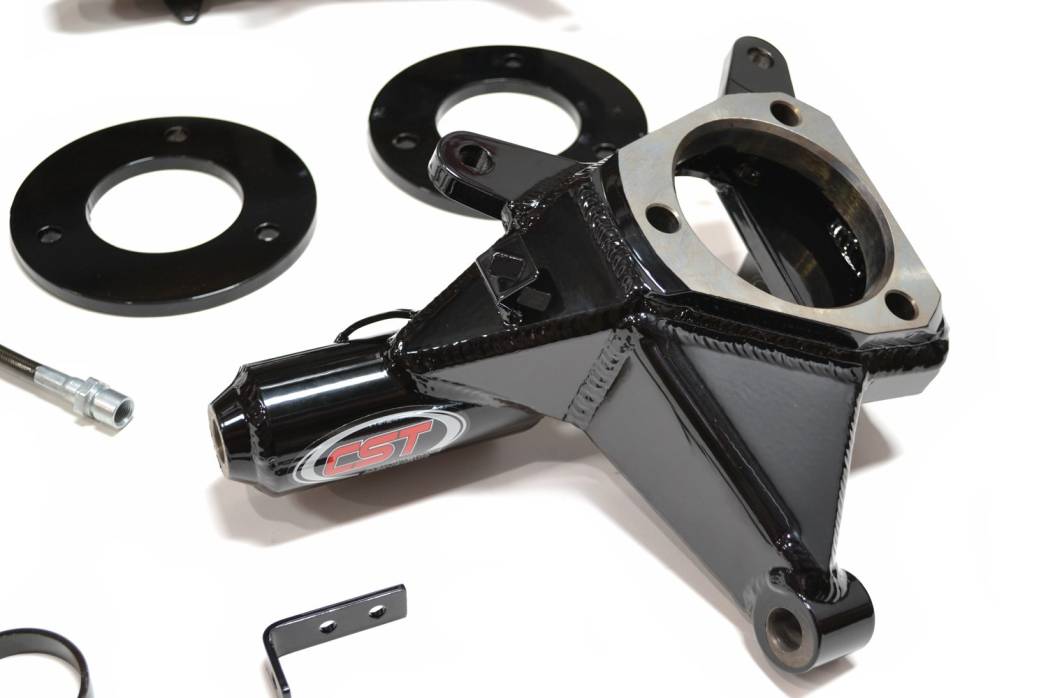

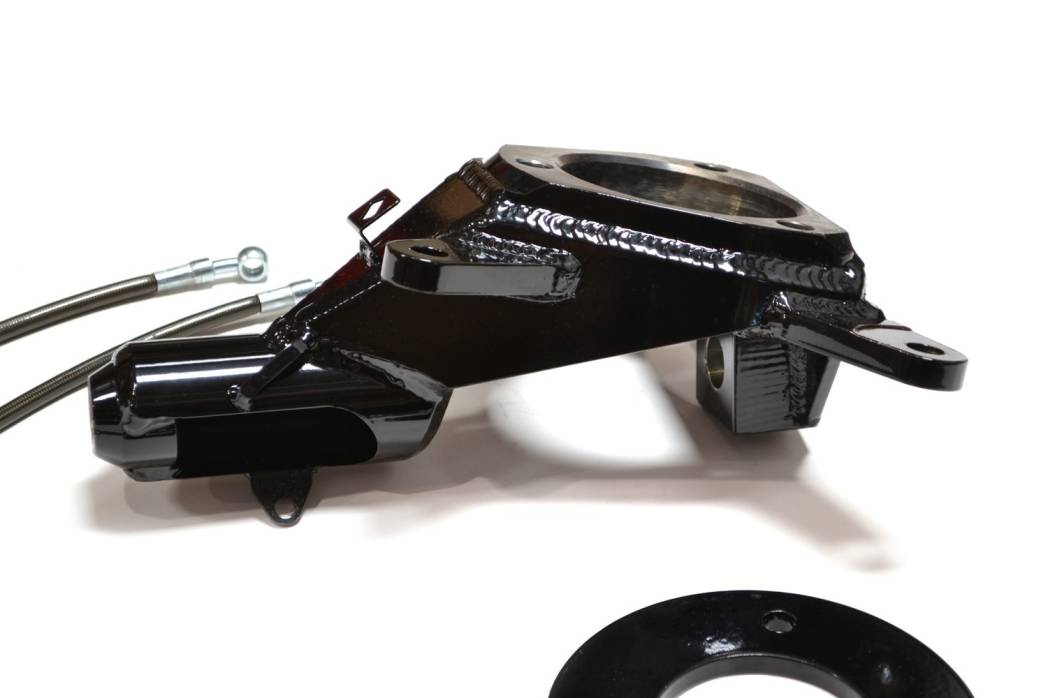

LIFT SPINDLES ARE CONSTRUCTED OF PRECISION LASER CUT 1/4″ STEEL, CNC MACHINED BALL JOINT TAPERS, AND COMPLETELY MIG WELDED.
ENGINEERED, DESIGNED & FABRICATED IN HOUSE BY CST.
2 PAIRS OF SPACERS INCLUDED IN THE KIT TO PROVIDE SEVERAL LIFT HEIGHT OPTIONS.
STEEL BRAIDED D.O.T. APPROVED BRAKE LINES INCLUDED IN KIT.
O.E.M. HANDLING & RIDE QUALITY.
MINIMAL TRACK-WIDTH CHANGES.
HIGH GROUND CLEARANCE.
SELF CONTAINED FRONT KIT.
ALL MADE IN THE U.S.A.!

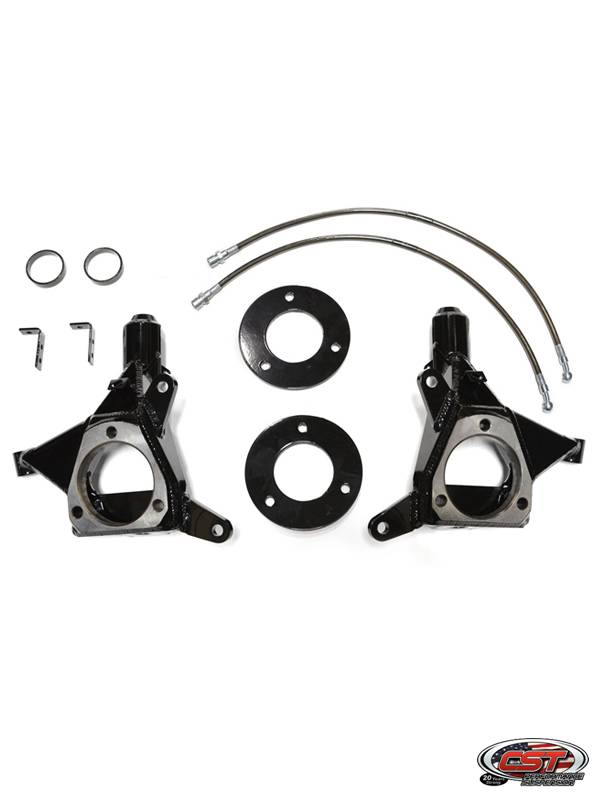

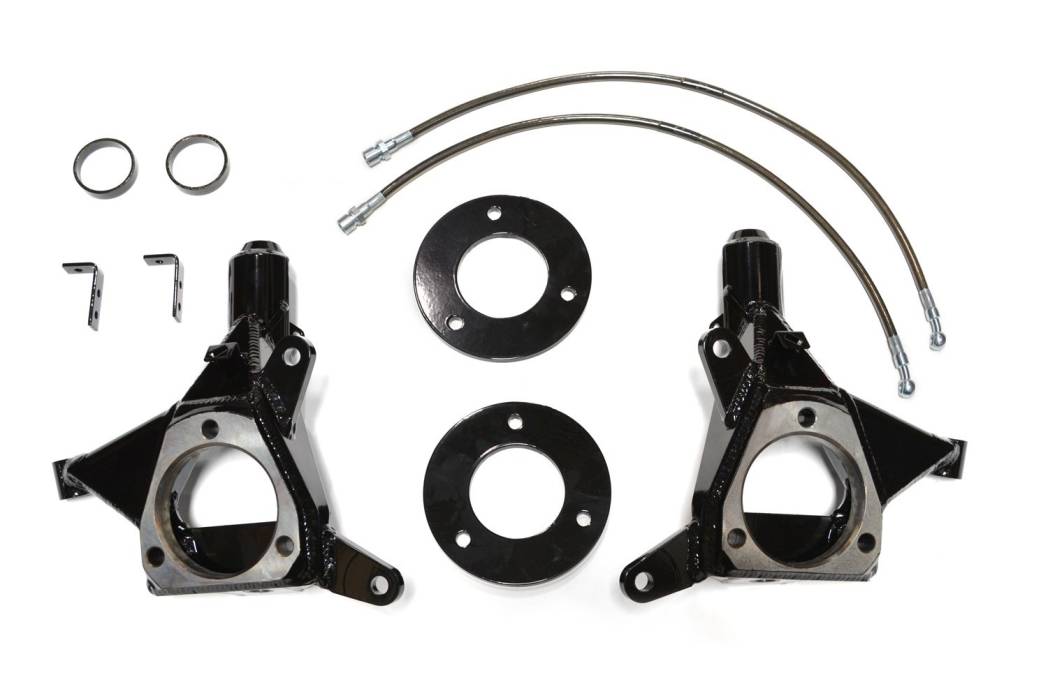

CSS-C1-13 INCLUDES FABRICATED 3.5″ LIFT SPINDLES, 2 SETS OF SPACERS, STEEL BRAIDED BRAKELINES AND NECCESSARY INSTALL HARDWARE. THE CSS-C1-13 SPINDLE LIFT KIT WILL LIFT THE FRONT END ONLY.

ADDITIONAL OPTIONS
CSB-C14-3 | 3″ FABRICATED LIFT BLOCKS (PICKUP REAR)
CSU-C15-10.5 | 10.5″ U-BOLTS (PICKUP REAR)
CSR-3500 | 2-3″ CST DIRT SERIES 2.5 EXTENDED TRAVEL COIL-OVERS
CSA-5530 | CST DIRT SERIES 2.0 REAR SHOCK
CSA-6530 | CST DIRT SERIES 2.0 REAR SHOCK w/ RES.

SUGGESTED WHEEL & TIRE SIZES
15-18 1500 2WD
32” x12.5” OR SIMILAR ON 8” WIDE WHEELS (3.5” LIFT)
33” x12.5” OR SIMILAR ON 8-9” WIDE WHEELS (4.5” LIFT)
315 / 70 / 17 ON 8 OR 9” WIDE WHEELS (5.5” OF LIFT)
35” X12.5” ON 8” WIDE WHEELS (TRIMMING REQUIRED / 5.5” LIFT)

ANYTHING LARGER, TALLER OR WIDER IS BEYOND CST RECOMMENDATIONS AND UP TO THE INSTALLER.
MAXIMUM BACKSPACING IS 5”
