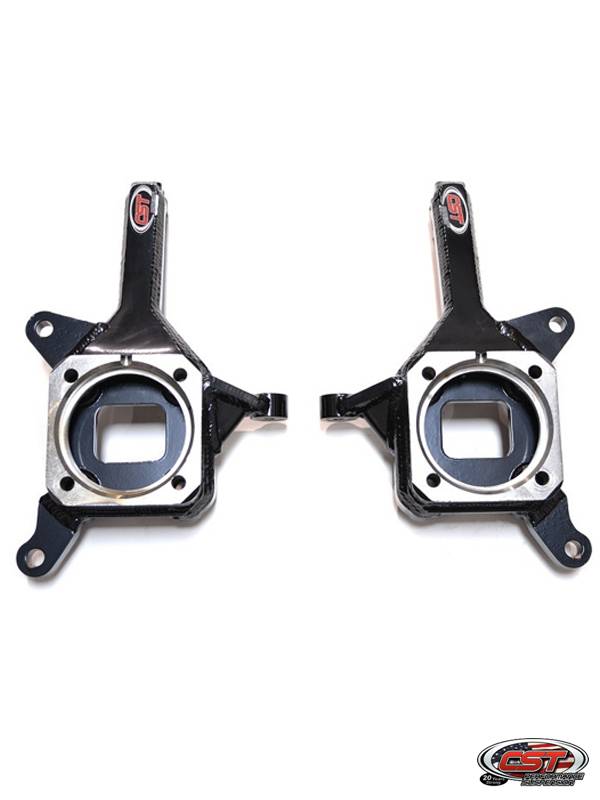

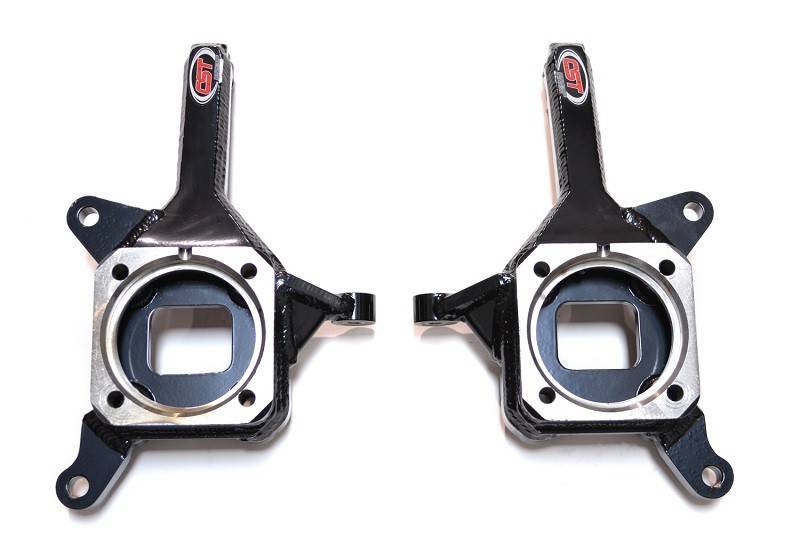

CSS-D1-4 | CST Suspension 3.5 Inch Fabricated Lift Spindle (2009-2013 Ram 2500, 3500 2WD)

INSTALL A SET OF CST FABRICATED LIFT SPINDLE UPRIGHTS (PART# CSS-D1-4) ON YOUR 2009-13 DODGE / RAM 2WD TRUCK AND YOU CAN ACHIEVE LEVELING OUT THE FRONT END WITHOUT AFFECTING THE VEHICLES STOCK RIDE. MEASURE THE VEHICLES STARTING HEIGHT, SOME TRUCKS MAY REQUIRE A REAR BLOCK KIT FOR A LEVEL STANCE. FRONT SHOCKS ARE NOT REQUIRED BUT THE REARS ARE OFFERED FOR THIS TRUCK TO IMPROVE OVERALL RIDE & PERFORMANCE.

Kit Features
DESIGNED TO FIT 33″ TIRES W/ 9″ WIDE WHEELS
CST SUPERIOR QUALITY FIT, FUNCTION, AND APPEARANCE.
SPINDLES ARE CONSTRUCTED OF PRECISION LASER CUT ¼” OR BETTER STEEL.
MINIMAL TRAC WIDTH CHANGE, MAXIMUM GROUND CLEARANCE & STOCK RIDE!
MADE IN THE U.S.A.

Notes
KIT USES O.E.M. FRONT SHOCKS.
WHEELS CAN NOT HAVE MORE THAN 4.75″ BACKSPACING.
ALSO AVAILABLE WITH SPACERS AS A 6″ LIFT KIT.

Individual Kit Components
Each part number listed below sold separately
CSS-D1-4 | 3.5″ FABRICATED LIFT SPINDLE KIT

Optional Kit Components
CSA-5533 / CST 2.0 REAR SHOCK (WITH 1″ REAR KIT) (SOLD EACH)

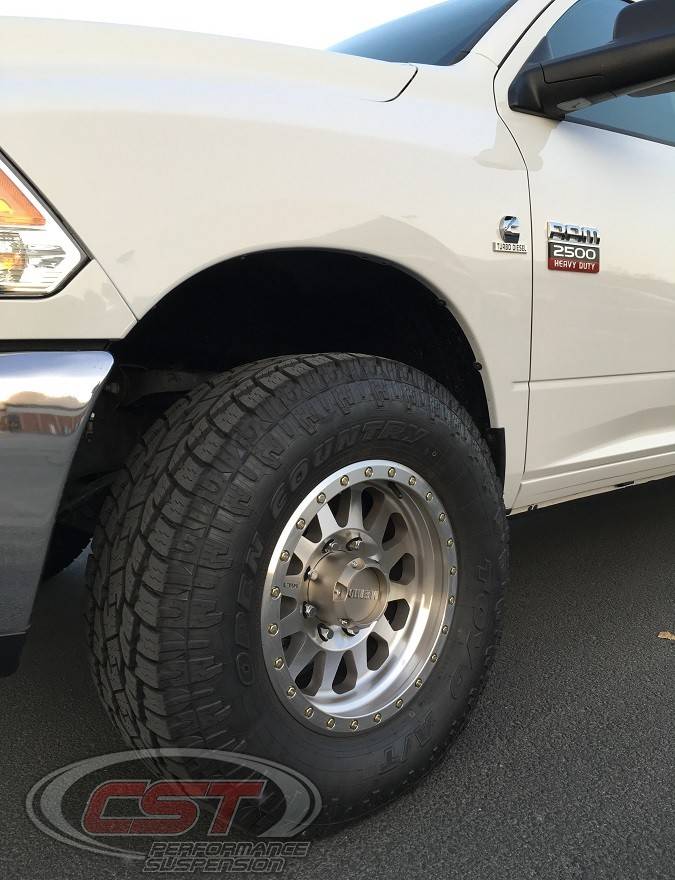

SUGGESTED WHEEL & TIRE SIZES
09-2013 Dodge / RAM 2500 2WD
33” x12.5” OR SIMILAR ON 9” WIDE WHEELS (MINOR TRIMMING)
315 / 70 / 17 ON 8” WIDE WHEELS (MINOR TRIMMING)

ANYTHING LARGER, TALLER OR WIDER IS BEYOND CST RECOMMENDATIONS AND UP TO THE INSTALLER.
MAXIMUM BACKSPACING IS 4.75”
