K632B | Superlift 4 inch Suspension Lift Kit with Bilstein Shocks (2000-2004 F250, F350 Super Duty 4WD | Diesel, V10 Engine)

2000-2004 Ford F250, F350 Super Duty 4WD | Diesel, V10 Engine ONLY

K632B
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $2,362.99
Qty:

Description

This is a complete front Superlift leaf spring lift kit for the Ford F-250/F-350 4WD V-10 and diesel engine
Provides 4” lift height
Includes rear blocks, track bar bracket, front and rear Superlift shocks or rear 5100 Series Bilstein shocks

What does it include?

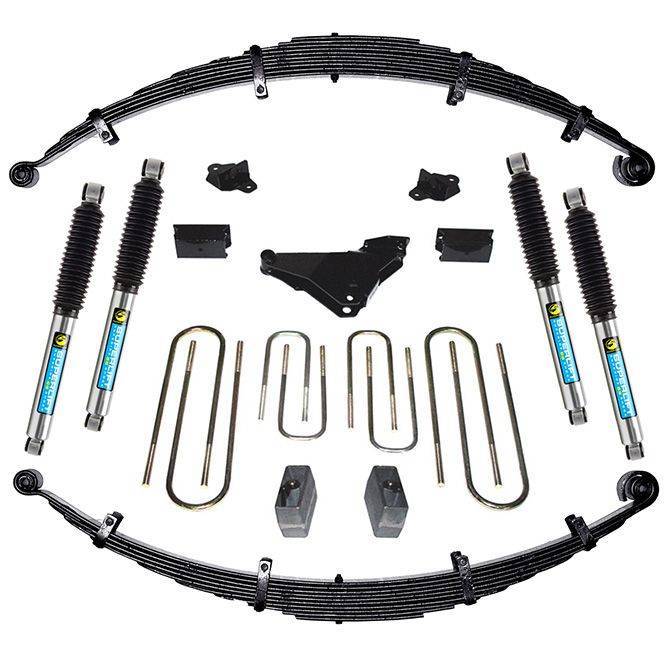

Front leaf springs, track bar bracket, sway bar correction, shocks, rear block and u-bolt kit, and all hardware required specific to the Ford F-250
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

Superlift's complete front Superide leaf spring lift kit for your Ford F-250/F-350 4WD V-10 and diesel engine.

Features:
Springs incorporate military-wrapped spring eyes and anti friction pads between leafs
Track bar relocation bracket prevents steering wheel "kick"
New front anti-sway bar hardware maintain factory bar geometry
Functional front compression travel stops prevent over-compression and provide a more progressive spring rate; factory rear travel-stops are relocated
Rear lift via 3" blocks
Front and rear Superlift shocks or Superlift SS series shocks by Bilstein included

Notes:
Installation time: 6 hours
Difficulty level: 3 of 5

Additional Info
Rear u-bolts fit vehicles with and without a top-mounted overload leaf. Those without overloads will have approx. 2" of excess U-bolt length (that can be trimmed). Or for shorter U-bolts, refer to block chart and replace listed block kit with the non-overload application.

Rear lift based on vehicles with 2.5" tall factory. If vehicle equipped with 3.5" tall factory block expect slight rear to front rake.

This lift kit is packaged with rear blocks and u-bolts that are configured for the Ford F-250/F-350 pickups with the factory 1 7/8" blocks without top mount overloads. If your vehicle is equipped with the factory 3.71" block or top mounted overloads, a longer rear u-bolt will be required and is available from us.

Application List

2000-2004 Ford F-250 Super Duty 4wd
2000-2004 Ford F-350 Super Duty 4wd

Tires & Wheels

Tire Wheel Backspacing Offset
35 x 12.5 17 x 9 4.5 -



IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W18.0000” x H24.0000” x L48.0000”
  • $70.00
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)

Documents
