This is a complete front Superlift leaf spring lift kit for the 2000-2005 Ford Excursion 4WD V-10 and diesel engine
Provides 7” lift height
Includes track bar bracket, rear add-a-leaf and blocks, front and rear 5100 Series Bilstein shocks
What does it include?

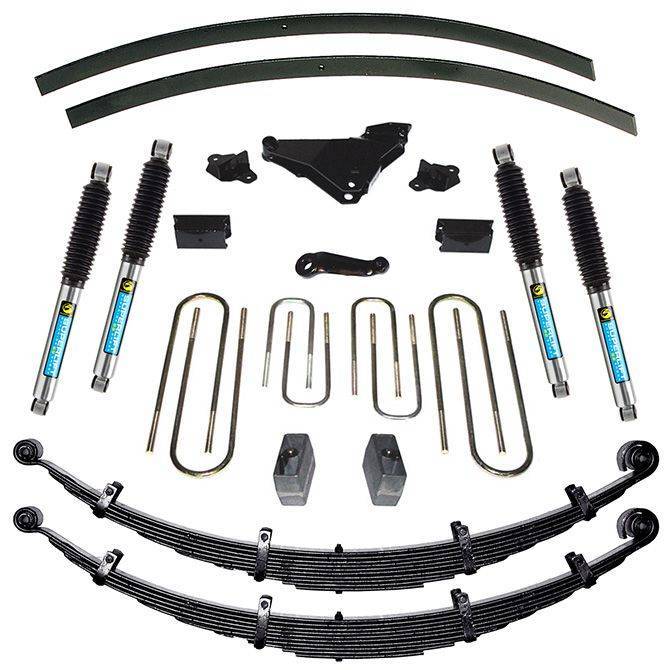

Front leaf springs, track bar bracket, sway bar correction, drop pitman arm, shocks, rear block, add-a-leaf, and u-bolt kit, and all hardware required specific to the 2000-2005 4WD Ford Excursion.
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation
Features:
Track bar relocation bracket prevents steering wheel "kick"
Functional front compression travel stops prevent over-compression and provide a more progressive spring rate; factory real travel stops are relocated
Rear lift via 4" block and add-a-leaf
Notes:
Installation time: 6 hours
Difficulty level: 3 of 5
This lift kit is packaged with rear blocks and u-bolts that are configured for the Ford F-250/F-350 pickups with the factory 1 7/8" blocks without top mount overloads. If your vehicle is equipped with the factory 3.71" block or top mounted overloads, a longer rear u-bolt will be required and is available from us.
2000-2005 Ford Excursion 4wd
