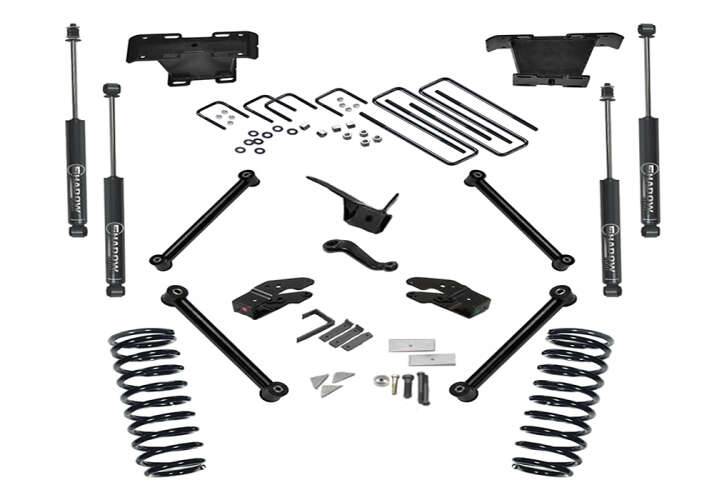

K101 | Superlift 5 Inch Dodge Suspension Lift Kit w/ Shadow Shocks (2000-2001 Ram 1500)

Superlift's complete coil spring style suspension lift kit for the 2000-2001 Dodge Ram 1500 4wd, providing 5” of lift height.

Relocating the track bar prevents steering wheel kick and stud bind
Front anti-sway bar relocation brackets prevent bar pre-load
Tubular radius arms improve drivability
Greasable radius arm eye bushings for long, squeak-free life
Front / rear compression travel stop brackets eliminate over-compression
Front extension travel limiting straps prevent over-extension
Special pitman arm relieves drag link angle
Front / rear Superide shock included
Front lift is via new, pre-set coil springs. Superlift tubular radius arms replace the factory 4-link control arms to decrease link angle and improve overall control and drivability. The new radius arms are constructed of 1.5" diameter x .120" wall thickness DOM tubing and feature Poly eye bushings. Grease fittings at the eyes' pivot points ensure squeak-free operation and increased bushing life.

A dropped pitman arm reduces drag link angle, and Superlift's braced cast steel track bar relocation bracket ensures proper body/axle alignment and steering phasing. Sway bar relocation brackets, suspension compression travel bump-stop relocation brackets, and front axle limiting straps complete the front lift.

For rear lift, add-a-leafs are used in conjunction with blocks to strengthen the spring pack and control axle wrap-up. The lift kit includes front and rear Superide shocks.

NOTES
Installation time: 7 hours
Difficulty level: 4 of 5
Additional Info:

Pitman arm included in kit box.

Minor cutting and / or welding required.

Except factory off-road package - Kit will fit on the vehicle but will only yield 3.5" of height.
