K1018 | Superlift 6 Inch Dodge Suspension Lift Kit with Shadow Shocks (2009-2011 Ram 1500)

This is a complete knuckle style suspension lift kit for the 2009-2011 Dodge Ram 1500 4WD
Provides 6” lift height
Includes rear coil springs and rear Superlift shock absorbers or rear 5100 Series Bilstein shock absorbers

What does it include?

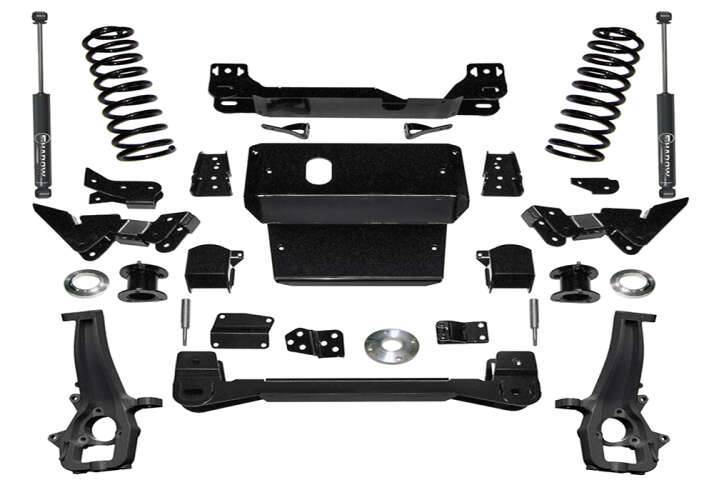

All brackets, cross-members, shocks, steering knuckles, rear coil springs, rear track bar bracket, and hardware required specific to the 2009-2011 4WD Dodge Ram 1500
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

Features:
Replacement knuckles yield best possible alignment specs. Front track width is not increased and factory turning radius is retained.
Front lower control arm crossmembers laser cut from 3/16" material.
Belly pan, constructed of 1/4" material, connects crossmembers and protects differential.
Front anti-sway bar link extensions retain factory "service for life" links.
New Superide Dual Rate rear coil springs provide ideal ride, handling and load carrying capability.
New bracketry relocates factory rear 4-link points, anti-sway bar links, brake lines and track bar.
New rear compression travel-stop brackets.
Rear shock options include Superlift Superlift or Bilstein.
Installs easily with only slight trimming and no exhaust or driveshaft modifications.
Compatible with Dodge's Electronic Stability Program.

Notes:
Installation time: 9-10 hours
Difficulty level: 4 of 5

Will not fit Short Bed Standard Cab models due to rear driveline vibration.
The TRX factory ride height is approximately 1" taller than the standard Ram. The part # K116 is not recommended for use on the TRX models due to possible alignment issues and CV shaft vibration caused by the additional lift. Consider our 4" lift system (K114) for about 5" of lift or the K116B with the height adjustable Bilstein front struts. Set the snap ring in the center groove of the strut to achieve proper ride height.
