K163 | Superlift 4 Inch Suspension Spacer Lift Kit (2017-2022 F250, F350 Suepr Duty 4WD)

2017-2022 Ford F250 Super Duty 4WD | 2017-2022 Ford F350 Super Duty 4WD

K163
Pricing: $778.39
Qty:
Free Ground Shipping | Exclusions Apply*

Description

This is a complete bracket style suspension Lift Kit for the 2017 and newer Ford F-250 / F-350 Super Duty 4WD – all engines
Provides 4” lift height

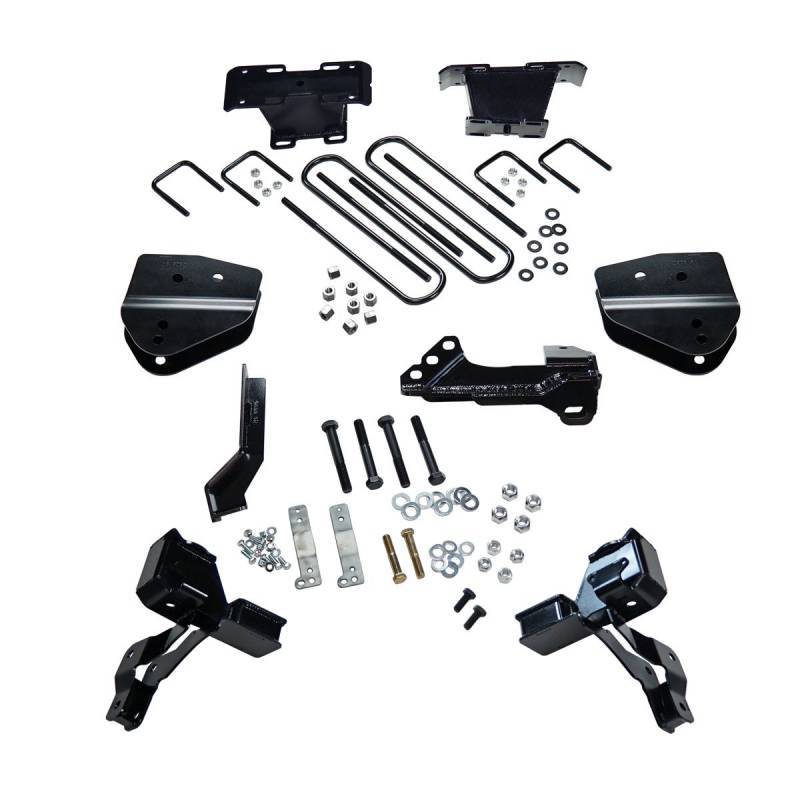

Includes coil spacers, rear block and u-bolt kit, track bar bracket and related brackets.

What does it include?
Front coil spring spacers, shock brackets, track bar bracket, radius arm drops, brake line brackets, steering stabilizer bracket and all hardware needed for installation
Rear fabricated blocks with ubolts.
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

Superlift's engineers set out to design a complete, bolt-on system for the 2017-2021 Ford F-250 and F-350 Super Duty 4WD’s that can be purchased on a budget. This Super Duty lift kit integrates the coil spacer, shock relocation, and the bump stops spacer all into one bracket for a super easy install.

The other front components also included are a track bar relocation bracket to keep the axle centered, radius arm drop brackets to maintain the proper caster specifications, and brake line relocation brackets. The rear lift is achieved with a new design fabricated rear block that allows the removal of the stock block.

Notes:
Installation time: 4 hours
Difficulty level: 2 of 5

If equipped with a 2 piece rear drive shaft, a carrier bearing spacer is required. Part # 9649
If equipped with factory top mount overload leaf, longer ubolts will be required. Part # 11724
GAS Engine equipped trucks will require exhaust modifications .

Application List

2017-2022 Ford F-250 Super Duty 4WD
2017-2022 Ford F-350 Super Duty 4WD

Tires & Wheels

Tire Wheel Backspacing Offset
35 x 12.5 17 x 9 4.5 -
35 x 12.5 18 x 9 4.5 -
35 x 12.5 20 x 9 4.5 -
35 x 12.5 20 x 10 - -12 to -24
37 x 12.5 17 x 9 4.5 -
37 x 12.5 18 x 9 4.5 -
37 x 12.5 20 x 9 4.5 -
37 x 13.5 20 x 10 - -12 to -24



IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 80.0 lbs.
  • W12.0000” x H24.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
