K167 | Superlift 6 Inch Suspension Lift Kit With Shadow Shocks 2017-2022 F250, F350 Super Duty 4WD | Diesel)

This is a complete coil spring suspension Lift Kit for the 2017-2021 Ford F-250/F-350 4WD – diesel engine
Provides 6” lift height
Includes track bar and radius arm drop brackets, drop pitman arm, rear blocks, front and rear Superlift shocks

What does it include?

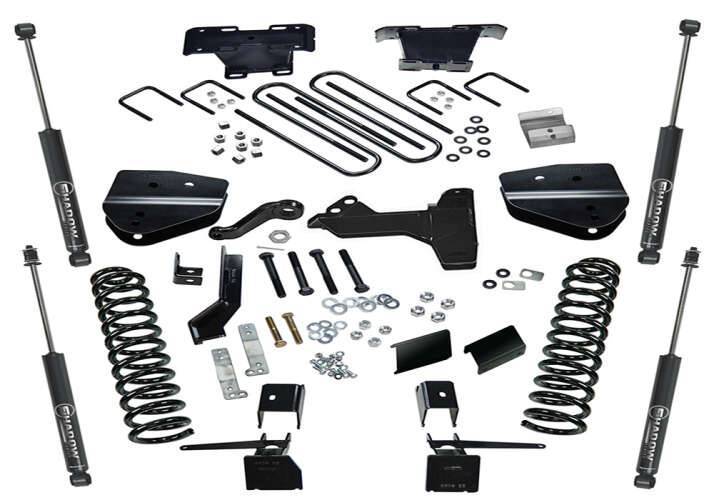

Front coil springs, radius arm drops, track bar bracket, drop pitman arm, brake line brackets, steering stabilizer bracket, Superlift or Fox Shocks, and all hardware needed for installation.
Rear fabricated blocks with ubolts and Superlift shocks.
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation.

This standard 6” Lift for the 2017-2020 Ford Super Duty F-250 | F-350 4WD is achieved via engine specific coil springs to ensure the proper lift height and maintain factory ride quality. Radius Arm lowering brackets are used to restore proper caster angle/alignment. Other Components included with the 6” system are: front compression travel-stop relocation brackets, track bar relocation bracket, drop pitman arm and a steering stabilizer bracket. The rear lift is achieved with a new designed fabricated rear block that allows the removal of the stock block. This fabricated block also allows for proper pinion and axle angle all while reducing axle wrap. Complete your 6-inch Ford F-250 | F-350 with the best variety of shocks on the market. Shocks for this kit are available in the following: Superlift Shocks or Fox Performance Series 2.0 IFP Shocks.

Features:
Replacement Front coil springs improve ride quality while rear blocks maintain load capacity
Radius Arm drops maintain proper caster
Drop Pitman arm to help ensure proper operating angle of Draglink
Track bar relocation bracket prevents stud bind and steering wheel kick
Front and Rear – Superlift Shocks or Fox® Performance Series 2.0 IFP Shocks
Backed by our limited lifetime warranty

Benefits:
Retains OEM caster and camber alignment specifications
Maintains ride quality and handling characteristics
Designed using Original Equipment (OE) CAD data for accuracy.

NOTES:
Installation time: 7-8 hours
Difficulty level: 3 of 5

If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required. Part # 9669
If equipped with factory top mount overload leaf springs, longer u-bolts are required. Part # 11734
