K640 | Superlift 7 inch Suspension Lift Kit with Shadow Shocks (2000-2005 Excursion 4WD | Diesel, V10 Engine)

2000-2005 Ford Excursion 4WD | Diesel, V10 Engine ONLY

K640
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $2,196.19
Qty:

Description

This is a complete front Superlift leaf spring lift kit for the 2000-2005 Ford Excursion 4WD V-10 and diesel engine
Provides 7” lift height
Includes track bar bracket, rear add-a-leaf and blocks, front and rear Superlift shocks

What does it include?

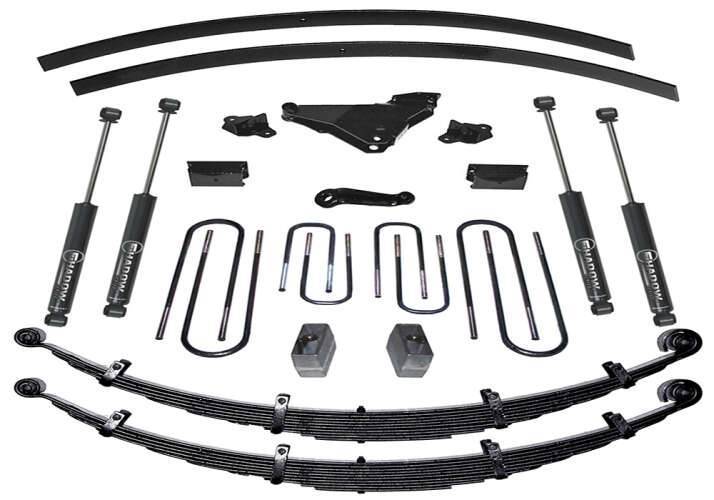

Front leaf springs, track bar bracket, sway bar correction, drop pitman arm, shocks, rear block, add-a-leaf, and u-bolt kit, and all hardware required specific to the 2000-2005 4WD Ford Excursion.
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

Features:
Track bar relocation bracket prevents steering wheel "kick"
Functional front compression travel stops prevent over-compression and provide a more progressive spring rate; factory real travel stops are relocated
Rear lift via 4" block and add-a-leaf

Notes:
Installation time: 6 hours
Difficulty level: 3 of 5

This lift kit is packaged with rear blocks and u-bolts that are configured for the Ford F-250/F-350 pickups with the factory 1 7/8" blocks without top mount overloads. If your vehicle is equipped with the factory 3.71" block or top mounted overloads, a longer rear u-bolt will be required and is available from us.

Application List

2000-2005 Ford Excursion 4wd

Tires & Wheels

Tire Wheel Backspacing Offset
37 x 12.5 17 x 9 4.5 -



IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W18.0000” x H24.0000” x L48.0000”
  • $70.00
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
