K644 | Superlift 8 inch Suspension Lift Kit with Shadow Shocks (2000-2004 F250, F350 Super Duty 4WD | Diesel, V10 Engine)

This is a complete front Superlift leaf spring lift kit for the Ford F-250/F-350 4wd V-10 and diesel engine – 2000 - 2004
Provides 8” lift height
Includes rear add-a-leaf and blocks, track bar bracket, front and rear Superlift shocks

What does it include?

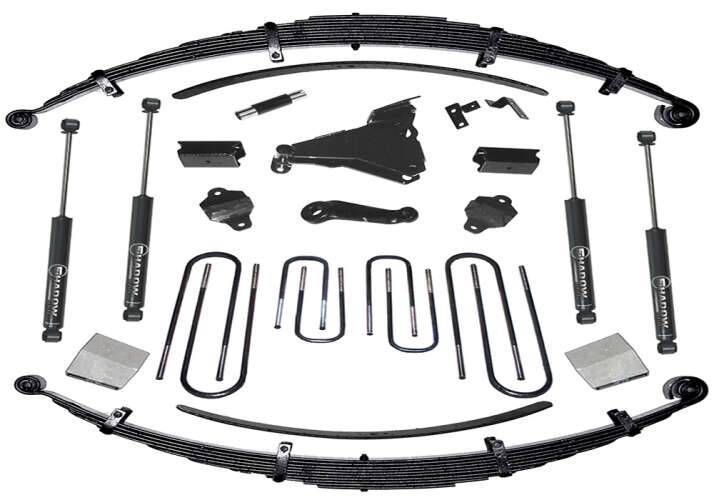

Front leaf springs, track bar bracket, sway bar correction, drop pitman arm, shocks, rear block, add-a-leaf, and u-bolt kit, and all specific hardware required
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

Features:
Springs incorporate military-wrapped spring eyes and anti-friction pads between leafs
Track bar relocation bracket prevents steering wheel "kick"
New front anti-sway bar hardware maintain factory bar geometry
Functional front compression travel stops prevent over-compression and provide a more progressive spring rate; factory rear travel-stops are relocated
Rear lift via 5" blocks and add-a-leafs
Front / rear shocks included

Notes:
Installation time: 6 hours
Difficulty level: 3 of 5

Will NOT fit Pre-March 1999 trucks

This lift kit is packaged with rear blocks and u-bolts that are configured for the Ford F-250/F-350 pickups with the factory 1 7/8" blocks without top mount overloads. If your vehicle is equipped with the factory 3.71" block or top mounted overloads, a longer rear u-bolt will be required and is available from us. Please refer to the option's list or call our technical support line for additional details.

Pitman arm included in kit box

Rear lift based on vehicles with 2.5" tall factory. If vehicle equipped with 3.5" tall factory block expect slight rear to front rake. Front driveshaft must be lengthened.

Part number 9641 front bumper spacer can be used on Excursions and Super-Duty pickups to allow for increased tire clearance.
