K806 | Superlift 6 inch Suspension Lift Kit with Shadow Shocks (2005-2007 F250, F350 Super Duty 4WD | Diesel)

This is a complete coil spring lift kit for the 2005-2007 Ford F-250/F-350 – diesel engine
Provides 6” lift height
Includes track bar and radius arm relocation brackets, front and rear Superlift shocks

What does it include?

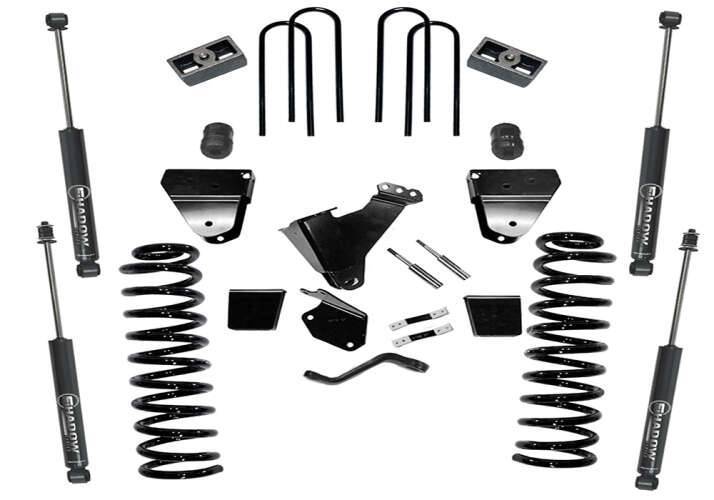

Front coil springs, track bar bracket, radius arm brackets, sway bar correction, drop pitman arm, shocks, rear block and u-bolt kit, and all hardware required specific to the 2005-2007 4WD Ford F-250 DIESEL
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

Superlift Suspension Systems now available with Superlift Shocks OR Bilstein Shocks OR Fox® Shocks:

This 6” Lift for the 2005-2007 Ford Super Duty F-250 | F-350 4WD features Superlift’s engine specific coil springs to ensure proper lift height and maintain factory ride quality. Radius arm drop brackets are used to restore proper caster angle and alignment. Other components included with this 6-inch suspension system are front compression travel-stop relocation brackets, track bar relocation bracket, Drop pitman arm, front anti-sway bar extensions, and steering stabilizer bracket. Rear lift is achieved by lift blocks.

Complete your 6-inch Ford F-250 | F-350 with the most extensive variety of shocks on the suspension market. Shock Options for this kit are available in the following: Superlift OR Bilstein 5100 Series OR Fox Performance Series 2.0 IFP Shocks.

Features:
Replacement Front coil springs improve ride quality while rear blocks maintain load capacity
Radius Arm Drop Brackets
Front Compression Travel-Stop Brackets prevent suspension over-compression
Drop pitman arm reduces drag link angle
Track bar relocation bracket prevents stud bind, resulting roll and yaw, and steering wheel kick
Threaded front anti-sway extensions do not require cutting or welding
Proper factory steering stabilizer angles is restored for optimum operation
Front and Rear Shock: Superlift
Backed by our limited lifetime warranty

Benefits:
Aligns to OEM specifications
Maintains ride quality and handling characteristics

NOTES:
Installation time: 7-8 hours
Difficulty level: 3 of 5

If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required. Part # 9669
For Superduty’s equipped with the 1-7/8” blocks and top overloads, Part # 11874 will need to be purchased in addition to the lift kit
