K991 | Superlift 8 inch Suspension Lift Kit with Shadow Shocks (2011-2016 F250, F350 Super Duty 4WD | Diesel)

This is a complete coil spring and replacement radius arm suspension lift kit for the 2011-2016 Ford F-250/F-350 4WD – diesel engine
Provides 8” lift height
Includes track bar bracket and related brackets, rear blocks, front and rear Superlift shocks
This kit also has a King Shocks coil-over shock option (K991KG)

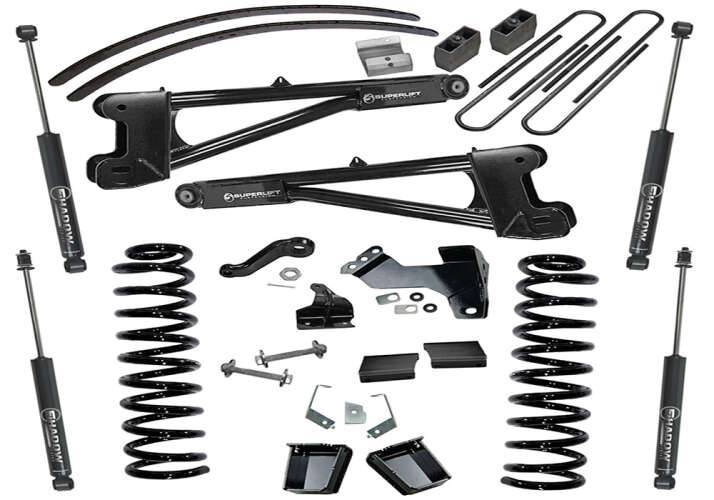

What does it include?
Front coil springs, track bar bracket, replacement radius arms, drop pitman arm, sway bar correction, shocks, rear block and u-bolt kit with add-a-leafs, and all hardware required specific to the 2011-2016 4WD Ford F-250/F-350 DIESEL Engine
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation
This is the Superlift 8” suspension lift kit is for the 2011-2016 Ford F-250 | F-350 Super Duty 4WD – Diesel Engine

OEM CAD models and the latest 3D software were used to precision engineer a suspension system that includes a set of massive, high-clearance tubular radius arms designed to bolt right into the factory mounts. These heavy-duty radius arms use the giant press fit OEM Cleveite® bushing to reduce noise, vibration, and harshness(NVH). They feature a “True Flat” jack plate surface, include alignment cam bolts and are offset to the inside allowing maximum turning radius and tire clearance.

Track bar relocation bracket, front sway bar correction, drop pitman arm, bump stop extension brackets, brake hose relocation brackets, rear lift (blocks & Add-a-leafs) and all the necessary hardware is included to make certain this package is complete with everything you need to the job right.

Features:
Replacement Front coil springs improve ride quality while rear blocks and add-a-leafs maintain load capacity
High Clearance Replacement Radius Arms with Cleveite® OE Style rubber bushings
Drop Pitman arm included
Track bar relocation bracket prevents stud bind and steering wheel kick
Front and Rear Superlift Shocks
Backed by our limited lifetime warranty

Benefits:
Retains OEM caster and camber alignment specifications
Maintains ride quality and handling characteristics
Designed using Original Equipment (OE) CAD data for accuracy.

Notes:
Installation time: 8 hours
Difficulty level: 3 of 5

If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required. Part # 9695
If equipped with factory top mount overload leaf springs, longer u-bolts are required. Part # 11734 will need to be purchased in addition to the lift kit. If truck equipped with 3.71 inch block and top mount overloads, please call our technical department at 800-551-4955.
