K306 | Superlift 4-5 inch Suspension Lift Kit with Shadow Shocks (1986-1995 Pickup, 4 Runner 4WD)

This is a complete knuckle spacer style lift kit for the 1986-1995 Toyota pickup 4WD, except 1989-95 standard cab short bed
Provides 4” to 5" adjustable lift height
Includes rear blocks, front and rear Superlift shock absorbers

What does it include?

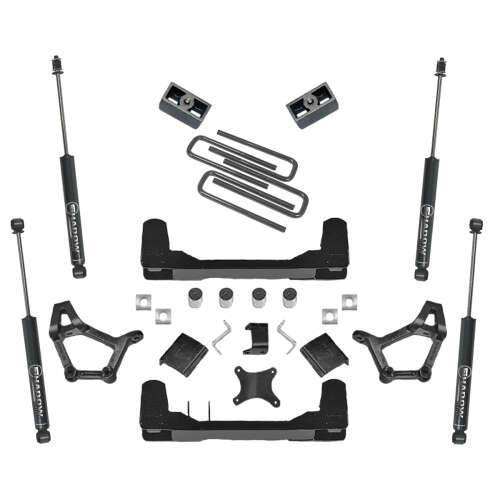

All brackets, cross-members, knuckles, shocks, rear block and u-bolt kit, and hardware required specific to the 1989-1995 Toyota Pickup Models (EXCEPT short bed standard cab models)
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

Superlift's complete knuckle spacer style lift kit for the 1986-1995 Toyota pickup 4wd (except 1989-95 standard cab short bed), providing 4” to 5” of adjustable front lift height.

Full-width differential / lower control arm crossmembers provide lateral rigidity
Precision cast steering knuckles included
Load bearing bracketry made of .25" thick steel plate and/or heavy wall rectangular tubing
Front and rear Superlift shocks included
Includes front brake hose relocation hardware
Limited Lifetime Warranty
Satisfaction Guarantee

Like most IFS trucks, the Toyota uses upper and lower control arms supported by torsion bars. What makes the Toyota IFS suspension unique is that the torsion bars run along the top of the frame rails and connect to the upper control arms which means the torsion bars cannot be relocated.

Front lift is achieved by lowering the lower control arms via one-piece crossmember assemblies. Since the upper control arms must remain in their factory location, new precision cast knuckles bridge the increased distance between the upper and lower control arms. The front differential housing is lowered to keep CV axle angles in check, sway bar relocation brackets, bump stop extensions, brake hose and E-brake relocations brackets are also provided.

The kit is packaged complete with Superlift shocks.

NOTE:
Installation time: 7 hours
Difficulty level: 3 of 5

Brake line/hose relocating hardware included in kit box. Requires new wheels with backspacing of 3.25" min. / 3.75" max.
