K162 | Superlift 6.5 Inch Suspension Lift Kit with Shadow Shocks (2007-2013 Silverado, Sierra 1500 4WD)

2007-2013 Chevrolet Silverado 1500 4WD | 2007-2013 GMC Sierra 1500 4WD

K162
Pricing: $2,362.99
Qty:
Free Ground Shipping | Exclusions Apply*

Description

This is a complete knuckle style, strut spacer suspension lift kit for the Chevy/GMC 2WD or 4WD (depending on application) – with OE Cast Steel upper control arms
Provides 6.5” lift height
Includes rear fabricated blocks that remove the factory block and rear Superlift shock

What does it include?

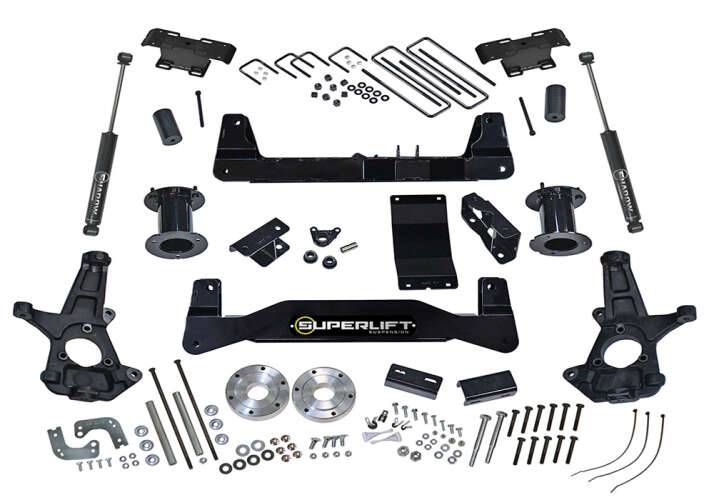

All brackets, cross-members, steering knuckles, strut spacers, rear block and u-bolt kit, shocks and hardware specific to the 2007-2016 Chevrolet Silverado or GMC Sierra 1500
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

Superlift’s true to the height 6.5 inch lift kit for the 2007-2016 Chevrolet Silverado or GMC Sierra 1500 2WD is a great way to add height to your overall GM 1500 appearance. Superlift’s Shock options now include Superlift shocks, Bilstein 5100 Series Shocks or Fox® Performance Series 2.0 IFP Shocks. This allows you to select your ride. Superlift Suspension intentionally over-builds our suspension kits to be the best. Our uniquely engineered design adds strength and durability and has bonus features that others do not offer. This 6.5 inch Lift kit for the GM 1500 2WD Pickup is a complete replacement knuckle kit.

Superlift’s geometry, from steering timing and linkage angles to driveshaft and CV axle operating angles, yields optimal component service life and exceptional drivability. Our Lower Control arm cross-members are true to their height and are a one-piece, full-width, high-clearance design made of .25” steel plate.

This kit includes front knuckles, front strut spacers, cross-members, a rear block and u-bolt kit and rear Shocks – Superlift, Bilstein, or Fox Shocks. All require parts are included to make sure your Silverado or Sierra handles and performance in all conditions.

Features:
True to the height Lift Kit at 6.5 Inches
Direct bolt-on (No Weld Design)
Adds clearance for up to 35” tires
Rear – Superlift Shocks OR Bilstein® 5100 Series Shocks OR Fox® Performance Series 2.0 IFP Shocks

Benefits:
Retains OEM caster and camber alignment specifications
Maintains ride quality and handling characteristics
Aligns to OEM Specifications
Designed using Original Equipment (OE) CAD data for accuracy
Corrects Front to rear Factory rake for a more level stance

NOTES:
Installation time: 7-8 hours
Difficulty level: 3 of 5

Not recommended for AWD models
Does not fit models with Auto Ride or Auto leveling
Only fits models with Cast Steel Control Arms

Application List

2007-2013 Chevrolet Silverado 1500 4WD
2007-2013 GMC Sierra 1500 4WD

Tires & Wheels

Tire Wheel Backspacing Offset
35 X 12.5 18 x 9 4.3 -6
35 X 12.5 20 X 9 - +12 to +18
305/65 R18 18 x 9 - +12 to +18
305/55 R20 20 X 9 - +12 to +18



IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W18.0000” x H24.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*

Documents
