K445 | Superlift 8 inch Suspension Lift Kit with Shadow Shocks (1973-1991 K20 Pickup, Suburban 4WD | 52 Inch Rear Springs)

This is a complete Superlift leaf spring suspension lift kit for the 1973-1991 Chevy/GMC solid axle 3/4 ton Pickup 4WD
Provides 8” lift height
Includes rear springs, front and rear Superlift shocks

What does it include?

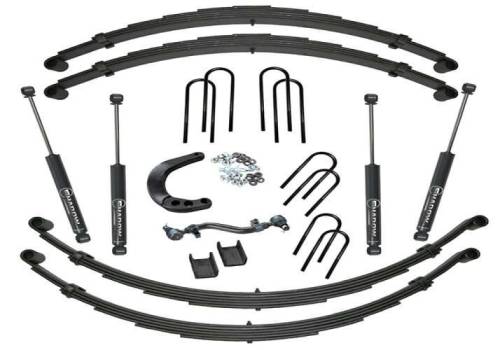

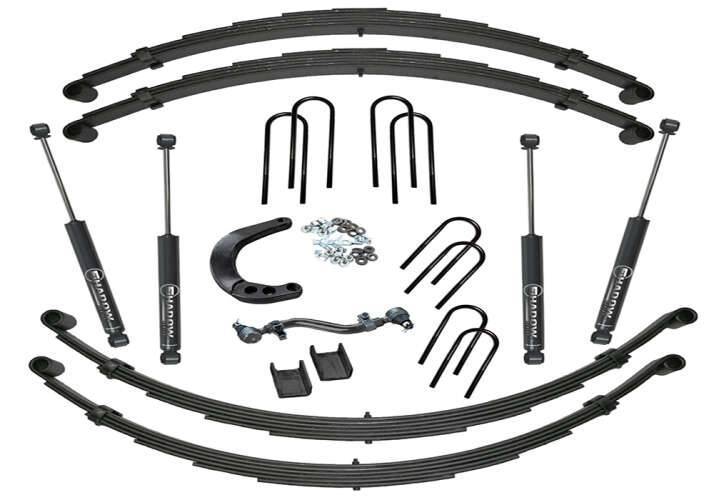

Front and rear leaf springs, shocks, raised steering arm, adjustable drag link, and all hardware required specific to the 1973-1991 4WD Chevrolet/GMC ¾ Ton Solid Axle Vehicles
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

Superlift's complete Superlift leaf spring suspension lift kit provides 8” lift height.

Features:
Heavy Duty Front leaf springs
Durable Urethane spring eye bushings
Degree shim installed on the front springs to help driveline angle
Rear lift options include add-a-leaf and block or full replacement rear spring
Raised steering arm and drop drag link included
Sway bar drop brackets included
Front driveshaft spacer available
Superlift shock absorbers included

Notes:
Installation time: 2 hours
Difficulty level: 2 of 5
Additional Info

1977.5-91 models require clearance (machining) of the front driveshaft CV cluster to prevent binding. If the vehicle has a single exhaust, the cross-over pipe requires modification to clear front driveshaft.
Optional extended length brake hoses recommended.
Brake line/hose relocating hardware included in kit box. Both driveshafts need to be lengthened.
This is a SwampRunner Series lift system that is intended primarily for off-road or exhibition use. Reference the "Important Product Use" section of the Warranty for additional safety-related information.
Vehicles with 56" long rear spring can use spring if shackle hanger is relocated on frame for 52" long application.

If the vehicle is factory-equipped with auxiliary (dual) front shocks also order quantity two, part number 85150 Superide shocks.
88-91 Blazer/Jimmy and Suburban models require additional part number 315-88 bushing sleeve kit.
