K150B | Superlift 6 Inch Suspension Lift Kit with Bilstein Shocks (2011-2019 Silverado, Sierra 2500HD, 3500 HD 4WD)

2011-2019 Chevrolet Silverado 2500 HD, 3500 HD 4WD | 2011-2019 GMC Sierra 2500 HD, 3500 HD 4WD

K150B
Pricing: $3,447.19
Qty:
Free Ground Shipping | Exclusions Apply*

Description

This is a complete 6” lift kit for the 2011-2019 Chevy Silverado and GMC Sierra 2500HD and 3500HD
Provides 6” of Lift height
Does not fit Dually models
Does not work with Magnetic Ride Control Models
Does Not work with Factory Wheels

What does it include?

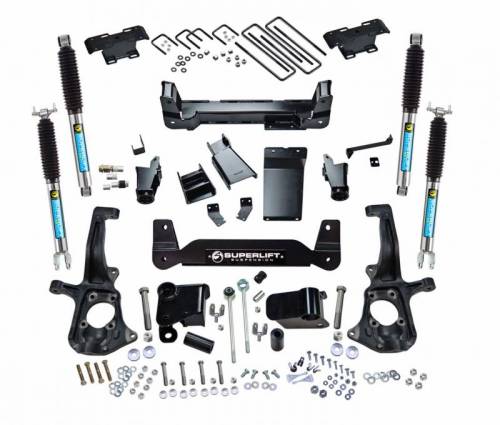

Steering knuckles, crossmembers, “No Drop” torsion bar brackets, bump stops, belly pan, brakeline brackets, front sway bar links, Front shock extensions and rear Shocks or Front and Rear Bilstein or Front and Rear FOX Shocks, and all hardware specific for
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

Superlift’s 6 Inch Lift kit for the 2011-2019 Silverado and Sierra 2500HD and 3500 HD utilizes a “NO DROP” Torsion Bar relocation bracket that keeps the torsion bar crossmember raised up and in the stock location. This design maximizes ground clearance at the frame for a clean look and prevents damaging the torsion bar assembly while off-roading.

Precision CNC Machines Steering Knuckles and heavy duty lower control arm crossmembers insure your Silverado or Sierra will have and maintain perfect alignment specifications.

This Kit features the following Shock options: Superlift Shocks(Rear Only), Front and Rear Bilstein 5100 Series Shocks, or Front and Rear Fox® Performance Series 2.0 IFP shocks – Front and Rear.

The rear lift is achieved with a heavy duty fabricated rear block. The primary axle u-bolts are captured in the upper and lower plates with the secondary u-bolts attached to the OE leaf Spring to reduce pinion wrap.

This kit includes steering knuckles, crossmembers, torsion bar brackets, front sway bar links, belly pan, brakeline brackets, bump stops, rear block kit and shocks. All required parts are included to make sure your Silverado or Sierra handles and performs just like a stock truck!

Features:
Superlift Shocks (Rear Only), Front and Rear Bilstein 5100 or Front and Rear Fox® Performance Series 2.0 IFP Shocks – Front & Rear
Adds Clearance for 35-37 Inch diameter Tires
Maximum Ground Clearance
Rear lift is achieved with Block and & U-bolt Kit
“No Drop” Torsion Bar Brackets
Backed by our Limited Lifetime Warranty

Benefits:
Retains OEM caster and camber alignment specifications
Maintains ride quality and handling characteristics
Designed using Original Equipment (OE) CAD data for accuracy.
Compatible with Factory Stabilitrac® and Anti-skid control features (No Problem or irritating dash lights)
No Excessive Ball Joint or Steering Components

NOTES:
Installation time: 8 to 9 Hours
Difficulty level: 4 of 5

CAN NOT USE STOCK 17 or 18 INCH WHEELS
DOES NOT FIT DUALLY MODELS
DOES NOT WORK WITH FACTORY WHEELS
This suspension kit WILL NOT WORK with any late model GM Truck or SUV equipped with MAGNERIDE from GM.
If Truck is equipped with overload leaf springs, longer u-bolts are required. u-bolt part number 11894.

Application List

2011-2019 Chevrolet Silverado 2500 HD 4wd
2011-2019 Chevrolet Silverado 3500 HD 4wd
2011-2019 GMC Sierra 2500 HD 4wd
2011-2019 GMC Sierra 3500 HD 4wd

Tires & Wheels

Tire Wheel Backspacing Offset
35 x 12.5 18 x 9 4.5 - 4.625 -
35 x 12.5 20 X 9 5 - 6 -
37 x 12.5 18 x 9 4.5 - 4.625 -
37 x 12.5 20 x 9 5 - 6 -



IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.



Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
