DJM2045L-55LTD | DJM Suspension 5 Inch Front / 5 Inch Rear Lowering Kit (1973-1987 C10 Pickup 2WD with 1.0 Inch Rotors)

1973-1987 Chevrolet, GMC C10 Pickup 2WD | 1.0 inch Thick Brake Rotors

DJM2045L-55LTD
Pricing: $960.84
Qty:
Free Ground Shipping | Exclusions Apply*

Description

1973 – 1987 C10 Complete DJM 5/5 Kit
Note: Measure the width of your disc brake rotor - why? read below

The good old drop spindle, as classic as the truck it’s self, sports a 3? drop in the front. Whats important here is to be sure to measure the width of your brake rotor. You will have either a 1" or 1.25" rotor. If you have a 1.25" rotor use (DJM2045H-5/5). Pair the spindles up with a set of 2" engineered DJM drop springs, combined you end up with about 5" of total drop in the front!

The rear is a flip kit where you move the axle from beneath the leaf spring to on top of the leaf spring. No “C-section” required and there are new u-bolts and leaf spring plates included to replace the original parts if they need to be replaced.

Vehicle Applications

1973-1987 Chevrolet C-10 Pickup 2wd
1973-1987 GMC C-10 Pickup 2wd

* 1.0 Inch Thick Brake Rotors

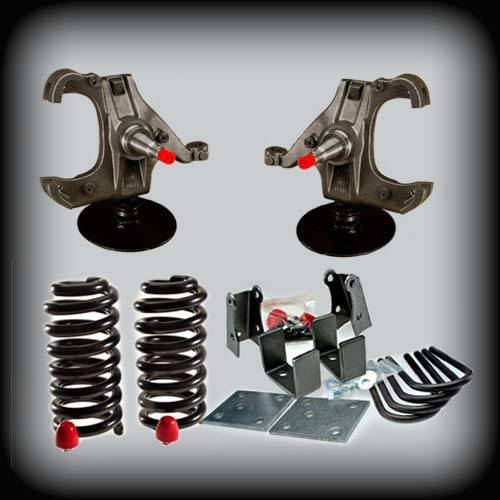

Components

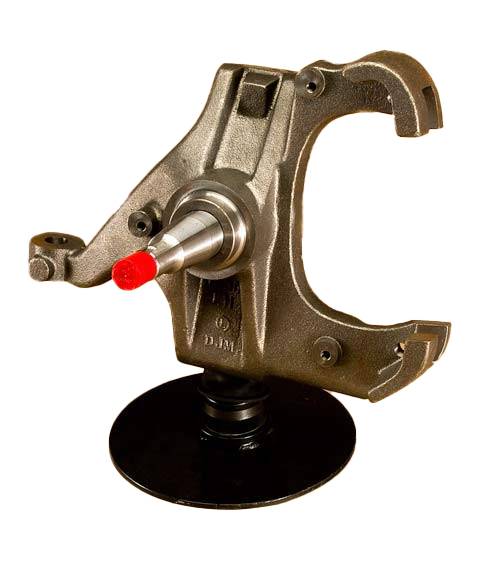

DS2045L-3 3 Inch Front Drop Spindles

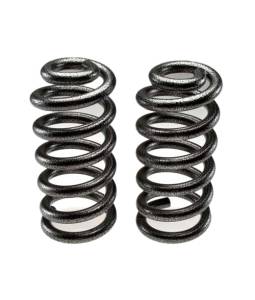

CS2353-2 2 Inch Front Lowering coils

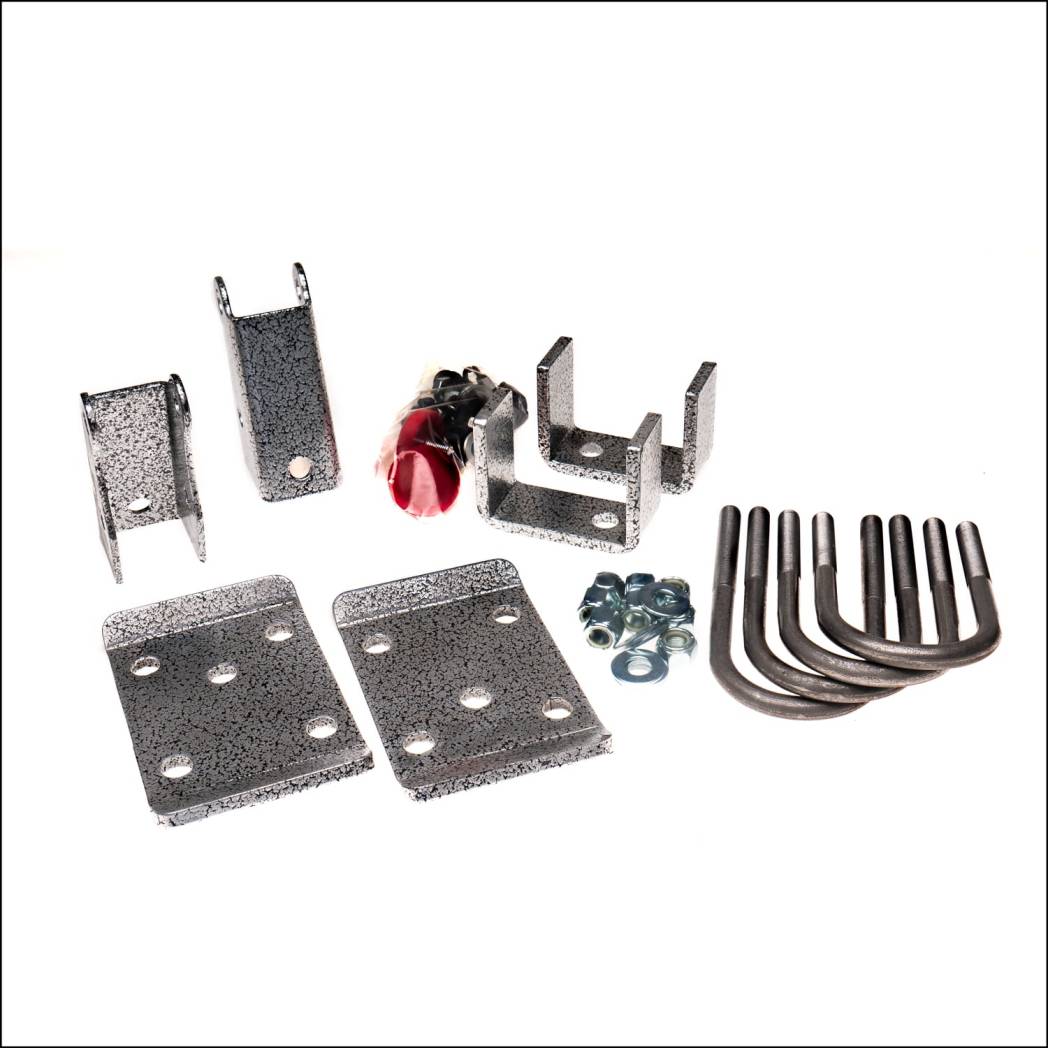

FK1024-5LTD 5 Inch Rear Flip Kit with U Bolt

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 110.0 lbs.
  • W16.0000” x H22.0000” x L36.0000”
  • Free Ground Shipping | Exclusions Apply*
