K144 | Superlift 4 Inch Suspension Lift Kit with Shadow Shocks (2013-2018 Ram 3500 4WD | Diesel)

2013-2018 Ram 3500 Pickup 4WD | Diesel ONLY

K144
Pricing: $2,196.19
Qty:
Free Ground Shipping | Exclusions Apply*

Description

This is a complete replacement radius arm suspension Lift Kit for the 2013-2018 Dodge Ram 3500 4WD – diesel engine
Provides 4” lift height
Includes rear blocks and front and rear Superlift shock absorbers

What does it include?

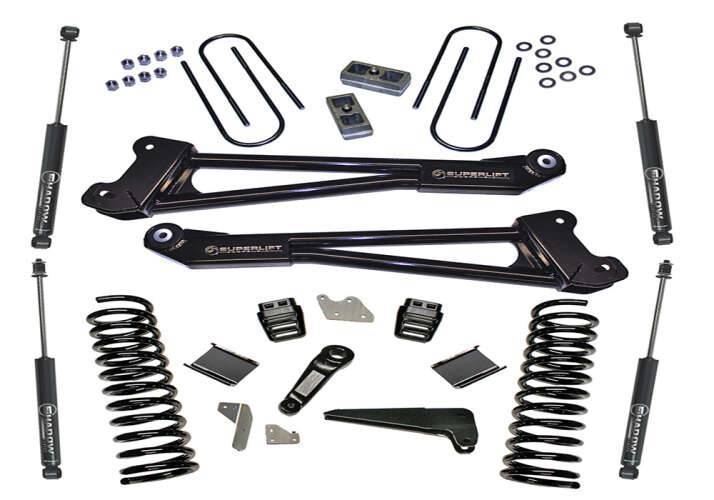

Front lift includes 4” coil springs, high clearance radius arms, track bar bracket, pitman arm, sway bar correction, bump stops, brake line brackets, Superlift shocks or Bilstein shocks, or Fox Shocks and all required hardware
Rear lift includes a 2” block kit, Superlift shocks or Bilstein shocks, or Fox Shocks and all required hardware
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

Superlift’s 4-Inch Lift kit for the 2013-2018 Dodge Ram 3500 HD featuring replacement radius arms and Fox® performance series 2.0 IFP shocks. These replacement Radius Arms that help locate the axle front-to-rear awhile allowing maximum ground clearance, additional clearance for larger tires and Cleveite® bushings for superior dampening. Superlift Suspension intentionally over-builds our suspension kits to be the best. Our uniquely engineered design adds strength and durability and has bonus features that others do not offer.

This kit includes rear coil spacers, high clearance radius arms, front and rear Fox® Performance 2.0 Shocks. All required parts are included to make sure your Ram 3500 HD handles and performs just like a stock truck!

Features:
Superlift | Bilstein® 5100 Series | Fox® Performance Series 2.0 IFP Shocks – Front & Rear
Replacement Front Coil Spring improves ride quality while the rear coil spaces maintain load capacity
Massive tubular Replacement Radius Arms with Cleveite® bushings
Offset Radius arms for additional clearance of larger tires
Radius Arms offer maximum ground clearance
Radius Arms feature a “true flat” jack point surface
Track bar relocation bracket prevents stud bind and steering wheel kick
Pitman Arm relieves drag link angle to prevent bump steer/wandering
Backed by our Limited Lifetime Warranty

Benefits:
Retains OEM caster and camber alignment specifications
Maintains ride quality and handling characteristics
Designed using Original Equipment (OE) CAD data for accuracy.

NOTES:
Installation time: 7 hours
Difficulty level: 3 of 5

Does not fit Power Wagon Models
Does not fit models with factory air suspension

Application List

2013-2018 Ram 3500 Pickup 4wD | Diesel

Tires & Wheels

Tire Wheel Backspacing Offset
35 x 12.5 17 x 9 4.5 - 5 -
35 x 12.5 18 x 9 4.5 - 5 -
35 x 12.5 20 x 9 4.5 - 5 -



IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
