20001 | VIAIR Ultra Duty OBA (Onboard Air System) For Tires Up To 37 Inch | 200 PSI/1.86 CFM, 2.5 Gallon Tank

VIAIR’s Ultra Duty Onboard Air System is a pre-packaged compressed air solution that provides an industry-leading, 200 PSI rated, 100% duty cycle 480C compressor,2.5 gallon air tank, and all components needed to install a working system capable of inflating tires of virtually any size.

All Fittings are NPT rated unless otherwise noted. Wiring harness NOT included.

Please Note:

• Pressure Switch w/Relay (PNs 90110, 90111, 90113, 90118) is not a sealed unit and should be installed in an area protected from the elements to prevent damage and/or failure.
• Use thread sealant for proper installation. Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

FILL RATES

• 0 to 200 PSI 5 min. 02 sec. (± 10 sec.)
• 165 to 200 PSI 1 min. 30 sec. (± 05 sec.)

35" x 12.5" Fill Rate

• 0 to 30 PSI 6 min. 15 sec. (± 15 sec.)
• 15 to 30 PSI 3 min. 15 sec. (± 10 sec.)

37" x 12.5" Fill Rate

• 0 to 30 PSI 7 min. 00 sec. (± 15 sec.)
• 15 to 30 PSI 3 min. 40 sec. (± 10 sec.)

SPECIFICATIONS

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI
• Max. Working Pressure: 200 PSI
• Max. Amp Draw: 23 Amps
• Ingress Protection Rating: IP67

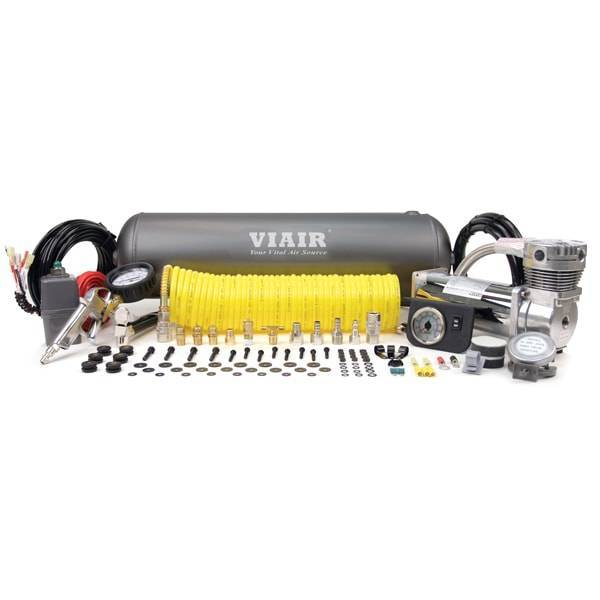

FEATURES

• 2.5 Gallon 200 PSI VIAIR Air Tank
• 480C Chrome VIAIR Air Compressor
• w/Thermal Overload Protector
• Tire Inflation Gun with 200 PSI Gauge
• Dash Panel Gauge with ON/OFF Switch
• 30ft. Coil Hose with Quick Connects
• Pressure Switch (165 PSI on, 200 PSI off)
• Reducer: 1/8” (F) to 1/4” (M)
• Reducer: 3/8” (F) to 1/4” (M)
• 1/4” Quick Connect Stud (F)
• 1/4” Quick Connect Coupler (F)
• 1/4” 250 PSI Safety Valve
• 1/4” Drain Cock
• (3) 1/4” Compression Fittings
• 20ft. 12-Gauge Wire with Inline Fuse Holder
• 4” Strip of Continuous Grommet Material
• Accessory Airline
• Electrical Connections
