DJM2045L-35LTD | DJM Suspension 3 Inch Front / 5 Inch Rear Lowering Kit (1973-1987 C10 Pickup 2WD with 1.0 Inch Rotors)

1973-1987 Chevrolet, GMC C10 Pickup 2WD | 1.0 inch Thick Brake Rotors

DJM2045L-35LTD
Pricing: $1,003.54
Qty:
Free Ground Shipping | Exclusions Apply*

Description

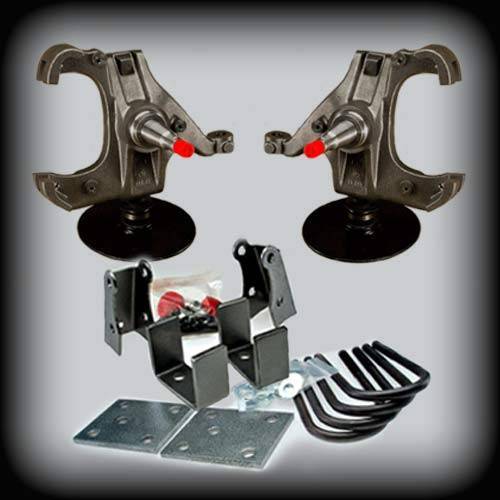

1973-1987 C10 Complete 3 inch front / 5 inch rear Lowering Kit (1 inch disc brakes)

Note: For trucks with 1" disc brake rotor only.

Drop spindles, as classic as the truck it’s self, sport a 3″ drop in the front. What's important here is to be sure to measure the width of your brake rotor. You will have either a 1″ or 1.25″ rotor. If you have a 1.25″ rotor use (DJM2045H-3/5). The rear is a flip kit where you move the axle from beneath the leaf spring to on top of the leaf spring. No “C-section” required and there are new u-bolts and leaf spring plates included to replace the original parts if they need to be replaced.

Shocks are included. DJM recommends:

  • Front Shock 1409 (sold each)
  • Rear Shock 2100 (sold each)

Application List

1973-1987 Chevrolet C-10 Pickup 2WD
1973-1987 GMC C-10 Pickup 2WD

* 1.0 Inch This Brake Rotor

Components

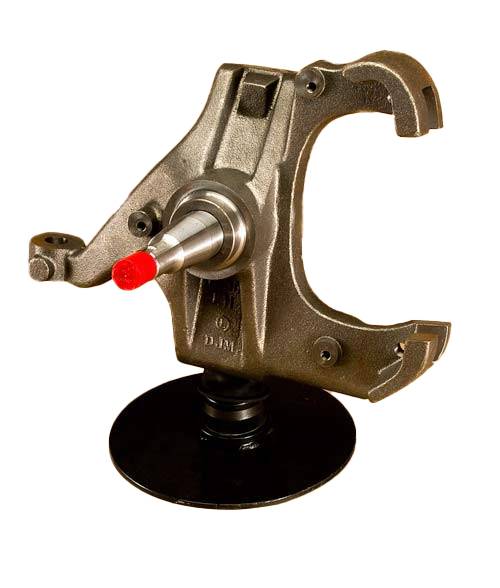

DS2045L-3 3 Inch Front Drop Spindles

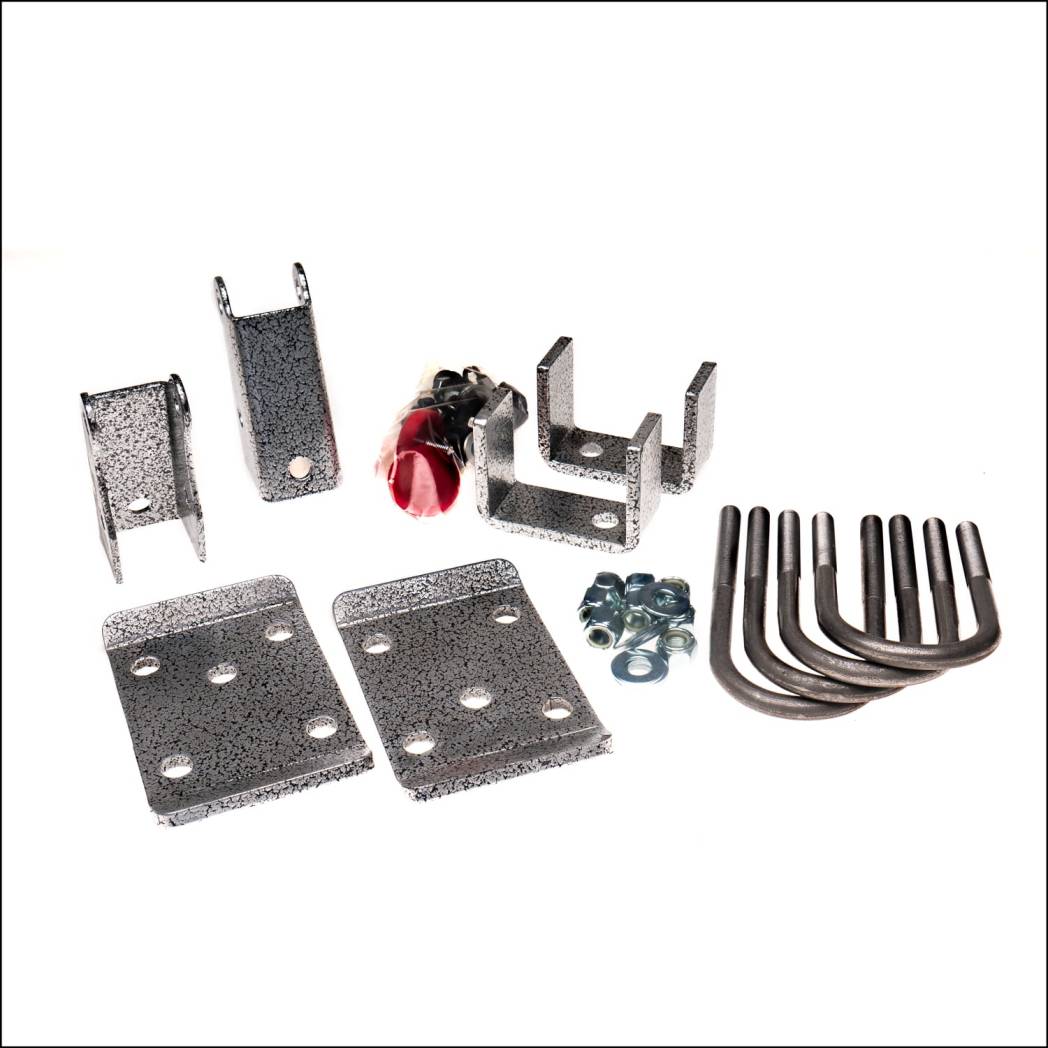

FK1024-5LTD 5 Inch Rear Flip Kit

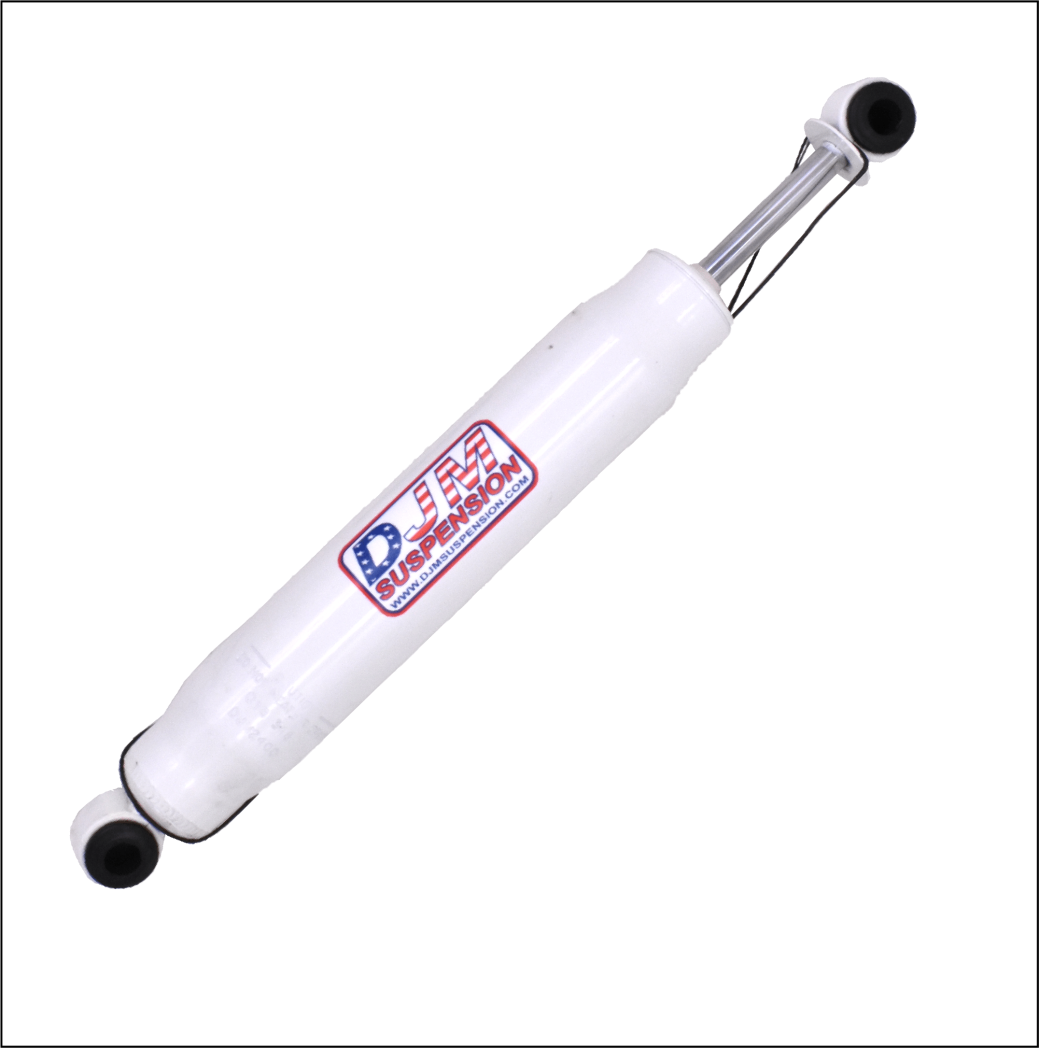

DJM1409 Front Shock
DJM2100 Rear Shock

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 75.0 lbs.
  • W12.0000” x H12.0000” x L36.0000”
  • Free Ground Shipping | Exclusions Apply*
