DJM2045H-55LTD | DJM Suspension 5 Inch Front / 5 Inch Rear Lowering Kit (1973-1987 C10 Pickup 2WD with 1.25 Inch Rotors)
1973-1987 Chevrolet, GMC C10 Pickup 2WD | 1.25 inch Thick Brake Rotors
DJM2045H-55LTD
Pricing:
$1,287.67
Description
1973 – 1987 Chevy/GMC C10 5inch Front/5inch Rear Lowering Kit (1.25 inch rotor)
You will have either a 1 inch or 1.25 inch rotor. If you have a 1″ rotor use (DJM2045L-5/5). The 3 inch lowering spindle combined with a set of 2 inch engineered springs will lower the front about 5 inches total.
The rear is a flip kit where you move the axle from beneath the leaf spring to on top of the leaf spring. No “C-section” required and there are new U-bolts and leaf spring plates included to replace the original parts if they need to be replaced.
Shocks are included. DJM recommends:
- Front Shock 1309 (Sold Each)
- Rear Shock 2100 (Sold Each)
Application List
1973-1987 Chevrolet C-10 Pickup 2WD
1973-1987 GMC C-10 Pickup 2WD
* 1.25 Inch Thick Brake Rotors
1973-1987 GMC C-10 Pickup 2WD
* 1.25 Inch Thick Brake Rotors

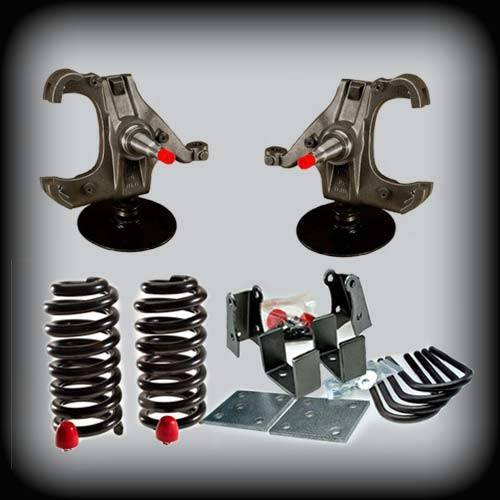

Components

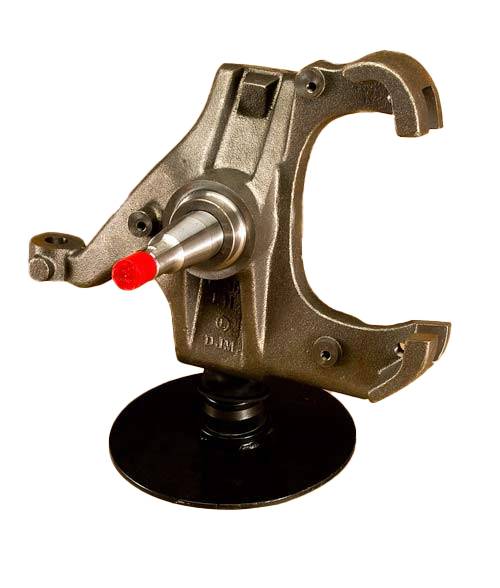

DS2045L-3 3 Inch Front Drop Spindles

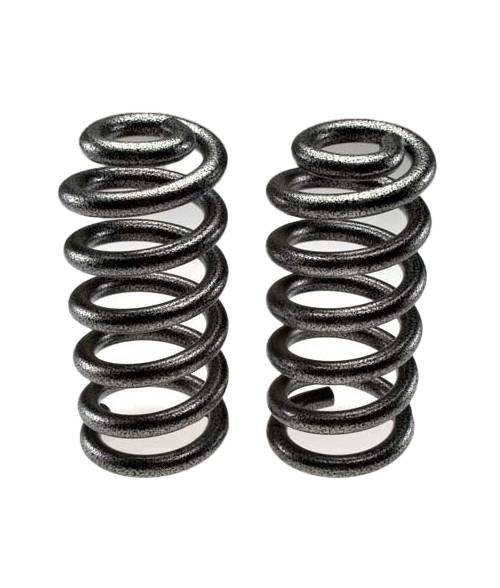

CS2353-2 2 Inch Front Lowering coils

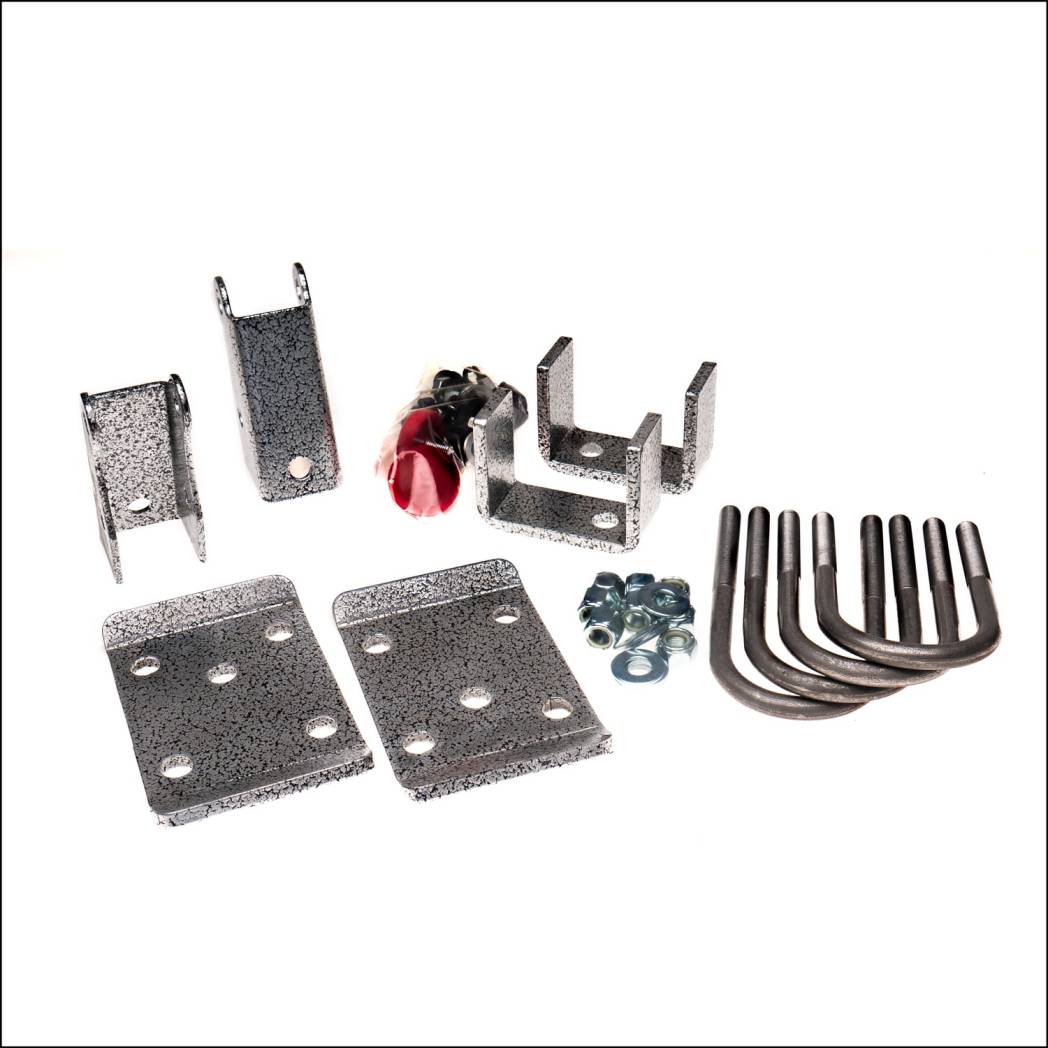

FK1024-5LTD 5 Inch Rear Flip Kit
CS2353-2 2 Inch Front Lowering coils
FK1024-5LTD 5 Inch Rear Flip Kit
Details
- DJM2045H-55LTD
- DJM2045H-55LTD
- DJM Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 75.0 lbs.
- W12.0000” x H12.0000” x L36.0000”
- Free Ground Shipping | Exclusions Apply*
