51800 | 4.5 Inch Lift Kit | Ford Raptor 4WD (2019-2020)

2019-2020 Ford Raptor 4WD

51800
Pricing: $1,815.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Transform your F-150 Raptor into the ultimate BEAST with Rough Country's 4.5in Lift Kit. This innovative kit is designed to retain key components of the factory suspension so that you get the stance and lift height you want while maintaining the balance of smooth highway ride quality and off-road performance that Ford built into this impressive platform.

Give your F-150 Raptor enough ground clearance to run up to 37x12.50 tires for an aggressive, lifted stance that compliments the rugged, monster design of the Raptor build. This all-inclusive kit features a set of front and rear crossmembers, lifted knuckles and a set of anti-wrap, fabricated rear blocks with built-in bumpstops!

Rough Country's 4.5in F-150 Raptor kit is designed to preserve factory like performance and handling. This kit utilizes a strut spacer assembly, which provides lift while retaining the factory strut. A rear shock extension assembly preserves the factory upgraded shock absorbers, allowing you to get the full effect of the specially-designed OEM components. This kit also preserves the factory track width, keeping everything nice and tucked-in for a larger-than-life look! Includes a Lifetime Replacement Guarantee!

FEATURES
Retains factory shocks and struts for incredible ride quality
Increased ground clearance
Retains factory track width
Levels the front of the vehicle with the rear
Includes fabricated, anti-wrap rear blocks w/ built-in bump stops
maintain stock ride quality while eliminating common lift block problem

NOTES - IMPORTANT
Does NOT fit Single Cab Models
Requires cutting and drilling
Factory Wheels cannot be used
Aftermarket wheels must be 18in or larger
Aftermarket wheels must NOT exceed 9in width / 0mm offset / 5in backspacing
Due to manufacturing, dimension variances, and inflation, all tire and wheel combinations should be tested prior to installation

SPECS
SKU 51800
Est. Install Time 5-6 hours
Recommended Tire Size 37x12.50 R20
Recommended Wheel Backspacing 5in

Vehicle Applications

2019 - 2020 Ford F-150 Pickup

NOTES - IMPORTANT
Does <>NOT fit single cab models.
Does <>NOT fit models equipped with FOX Live Valve struts.
Requires cutting and drilling.
Factory wheels cannot be used.
Aftermarket wheels must be 18in or larger.
Aftermarket wheels must NOT exceed 9in width / 0mm offset / 5in backspacing.
Due to manufacturing, dimension variances, and inflation, all tire and wheel combinations should be tested prior to installation.

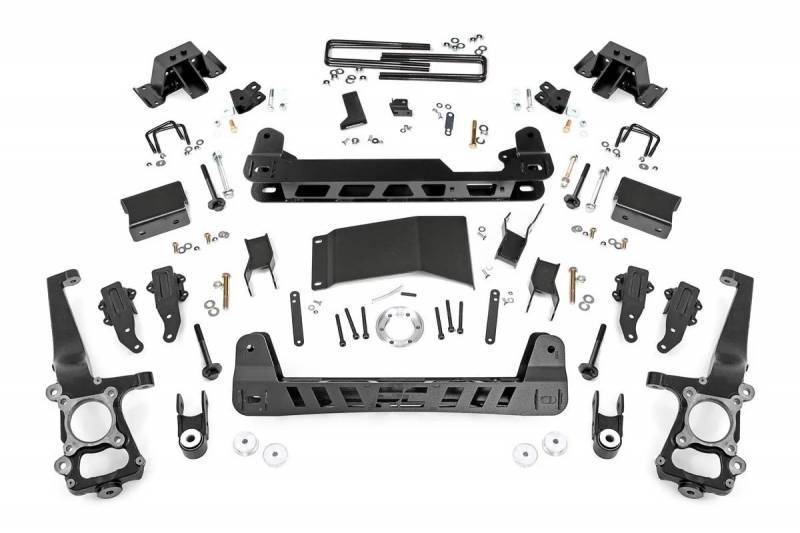

Components

FRONT
Lifted knuckles
Strut spacer assembly
Front crossmember
Rear crossmember
Sway-bar drop brackets
Differential drop brackets
Brake line brackets
Driveshaft spacer
Hardware

REAR
Fabricated anti-wrap lift blocks
Brake line relocation brackets
Rear Factory Shock Spacer
U-bolts
Hardware

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 125.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
