501063 | 2in GM Strut Leveling Kit (14-18 1500 PU)

Chevrolet, GMC
2014-2018 Silverado 1500 2/4wd
2014-2018 Sierra 1500 2/4wd

501063
Pricing: $461.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Level your vehicle from front to rear while preserving the smooth, factory ride quality with Rough Country's N3 Strut Leveling Kit! This easy-to-install kit boosts the front end, removing the unsightly factory rake and giving your truck increased ground clearance and aggressive good looks.

Rough Country’s N3 Struts feature a massive bore and chrome plated piston rod with leak-proof piston seal for exceptional durability during off-road use. Each strut is tuned to OEM specs and includes a variable dampening system for outstanding handling and control on all road conditions. These struts offer improved tire contact with the road for increased stability and performance. Each lifted strut is a full replacement of your OEM equipment, engineered for a pain-free installation. Simply remove the factory strut and replace for an instant upgrade! No complicated strut disassembly required!

FEATURES
Easy bolt-on installation
Includes pre-loaded coil
No strut disassembly required
Maintains smooth, factory-like ride
Increased ground clearance
Application specific velocity sensitive valving
Structurally engineered for lifted applications
Levels the front of the vehicle by 2-inches, eliminating the need for strut spacers
Nitrogen gas charged to improve ride, handling, and reduce shock oil aeration
Offers improved tire contact with the road for increased stability and performance
Infinitely Variable Damping
Leak-proof piston seal
Special formulated low friction shock oil
Massive 1 3/8in Bore
Hardened chromed piston rod provides superior corrosion resistance and enhances sealing properties
3-year Limited Warranty
Black powder coat finish

NOTES - IMPORTANT
Cannot be installed in conjunction with a strut spacer

SPECS
SKU 501063
Bottom Mount Eye
Adjustable No
Est. Install Time 1-2 hours

Vehicle Applications

2014 - 2018 Chevrolet Silverado 1500
2014 - 2018 GMC Sierra 1500

NOTES - IMPORTANT
Cannot be installed in conjunction with a strut spacer

Tires & Wheels

285/70R17 Factory 17 6x5.5 - -
285/65R18 Factory 18 6x5.5 - -
285/55R20 Factory 20 6x5.5 - -
285/70R17 17x8.5 6x5.5 +0 -
265/70R17 17x8.5 6x5.5 +0 -
265/70R17 17x8.5 6x5.5 +1 -
285/70R17 17x9 6x5.5 +0 Minor Trimming
265/70R17 17x9 6x5.5 +0 -
285/70R17 17x9 6x5.5 +1 Minor Trimming
265/70R17 17x9 6x5.5 +1 -
285/70R17 17x9 6x5.5 +18 -
265/70R17 17x9 6x5.5 +18 -
265/70R17 17x9 6x5.5 +20 -
265/65R18 18x8.5 6x5.5 +0 -
265/65R18 18x8.5 6x5.5 +1 -
285/65R18 18x9 6x5.5 +0 Minor Trimming
265/65R18 18x9 6x5.5 +0 -
285/65R18 18x9 6x5.5 +1 Minor Trimming
265/65R18 18x9 6x5.5 +1 -
285/65R18 18x9 6x5.5 +18 -
265/65R18 18x9 6x5.5 +18 -
285/65R18 18x9 6x5.5 +19 -
265/65R18 18x9 6x5.5 +19 -
285/65R18 18x9 6x5.5 +20 -
265/65R18 18x9 6x5.5 +20 -
285/55R20 20x9 6x5.5 +0 Minor Trimming
265/55R20 20x9 6x5.5 +0 -
285/55R20 20x9 6x5.5 +1 Minor Trimming
265/55R20 20x9 6x5.5 +1 -
285/55R20 20x9 6x5.5 +18 -
265/55R20 20x9 6x5.5 +18 -
285/55R20 20x9 6x5.5 +20 -
265/55R20 20x9 6x5.5 +20 -

Components

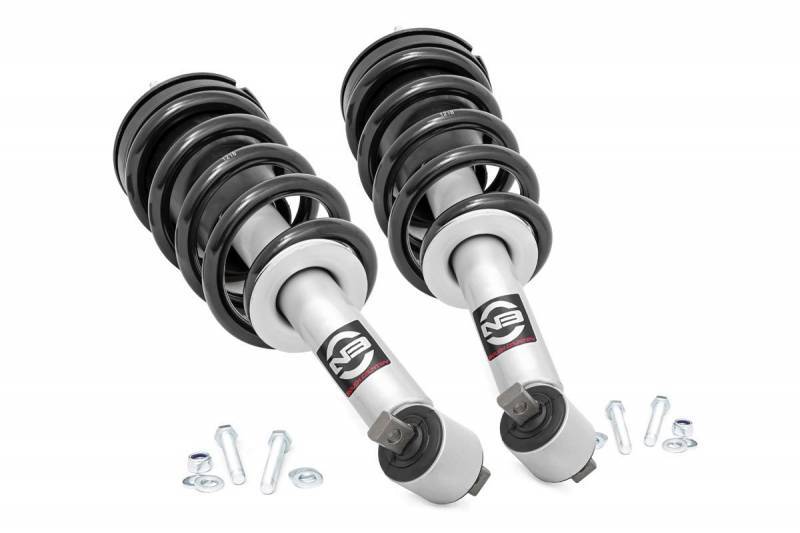

(2) Premium N3 Lifted Struts

Details

  • 501063
  • 501063
  • 843030170714
  • Rough Country
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 57.0 lbs.
  • W13.8000” x H7.1000” x L29.6000”
  • Free Ground Shipping | Exclusions Apply*
