This is a complete replacement knuckle style suspension Lift Kit for the 04-08 Ford F-150 4WD
Provides 6” lift height
Includes fabricated rear lift blocks and 5100 Series Bilstein shock absorbers.
What does it include?
All brackets, cross-members, shocks, steering knuckles, u-bolts, spacers, and hardware required specific to the 04 - 08 4wd Ford F-150.
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation
Features:
Direct bolt-on (No Weld Design)
Allows the use of 18" or larger factory wheels
Makes room for up to 35" tires
Maintains awesome ride quality and handling characteristics
Aligns to OEM specifications
Corrects front to rear factory rake
Retains OEM track width

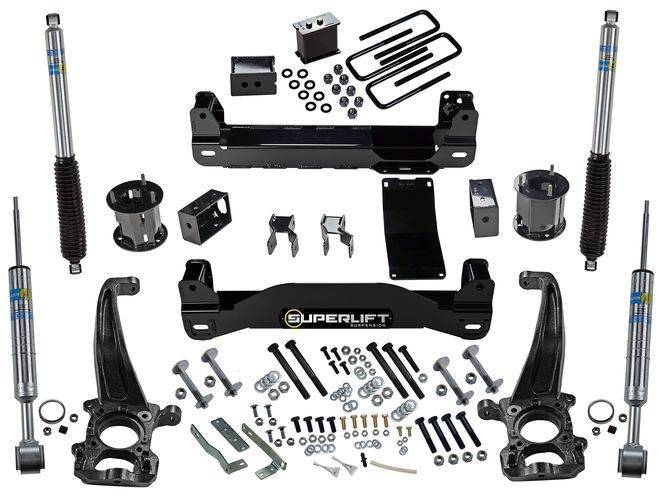

Includes:
Front
CNC machined extended ductile iron steering knuckles
CNC machined billet aluminum driveshaft spacer
All fabricated steel components are laser cut, CNC formed finished with a durable black powder coat
Front top mount strut spacers
One-piece front and rear cross members
Front differential skid plate
Sway-bar relocation brackets
Differential relocation brackets
Brake line relocation brackets
Eccentric cam-bolts
Rear
Fabricated lift blocks
Brake line relocation bracket
U-bolts and hardware
Compression stop extensions
Superlift Shocks (2) OR Bilstein Shocks (2)
2004-2008 Ford F-150 Pickup 4WD
