K178B | Superlift 4.5 Inch Suspension Lift Kit wtih Bilstein Shocks (2009-2014 F150 4WD)

This is a complete replacement knuckle style suspension lift kit for the 2009-2014 Ford F-150 4WD
Provides 4.5” lift height
Includes fabricated rear lift blocks and rear 5100 Series Bilstein shock absorbers

What does it include?

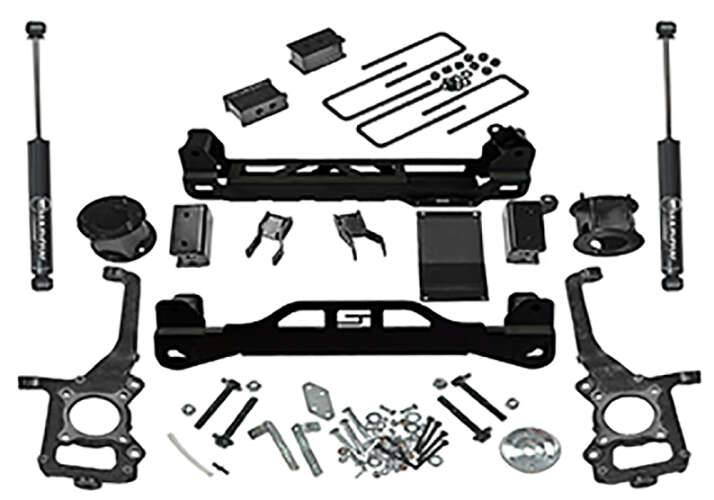

All brackets, cross-members, shocks, steering knuckles, u-bolts, spacers, and hardware required specific to the 2009-2014 4WD Ford F-150
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

Superlift’s 4.5 Inch Lift kit for the 2009-2014 Ford F-150 now features a variety of shock options, from Superlift Shocks to Bilstein 5100 Series Shocks to Fox® performance series 2.0 IFP shocks. This shock variety will allow you find your ride quality. Superlift Suspension intentionally over-builds our suspension kits to be the best. Our uniquely engineered design adds strength and durability and has bonus features that others do not offer.

This is a complete replacement knuckle style suspension lift kit that provides 4.5 inches of lift and includes fabricated rear blocks and Rear Superlift, Bilstein or Fox® Performance 2.0 Shocks. All required parts are included to make sure your Ford F-150 handles and performs just like a stock truck!

Features:
Replacement Knuckle style suspension lift kit
Direct bolt-on (No Weld Design)
Allows the use of 18” or larger factory wheels
Allows clearance for up to 33-35” tires
Fabricated Rear Block to ensure axle angle and prevent axle wrap
Rear Shocks - Superlit or Bilstein 5100 or Fox® 2.0 shocks

Benefits:
Aligns to OEM Specifications
Maintains ride quality and handling characteristics
Corrects Front to Rear factory rake
Retains OEM Track Width
Designed using Original Equipment (OE) CAD data for accuracy.

Front:
CNC Machined extended ductile iron steering knuckles
CNC machined billet aluminum driveshaft spacer
All fabricated steel components are laser cut, CNC formed finish with a durable powder coating
Front top mount strut spacers
One-piece front and rear cross members
Front differential skid plate
Sway-bar relocation brackets
Differential relocation brackets
Brake line relocation brackets
Eccentric cam-bolts

Rear:
Fabricated rear Blocks – provides proper pinion angle to eliminate axle wrap and driveline vibrations
Brake line relocation brackets
U-bolts and hardware
Compression stop extensions
Superlift Shocks or Bilstein® 5100 Series or Fox® Performance Series 2.0 Shocks (2 shocks)

Notes:
Installation time: 7-8 hours
Difficulty level: 3 of 5

Does not fit Single Cab Truck models
Models equipped with a two-piece rear driveshaft will need to order an additional kit box 9935 for the carrier bearing shims
