K237KG | Superlift 6 inch 4 Link Suspension Lift Kit with King Coilovers & Shocks (2011-2016 F250, F350 Super Duty 4WD | Diesel)

This is a complete King Shocks coilover 4 link arm suspension lift kit for the 2011-2016 Ford F-250/F-350 4WD – diesel engine
Provides 6” lift height
This kit also comes in a Superlift or 5100 Series Bilstein shock option

What does it include?

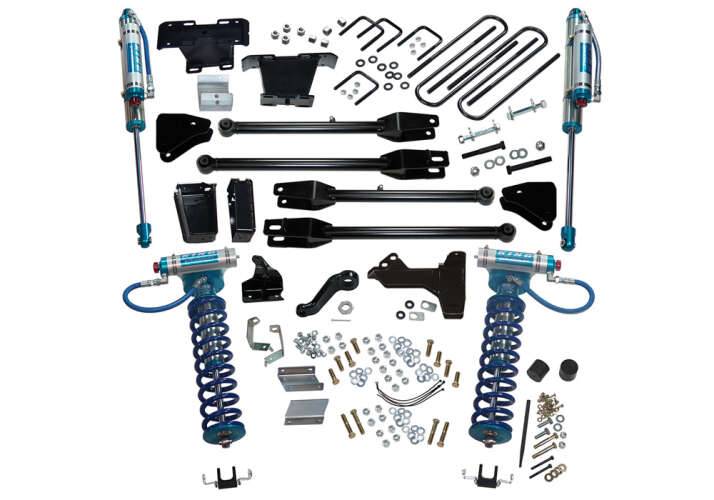

Front coil springs, track bar bracket, 4 link arms, drop pitman arm, sway bar correction, shocks, rear block and u-bolt kit, and all hardware required specific to the 2011-2016 4WD Ford F-250/F-350 ALL Engines.
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

This is the Superlift 6” suspension lift kit with KING coilovers and rear reservoir rear shocks for the 2011-2016 Ford F-250 and F-350 Super Duty 4WD – THE KING OF THE ROAD .

KING Shocks and Superlift united forces to provide you a precision engineered lift system with perfectly matched and specifically valved shocks. Using race-winning technology, King Shocks front coil overs and rear shocks both have external reservoirs and are both easily adjustable with the simple twist of a knob. Select from Super Soft to Super Firm to create a ride perfectly suited to you. Soften up when just cruising the streets or firm it up when hammering the rough terrain or carrying an extra payload. Discover for yourself the reason the world’s toughest race winners choose King Shocks.

For Superlift's part, OEM CAD models and the latest 3D design software were used to precision engineer a suspension system that includes tubular 4-LINK arms designed to give your ride a truly custom look and an easy install. These heavy duty arms utilize a press fit REFLEX bushing for superior vibration damping, flexibility, and durability. The 4-LINK design optimizes the F-250 and F-350's suspension control and tire wear by limiting caster change through the cycle of the suspension.

Track bar relocation bracket, pitman arm, front sway bar correction, bump stop extension brackets, brake hose relocation brackets, rear lift, and all the necessary hardware is included to make certain this package is complete with everything you need to do the job right.

Notes:
Installation time: 8 hours
Difficulty level: 3 of 5

If the Ford F-250 or F-350 Super Duty is equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required. Part # 9669
This lift kit is packaged with rear blocks and u-bolts that are configured for the Ford F-250 and F-350 Super Duty with the factory 1-7/8" blocks WITHOUT top mount overloads. If your Ford is equipped with the factory 3.71" block or top mounted overloads, a longer rear u-bolt will be required. For Super Duty’s equipped with the 1-7/8" blocks and top overloads, part # 11734 will need to be purchased in addition to the lift kit. If the truck is equipped with the 3.71” block and the top mount overloads, it is recommended that the 3.71” block is replaced with the 1-7/8” block or the block provided with the lift kit be replaced with a slightly shorter block.
