Jeep
TJ-102 | Jeep 4 Inch Suspension Lift Kit
Jeep
2007-2018 JK Wrangler Unlimited
Does NOT Fit 2 Door
TJ-102
Pricing:
$625.44
Description
4in all-inclusive Suspension Lift!
kit comes with everything you need
This kit features lifted coil springs and coil correction plates, providing lift height and impeccable vibration dampening on any terrain.
FEATURES
Easy bolt-on installation
Increased ground clearance
Coil correction plates correct the rear coil spring angle by 10 degrees, allowing them to function more effeciently.
NOTES - IMPORTANT
Does NOT fit 2-door models.
2012-2018 models require exhaust modifications to clear the front driveshaft (#1030)
if using stock wheels 1.5in wheel spacers are required.
On Automatic equipped vehicles; due to use of an oversize driveshaft from the factory and inadequate factory clearance it may be possible for the front driveshaft to come in contact with the automatic transmission pan tearing the factory boot and rubbing on the shaft.
Generally this occurs during heavy articulation when front sway bar links are disconnected and longer shocks are installed. If this is found to occur, the proper procedure would be to replace the oversize factory shaft with an aftermarket smaller diameter shaft to increase clearance between the transmission and front driveshaft.
kit comes with everything you need
This kit features lifted coil springs and coil correction plates, providing lift height and impeccable vibration dampening on any terrain.
FEATURES
Easy bolt-on installation
Increased ground clearance
Coil correction plates correct the rear coil spring angle by 10 degrees, allowing them to function more effeciently.
NOTES - IMPORTANT
Does NOT fit 2-door models.
2012-2018 models require exhaust modifications to clear the front driveshaft (#1030)
if using stock wheels 1.5in wheel spacers are required.
On Automatic equipped vehicles; due to use of an oversize driveshaft from the factory and inadequate factory clearance it may be possible for the front driveshaft to come in contact with the automatic transmission pan tearing the factory boot and rubbing on the shaft.
Generally this occurs during heavy articulation when front sway bar links are disconnected and longer shocks are installed. If this is found to occur, the proper procedure would be to replace the oversize factory shaft with an aftermarket smaller diameter shaft to increase clearance between the transmission and front driveshaft.
Vehicle Applications
2007-2018 Jeep JK Wrangler Unlimited 4wd
2 Door Models ONLY
2 Door Models ONLY

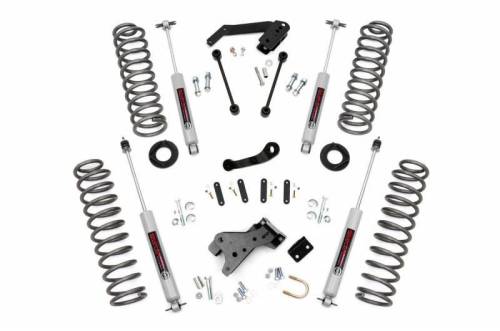

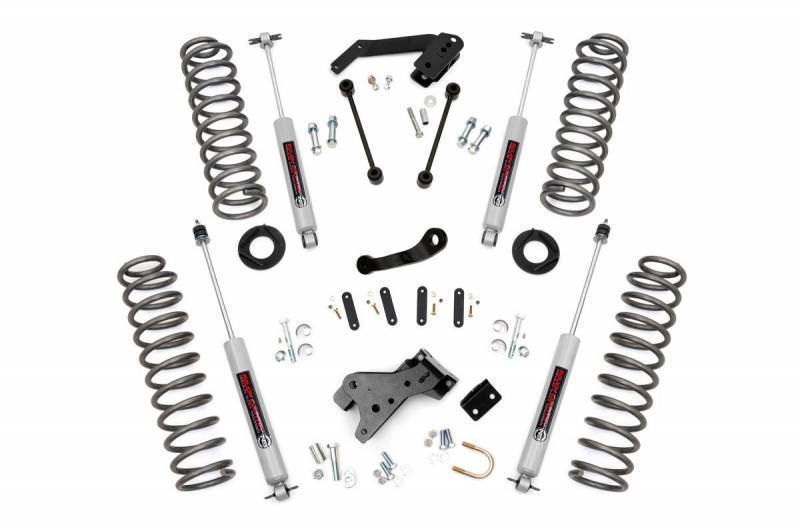

Components
FRONT
Lifted coil springs
Track bar drop bracket
Pitman arm
Brake line relocation brackets
Shock relocation brackets
Cam bolts
Hardware
REAR
Lifted coil springs
Extended sway-bar links
Coil correction plates
Track bar drop bracket
Brake line relocation brackets
Hardware
Lifted coil springs
Track bar drop bracket
Pitman arm
Brake line relocation brackets
Shock relocation brackets
Cam bolts
Hardware
REAR
Lifted coil springs
Extended sway-bar links
Coil correction plates
Track bar drop bracket
Brake line relocation brackets
Hardware
Details
- TJ-102
- TJ-102
- Lowriders Unlimited
- New
Categories
Shipping Information
- Item Requires Shipping
- 50.0 lbs.
- W20.0000” x H6.0000” x L22.0000”
- Free Ground Shipping | Exclusions Apply*
