53470 | 4.5 Inch Ford Suspension Lift Kit w/ (Diesel Engine, No Overloads)

Ford | 2015-2016 F-250 Super Duty 4wd | Diesel Engine, No Overloads

SKU: 53470

Pricing: $1,843.95

Description
Vehicle Applications
Components
Details
Shipping
Documents

Description

FEATURES
Easy bolt-on installation
Increased ground clearance
Levels the front with the rear of the vehicle
Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
Includes application valved N2.0 series shock absorbers which offer the best in balanced performance for on and off-road use.
Fabricated blocks are stronger and offer a longer lifespan than cast blocks.

NOTES - IMPORTANT
Does NOT fit F-350 models.
Does NOT fit gas engine models.
Does NOT fit dually models.
A carrier bearing drop bracket is needed for trucks equipped with a 2-piece rear driveshaft. (#1197)

SPECS
SKU 53470
Est. Install Time 4-6 hours
Recommended Tire Size 35x12.50 R17
Recommended Wheel Backspacing 4.5"

Vehicle Applications

2015 - 2016 Ford F-250 Super Duty

NOTES - IMPORTANT
Does NOT fit F-350 models.
Does NOT fit gas engine models.
Does NOT fit dually models.
A carrier bearing drop bracket is needed for trucks equipped with a 2-piece rear driveshaft.
(#1197)

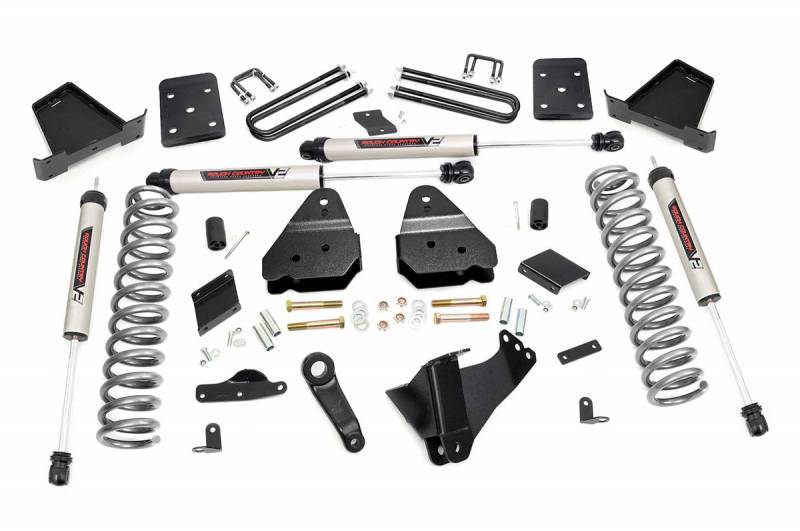

Components

FRONT
Lifted coil springs
Radius arm drop brackets
Sway-bar drop brackets
Track bar drop bracket
Stabilizer relocation brackets
Pitman arm
Brake line brackets
Bumpstop spacers
Hardware

REAR
Fabricated lift blocks
Brake line brackets
U-bolts
Hardware

SHOCKS
(4) V2 Monotube Shocks
