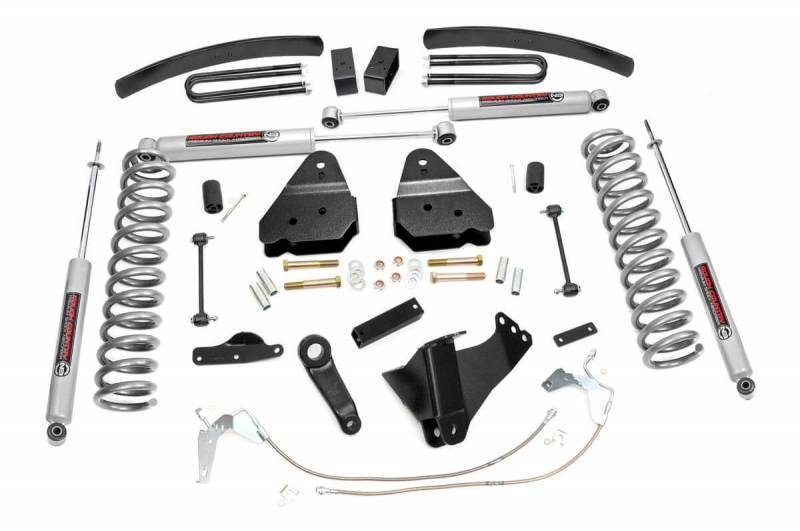

597.20 | 6 Inch Ford Suspension Lift Kit w/ Premium N3 Shocks (Gas Engine)

This suspension features luxury ride coil springs matching OE coils rates that are specifically designed for gas or diesel motors. A heavy duty track bar relocation bracket properly centers the axle and matches the steering angles created by the supplied drop pitman arm while the radius arm drop brackets maintain the Super Duty's O.E. caster angles. A steering stabilizer relocation bracket maintains proper steering control but a RC problem solver single unit is recommended with larger tires and a RC dual stabilizer is required when running 37in tires.

FEATURES
Easy bolt-on installation
Increased ground clearance
Levels the front with the rear of the vehicle
Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
Includes application valved N2.0 series shock absorbers which offer the best in balanced performance for on and off-road use.

NOTES - IMPORTANT
Does NOT fit dually models.
If vehicle is equipped with rear overload leafs, they will need to be removed.
Gas models may require exhaust modification to clear front drive shaft

SPECS
SKU 597.20
Est. Install Time 6-8 hours
Recommended Tire Size 37x13.50
Recommended Wheel Backspacing 4.5in
