31230 | Rough Country 3 Inch Lift Kit with Struts Spacers / Premium N3 Rear Shocks (2012-2018 Ram 1500 4WD)
2012-2018 Ram 1500 Pickup 2WD/4WD | 2019-2024 Ram 1500 Pickup 2WD/4WD Classic
Description
3 Inch Lift Kit | Strut Spacers / Premium N3 Rear Shocks | Ram 1500 4WD (2012-2018 & Classic)
Rough Country's 3-inch Bolt-On Kit offers easy installation and aggressive good looks at an incredible value. Take your truck to new heights with this excellent option for RAM 1500 pickups. This kit features a set of high-quality, forged aluminum Upper Control Arms designed to make alignment adjustments easier and durable rubber bushings. These arms are designed to promote a factory-like geometry by keeping the ball joint at optimum angles after lifting. This design allows for an improved, greater range of motion from the ball joint, with less stress, wear and tear.
Rough Country’s 3-inch Bolt-On Kit features a set of durable front and rear spacers to provide lift height from front to rear. Once installed, this kit gives your truck plenty of ride height for up to 33in tires while offering a clean, level look from front to rear.
This all-inclusive kit comes with everything you need, and installation is a piece of cake compared to other kits on the market! Featuring a 100% bolt-on installation process that requires zero cutting or drilling, this kit can be installed using common tools in a home garage and allows the truck to be returned to stock at any time if so desired. Best of all this kit features Rough Country’s Lifetime Replacement Warranty.
Features
- Easy Bolt-On installation.
- No Cutting or Drilling required!
- Includes new forged aluminum upper control arms.
- Control arms keep ball joints at optimum angles for less wear and tear.
- Control arms include durable rubber bushings for enhanced durability.
- Increased ground clearance.
- Levels the front and rear of the truck.
- Can be returned to stock.
Notes - Important
- Does NOT fit "TRX" models.
- Does NOT fit models with factory air ride suspension.
- Optional N3 struts do NOT fit V6 models.
- Models retaining factory wheels are advised to run no wider than a 11.5" wide tire.
- For additional clearance on models equipped with aggressive side wall tires a 0.25 wheel spacer is recommended.
Specs
Est. Install Time | 5-6 hours |
---|
Application List
StartYear | EndYear | Make | Model | Submodel | Drive |
---|---|---|---|---|---|
2012 | 2018 | Ram | 1500 | Big Horn | 4WD |
2012 | 2018 | Ram | 1500 | Express | 4WD |
2012 | 2018 | Ram | 1500 | Laramie | 4WD |
2014 | 2015 | Ram | 1500 | Laramie Limited | 4WD |
2012 | 2018 | Ram | 1500 | Laramie Longhorn | 4WD |
2015 | 2018 | Ram | 1500 | Limited | 4WD |
2014 | 2018 | Ram | 1500 | Lone Star | 4WD |
2012 | 2016 | Ram | 1500 | Outdoorsman | 4WD |
2015 | 2018 | Ram | 1500 | Rebel | 4WD |
2012 | 2018 | Ram | 1500 | SLT | 4WD |
2012 | 2018 | Ram | 1500 | Sport | 4WD |
2012 | 2012 | Ram | 1500 | ST | 4WD |
2012 | 2018 | Ram | 1500 | Tradesman | 4WD |
2019 | 2019 | Ram | 1500 Classic | Big Horn | 4WD |
2019 | 2022 | Ram | 1500 Classic | Express | 4WD |
2019 | 2019 | Ram | 1500 Classic | Laramie | 4WD |
2019 | 2019 | Ram | 1500 Classic | Lone Star | 4WD |
2019 | 2022 | Ram | 1500 Classic | SLT | 4WD |
2019 | 2024 | Ram | 1500 Classic | Tradesman | 4WD |
2019 | 2024 | Ram | 1500 Classic | Warlock | 4WD |

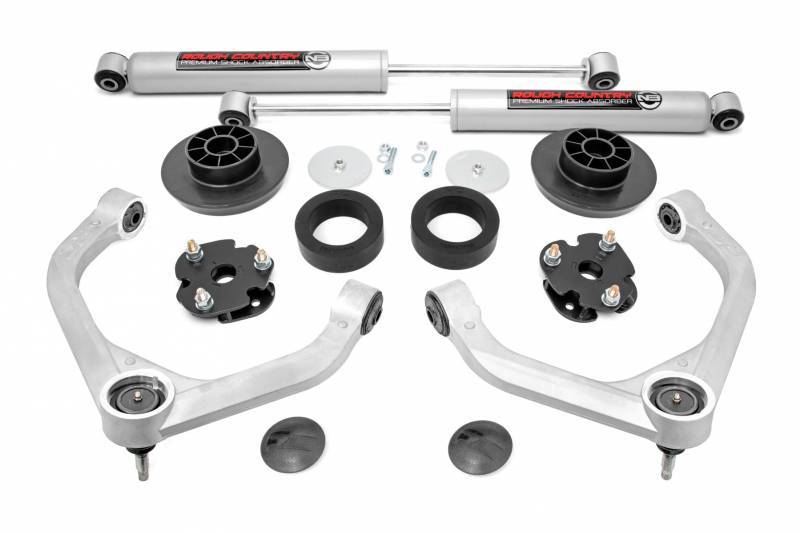

Components
(2) Upper control arms
(2) Strut preload spacers
(2) Strut spacers
REAR
(2) Coil spacers
Hardware
SHOCKS
Premium N3 Series (Rear)
Shocks
Premium N3 Shocks
Improve your on and off-road ride quality with Rough Country's premium N3 shocks! These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body, this shock offers up to 36kN Tensile Strength for a long lifespan of impressive vibration dampening. Features natural rubber bushings and an eye-catching metallic silver paint.
Features
10-Stage Variable Valving>High Pressure Nitrogen Charged
35mm Piston
Chromed Hardened 18mm Piston Rod
54mm Shock Body to dissipate heat faster
36kN Tensile Strength
Spring Loaded Piston Rod Seal
Military Spec. Fluid Rated To -40 deg C
Rubber bushings for better absorption
Metallic Silver Paint
Free Shipping
3-year Manufacturer's Warranty
Tires & Wheels
Tire | Wheel | Bolt Pattern | Offset | Note |
---|---|---|---|---|
33x12.50R17 | Factory 17 | 5x5.5 | - | - |
33x12.50R17 | 17x8.5 | 5x5.5 | +0 | - |
33x12.50R17 | 17x8.5 | 5x5.5 | +1 | - |
33x12.50R17 | 17x9 | 5x5.5 | +0 | - |
285/70R17 | 17x9 | 5x5.5 | +0 | - |
33x12.50R17 | 17x9 | 5x5.5 | +1 | - |
285/70R17 | 17x9 | 5x5.5 | +1 | - |
33x12.50R17 | 17x9 | 5x5.5 | +18 | - |
33x12.50R17 | 17x9 | 5x5.5 | +20 | - |
33x12.50R18 | 18x8.5 | 5x5.5 | +0 | - |
33x12.50R18 | 18x8.5 | 5x5.5 | +1 | - |
33x12.50R18 | 18x9 | 5x5.5 | +0 | - |
305/60R18 | 18x9 | 5x5.5 | +0 | - |
285/65R18 | 18x9 | 5x5.5 | +0 | - |
275/65R18 | 18x9 | 5x5.5 | +0 | - |
33x12.50R18 | 18x9 | 5x5.5 | +1 | - |
305/60R18 | 18x9 | 5x5.5 | +1 | - |
285/65R18 | 18x9 | 5x5.5 | +1 | - |
275/65R18 | 18x9 | 5x5.5 | +1 | - |
33x12.50R18 | 18x9 | 5x5.5 | +18 | - |
33x12.50R18 | 18x9 | 5x5.5 | +20 | - |
33x12.50R20 | 20x9 | 5x5.5 | +0 | - |
305/55R20 | 20x9 | 5x5.5 | +0 | - |
285/55R20 | 20x9 | 5x5.5 | +0 | - |
33x12.50R20 | 20x9 | 5x5.5 | +1 | - |
305/55R20 | 20x9 | 5x5.5 | +1 | - |
285/55R20 | 20x9 | 5x5.5 | +1 | - |
33x12.50R20 | 20x9 | 5x5.5 | +18 | - |
305/55R20 | 20x9 | 5x5.5 | +18 | - |
285/55R20 | 20x9 | 5x5.5 | +18 | - |
33x12.50R20 | 20x9 | 5x5.5 | +20 | - |
305/55R20 | 20x9 | 5x5.5 | +20 | - |
285/55R20 | 20x9 | 5x5.5 | +20 | - |
285/55R20 | 20x10 | 5x5.5 | -19 | Minor Trimming |
285/55R20 | 20x10 | 5x5.5 | -18 | Minor Trimming |
33x12.50R22 | 22x10 | 5x5.5 | -19 | Minor Trimming |
305/45R22 | 22x10 | 5x5.5 | -19 | - |
33x12.50R22 | 22x10 | 5x5.5 | -18 | Minor Trimming |
305/45R22 | 22x10 | 5x5.5 | -18 | - |
