33232 | Rough Country 6 Inch Lift Kit N3 Struts / N3 Rear Shocks & Variable Rate Rear Coils (2012-2018 Ram 1500 & Classic 4WD)
2012-2018 Ram 1500 Pickup 4WD | 2019-2024 Ram 1500 Pickup 4WD, Classic
Description
6 Inch Lift Kit | Premium N3 Front Struts & Rear Shocks | Variable Rate Rear Coils | Ram 1500 4WD (2012-2018 & Classic)

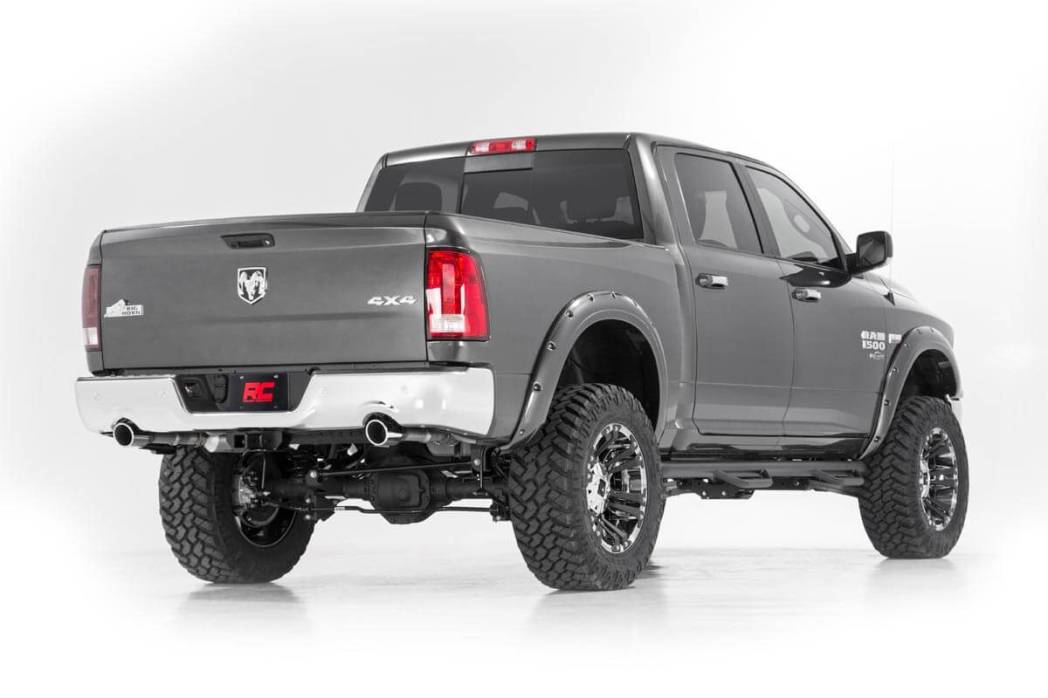

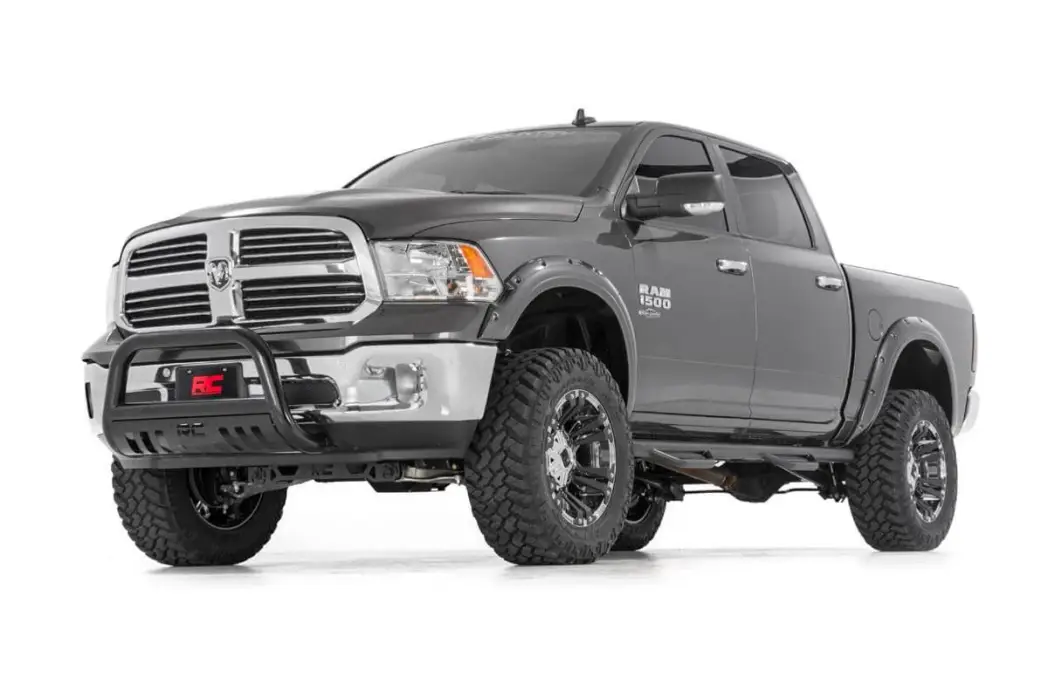

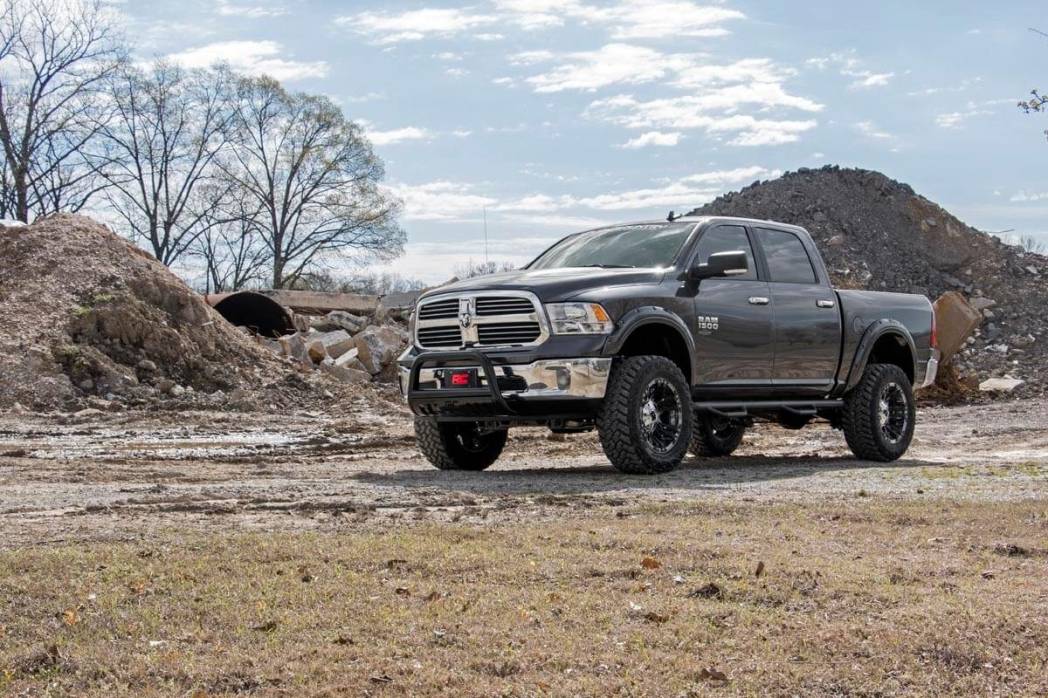

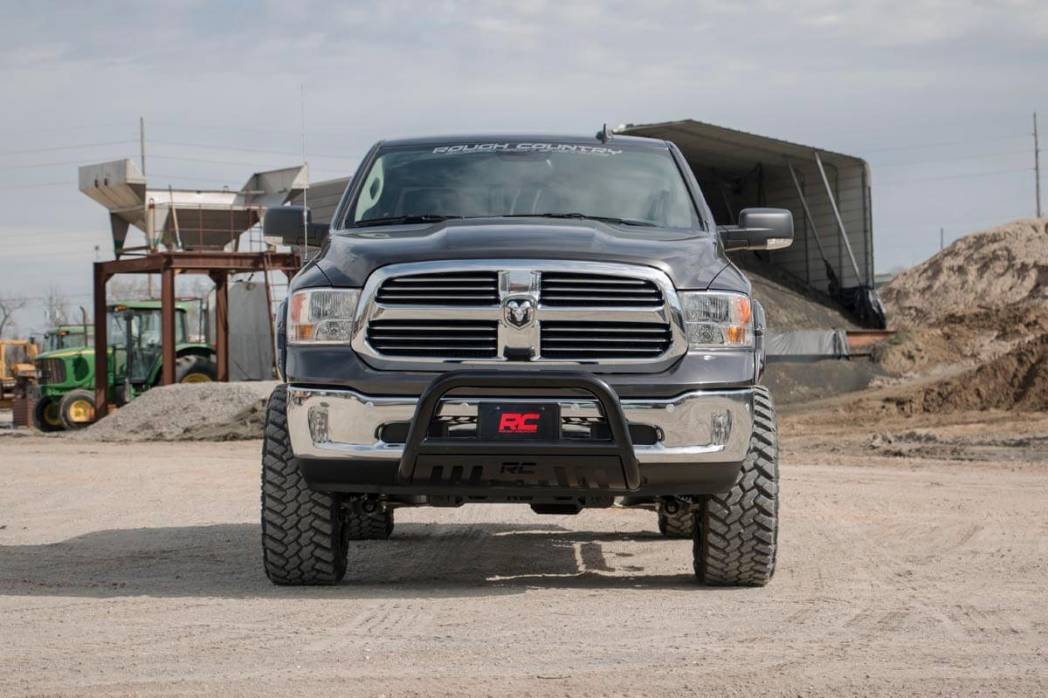

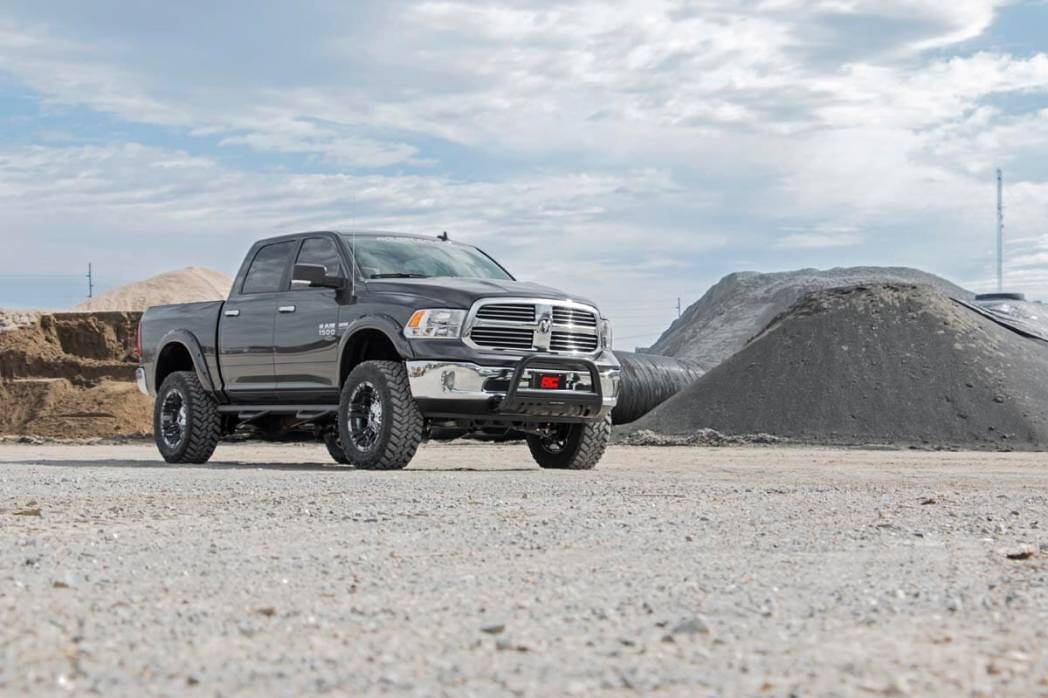

Give your RAM 1500 the perfect blend of performance, protection, and style with Rough Country's 6-inch Suspension Lift. Designed to offer an affordable way to maximize off-road performance and run up to 37-inch tires, these kits offer high quality, heavy-duty equipment for new model RAM 1500’s.
Utilizing heavy-duty, laser cut, steel equipment engineered by Rough Country, these 6-inch Suspension Lifts are complete kits that include everything needed for outstanding off-road performance. High-clearance front and rear cross-members provide enough room for off-road climbs and runs. A heavy-duty skid plate shields the vehicle’s differential, protecting you from hazardous terrain. A durable set of driver and passenger side lifted cast knuckles are also included, helping to promote proper geometry once the vehicle is lifted. And for true trailblazers, this kit also ships with a set of rear N3 shock absorbers - Rough Country’s premiere shocks; valved specifically for unparalleled off-road performance.
Best of all? You'll achieve better performance, bigger tires, and considerable protection all without sacrificing the look of your truck. All components are specifically designed to keep things nice and tidy underneath, utilizing drop brackets to promote proper geometry and leaving nothing hanging out in plain sight. The beefy cross members feature a laser-cut RC logo, giving the truck a fierce, but streamlined look after lifting. Includes Rough Country's Lifetime Replacement Guarantee!
Features
- Increased ground clearance.
- Levels the front with the rear of the vehicle.
N3 Loaded Struts
- Includes pre-loaded coil
- Maintains smooth, factory-like ride
- Increased ground clearance
- Engineered for lifted applications
- Infinitely Variable Damping
- Leak-proof piston seal
- Massive 1 3/8in Bore
- Silver powder coat finish
- 3-year Manufacturer's Warranty
Notes - Important
- Will fit Eco Diesel engine models.
- Kit is not recommended for AWD models.
- Does NOT fit models with factory air ride suspension.
- "TRX" models will achieve approximately 1" of additional lift.
- This lift is not recommended for use on the TRX models due to possible CV shaft vibration caused by the additional lift. - Consider our 4" lift system for about 5" of lift or replace the TRX struts with standard struts for use with this system.
- Requires 20" or larger wheels! Does NOT fit 18" or smaller wheels.
Specs
Est. Install Time | 7-8 hours |
---|
Application List
Start | End | Make | Model | Submodel | Drive |
---|---|---|---|---|---|
2019 | 2024 | Ram | 1500 Classic | Tradesman | 4WD |
2019 | 2024 | Ram | 1500 Classic | Warlock | 4WD |
2019 | 2022 | Ram | 1500 Classic | Express | 4WD |
2019 | 2022 | Ram | 1500 Classic | SLT | 4WD |
2019 | 2019 | Ram | 1500 Classic | Big Horn | 4WD |
2019 | 2019 | Ram | 1500 Classic | Laramie | 4WD |
2019 | 2019 | Ram | 1500 Classic | Lone Star | 4WD |
2012 | 2018 | Ram | 1500 | Big Horn | 4WD |
2012 | 2018 | Ram | 1500 | Express | 4WD |
2012 | 2018 | Ram | 1500 | Laramie | 4WD |
2012 | 2018 | Ram | 1500 | Laramie Longhorn | 4WD |
2015 | 2018 | Ram | 1500 | Limited | 4WD |
2014 | 2018 | Ram | 1500 | Lone Star | 4WD |
2015 | 2018 | Ram | 1500 | Rebel | 4WD |
2012 | 2018 | Ram | 1500 | SLT | 4WD |
2012 | 2018 | Ram | 1500 | Sport | 4WD |
2012 | 2018 | Ram | 1500 | Tradesman | 4WD |
2012 | 2016 | Ram | 1500 | Outdoorsman | 4WD |
2014 | 2015 | Ram | 1500 | Laramie Limited | 4WD |
2012 | 2012 | Ram | 1500 | ST | 4WD |
Tires & Wheels
Tire | Wheel | Bolt Pattern | Offset | Note |
---|---|---|---|---|
35x12.50R20 | 20x9 | 5x5.5 | -12 | - |
37x12.50R20 | 20x9 | 5x5.5 | +0 | Minor Trimming |
35x12.50R20 | 20x9 | 5x5.5 | +0 | - |
37x12.50R20 | 20x9 | 5x5.5 | +1 | Minor Trimming |
35x12.50R20 | 20x9 | 5x5.5 | +1 | - |
35x12.50R20 | 20x10 | 5x5.5 | -25 | Minor Trimming |
35x12.50R20 | 20x10 | 5x5.5 | -24 | Minor Trimming |
37x12.50R20 | 20x10 | 5x5.5 | -19 | Trimming Required |
35x12.50R20 | 20x10 | 5x5.5 | -19 | Minor Trimming |
37x12.50R20 | 20x10 | 5x5.5 | -18 | Trimming Required |
35x12.50R20 | 20x10 | 5x5.5 | -18 | Minor Trimming |
35x12.50R20 | 20x12 | 5x5.5 | -44 | Trimming Required |
35x12.50R22 | 22x10 | 5x5.5 | -25 | Minor Trimming |
35x12.50R22 | 22x10 | 5x5.5 | -24 | Minor Trimming |
37x12.50R22 | 22x10 | 5x5.5 | -19 | Minor Trimming |
35x12.50R22 | 22x10 | 5x5.5 | -19 | Minor Trimming |
37x12.50R22 | 22x10 | 5x5.5 | -18 | Minor Trimming |
35x12.50R22 | 22x10 | 5x5.5 | -18 | Minor Trimming |
35x12.50R22 | 22x12 | 5x5.5 | -44 | Trimming Required |

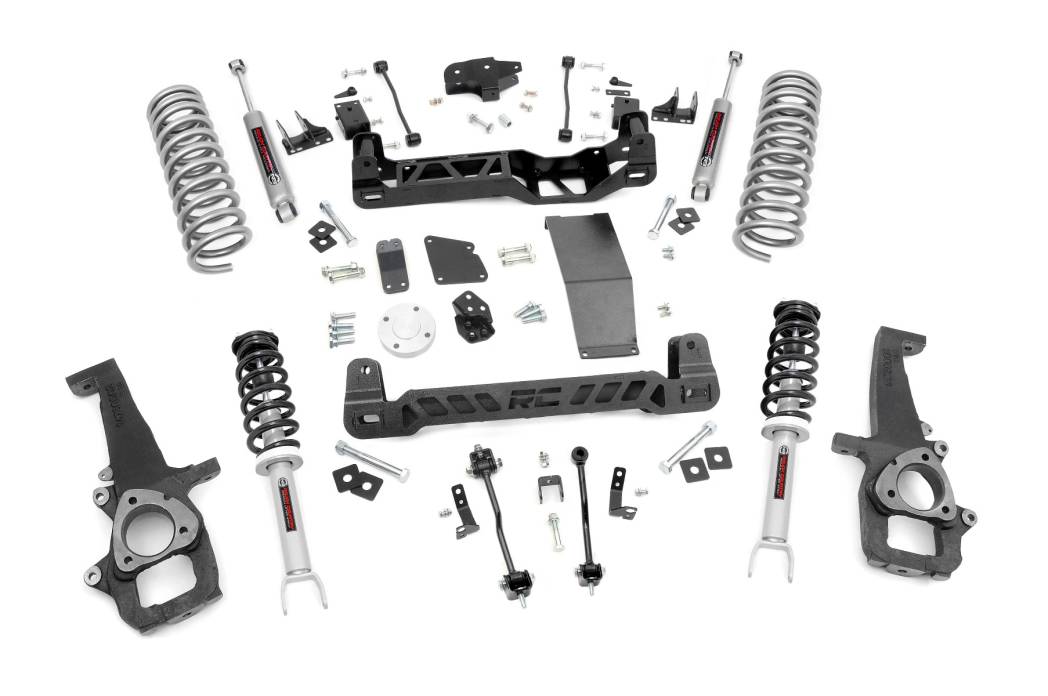

Components
Lifted knuckles
(2) Lifted Struts
Front crossmember
Rear crossmember
Differential drop brackets
Driveshaft spacer
Sway-bar links
Skid plate
Hardware
Rear
Variable Rate Coils
Upper control arm brackets
Sway-bar links
Track bar bracket
Bump-stop brackets
Brake line brackets
Hardware
Shocks
(2) Premium N3 series (Rear)
Shocks
Premium N3 Shocks
Improve your on and off-road ride quality with Rough Country's premium N3 shocks! These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body, this shock offers up to 36kN Tensile Strength for a long lifespan of impressive vibration dampening. Features natural rubber bushings and an eye-catching metallic silver paint.
Features
10-Stage Variable Valving>High Pressure Nitrogen Charged
35mm Piston
Chromed Hardened 18mm Piston Rod
54mm Shock Body to dissipate heat faster
36kN Tensile Strength
Spring Loaded Piston Rod Seal
Military Spec. Fluid Rated To -40 deg C
Rubber bushings for better absorption
Metallic Silver Paint
Free Shipping
3-year Manufacturer's Warranty
Details
- 33232
- 33232
- 843030176839
- Rough Country
- New
Categories
Shipping Information
- Item Requires Shipping
- 125.0 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
