19431A | Rough Country 3.5in Suspension Lift Kit With Forged Upper Control Arms (2007-2016 Silverado, Sierra 1500 4WD)
2007-2016 Chevrolet Silverado 1500 4WD | 2007-2016 GMC Sierra 1500 4WD
19431A
Pricing:
$768.95
Description
This all-inclusive kit comes with several fantastic features - all at a price that'll leave plenty of room for new tires and wheels! This kit includes Rough Country's premium N3 shocks! These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body, this shock offers up to 36kN Tensile Strength for a long lifespan of impressive vibration dampening. Features natural rubber bushings and an eye-catching metallic silver paint.
This kit also features Forged Aluminum Control Arms with POM ball joints that offer a greater range of motion for more wheel articulation than standard or OE replacements and feature a Polyoxymethylene ball race with an extremely low coefficient of friction for longer life, and a larger ball diameter to improve range of motion with a maintenance free design. Also included in this kit are a set of fabricated rear blocks. Fabricated blocks are stronger and offer a longer lifespan than cast blocks while being less susceptible to damage and the environment.
This kit also features Forged Aluminum Control Arms with POM ball joints that offer a greater range of motion for more wheel articulation than standard or OE replacements and feature a Polyoxymethylene ball race with an extremely low coefficient of friction for longer life, and a larger ball diameter to improve range of motion with a maintenance free design. Also included in this kit are a set of fabricated rear blocks. Fabricated blocks are stronger and offer a longer lifespan than cast blocks while being less susceptible to damage and the environment.
FEATURES
- Increased ground clearance.
- Can be returned to stock height!
- Differential drops maintain proper axle angle.
- Control arms include POM ball joints for greater range of motion and easier installation.
- Ball joints are pre-installed to ease installation.
- Rear fabricated lift blocks are stronger and offer a longer lifespan than cast blocks.
- Features application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
NOTES - IMPORTANT
- This kit fits models with both cast steel or aluminum factory control arms.
- Does NOT fit models with factory stamped steel control arms.
- Requires cutting and grinding.
- New lift block replaces the factory equipped block.
- If truck is equipped with a mass damper on the front differential, the damper must be removed.
- Does NOT fit AWD models.
- Does NOT fit 2007 "Classic / old body style" models.
- Does NOT fit GMC Denali models with Magnetic Ride Control.
- Retain your factory wheels with our 0.25" wheel spacers available here! SKU: 1065
SPECS
Est. Install Time | 5-6 hours |
---|
Application List
2007-2016 4WD GMC Sierra 1500
2007-2016 4WD Chevy Silverado 1500
NOTES - IMPORTANT
This kit fits models with both cast steel or aluminum factory control arms.
Does NOT fit models with factory stamped steel control arms.
Requires cutting and grinding.
New lift block replaces the factory equipped block.
If truck is equipped with a mass damper on the front differential, the damper must be removed.
Does NOT fit AWD models.
Does NOT fit 2007 "Classic / old body style" models.
Does NOT fit GMC Denali models with Magnetic Ride Control.
Retain your factory wheels with our 0.25" wheel spacers available here! SKU: 1065
2007-2016 4WD Chevy Silverado 1500
NOTES - IMPORTANT
This kit fits models with both cast steel or aluminum factory control arms.
Does NOT fit models with factory stamped steel control arms.
Requires cutting and grinding.
New lift block replaces the factory equipped block.
If truck is equipped with a mass damper on the front differential, the damper must be removed.
Does NOT fit AWD models.
Does NOT fit 2007 "Classic / old body style" models.
Does NOT fit GMC Denali models with Magnetic Ride Control.
Retain your factory wheels with our 0.25" wheel spacers available here! SKU: 1065

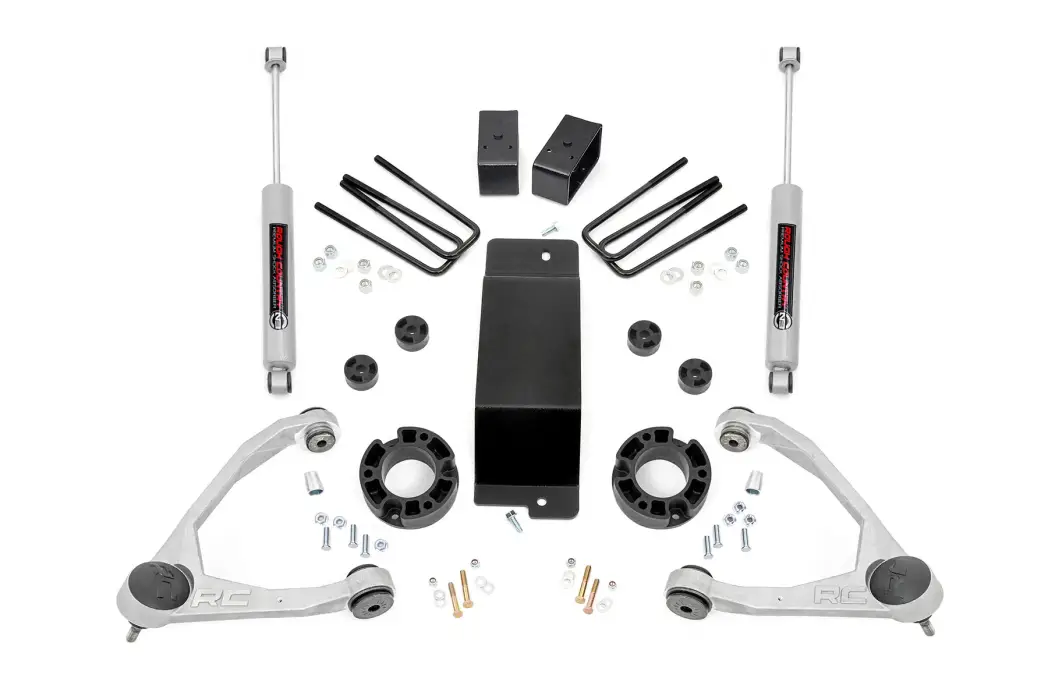

Components
FRONT
Strut spacers
Upper control arms
Upper POM ball joints
Differential drop spacers
Differential skid plate
Hardware
REAR
3in fabricated lift blocks
U-bolts
Hardware
SHOCKS
(2) Rear Premium N3 Shocks
Strut spacers
Upper control arms
Upper POM ball joints
Differential drop spacers
Differential skid plate
Hardware
REAR
3in fabricated lift blocks
U-bolts
Hardware
SHOCKS
(2) Rear Premium N3 Shocks
Tires & Wheels
Tire | Wheel | Bolt Pattern | Offset | Note |
---|---|---|---|---|
285/70R17 | Factory 17 | 6x5.5 | - | - |
285/65R18 | Factory 18 | 6x5.5 | - | - |
285/55R20 | Factory 20 | 6x5.5 | - | - |
285/70R17 | 17x8.5 | 6x5.5 | +0 | - |
285/70R17 | 17x8.5 | 6x5.5 | +1 | - |
285/70R17 | 17x9 | 6x5.5 | +0 | - |
265/70R17 | 17x9 | 6x5.5 | +0 | - |
285/70R17 | 17x9 | 6x5.5 | +1 | - |
265/70R17 | 17x9 | 6x5.5 | +1 | - |
285/70R17 | 17x9 | 6x5.5 | +18 | - |
285/70R17 | 17x9 | 6x5.5 | +20 | - |
305/60R18 | 18x8.5 | 6x5.5 | +0 | - |
285/65R18 | 18x8.5 | 6x5.5 | +0 | - |
275/65R18 | 18x8.5 | 6x5.5 | +0 | - |
265/65R18 | 18x8.5 | 6x5.5 | +0 | - |
305/60R18 | 18x8.5 | 6x5.5 | +1 | - |
285/65R18 | 18x8.5 | 6x5.5 | +1 | - |
275/65R18 | 18x8.5 | 6x5.5 | +1 | - |
265/65R18 | 18x8.5 | 6x5.5 | +1 | - |
305/60R18 | 18x9 | 6x5.5 | +0 | - |
285/65R18 | 18x9 | 6x5.5 | +0 | - |
275/65R18 | 18x9 | 6x5.5 | +0 | - |
265/65R18 | 18x9 | 6x5.5 | +0 | - |
305/60R18 | 18x9 | 6x5.5 | +1 | - |
285/65R18 | 18x9 | 6x5.5 | +1 | - |
275/65R18 | 18x9 | 6x5.5 | +1 | - |
265/65R18 | 18x9 | 6x5.5 | +1 | - |
305/60R18 | 18x9 | 6x5.5 | +18 | - |
285/65R18 | 18x9 | 6x5.5 | +18 | - |
275/65R18 | 18x9 | 6x5.5 | +18 | - |
265/65R18 | 18x9 | 6x5.5 | +18 | - |
305/60R18 | 18x9 | 6x5.5 | +20 | - |
285/65R18 | 18x9 | 6x5.5 | +20 | - |
275/65R18 | 18x9 | 6x5.5 | +20 | - |
265/65R18 | 18x9 | 6x5.5 | +20 | - |
305/55R20 | 20x9 | 6x5.5 | +0 | Minor Trimming |
285/55R20 | 20x9 | 6x5.5 | +0 | - |
305/55R20 | 20x9 | 6x5.5 | +1 | Minor Trimming |
285/55R20 | 20x9 | 6x5.5 | +1 | - |
305/55R20 | 20x9 | 6x5.5 | +18 | - |
285/55R20 | 20x9 | 6x5.5 | +18 | - |
305/55R20 | 20x9 | 6x5.5 | +20 | - |
285/55R20 | 20x9 | 6x5.5 | +20 | - |
305/55R20 | 20x10 | 6x5.5 | -19 | Minor Trimming |
285/55R20 | 20x10 | 6x5.5 | -19 | Minor Trimming |
305/55R20 | 20x10 | 6x5.5 | -18 | Minor Trimming |
285/55R20 | 20x10 | 6x5.5 | -18 | Minor Trimming |
305/45R22 | 22x10 | 6x5.5 | -19 | - |
285/45R22 | 22x10 | 6x5.5 | -19 | Minor Trimming |
305/45R22 | 22x10 | 6x5.5 | -18 | - |
285/45R22 | 22x10 | 6x5.5 | -18 | Minor Trimming |
Details
- 19431A
- 19431A
- 843030185329
- Rough Country
- New
Categories
Shipping Information
- Item Requires Shipping
- 65.0 lbs.
- W30.0000” x H14.0000” x L8.0000”
- Free Ground Shipping | Exclusions Apply*
