This is a complete replacement knuckle style suspension lift kit for the 2009-2014 Ford F-150 4WD
Provides 6” lift height
Includes fabricated rear lift blocks and rear Fox 2.0 Shock Absorbers

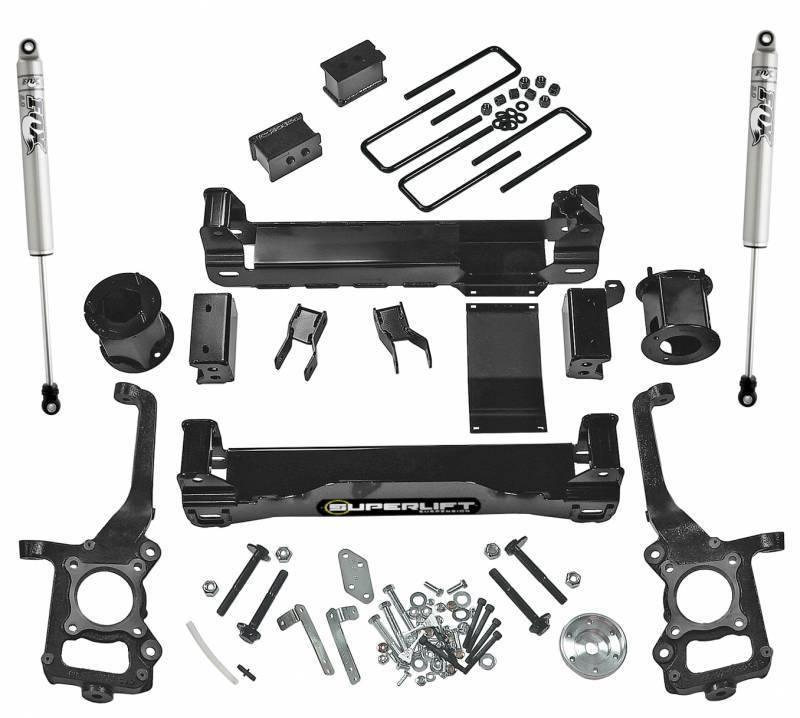

What does it include?
All brackets, cross-members, shocks, steering knuckles, u-bolts, spacers, and hardware required specific to the 2009-2014 4WD Ford F-150
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation
Superlift’s 6-Inch Lift kit for the 2009-2014 Ford F-150 now features a variety of shock options, from Superlift Shocks to Bilstein 5100 Series Shocks to Fox® performance series 2.0 IFP shocks. This shock variety will allow you find your ride quality. Superlift Suspension intentionally over-builds our suspension kits to be the best. Our uniquely engineered design adds strength and durability and has bonus features that others do not offer.
This is a complete replacement knuckle style suspension lift kit that provides 6 inches of lift and includes fabricated rear blocks and Rear Superlift, Bilstein or Fox® Performance 2.0 Shocks. All required parts are included to make sure your Ford F-150 handles and performs just like a stock truck!
Features:
Replacement Knuckle style suspension lift kit
Direct bolt-on (No Weld Design)
Allows the use of 18” or larger factory wheels
Allows clearance for up to 35” tires
Fabricated Rear blocks to ensure proper axle angle and prevent axle wrap
Rear Superlit or Bilstein 5100 or Fox® shocks
Benefits:
Aligns to OEM Specifications
Maintains ride quality and handling characteristics
Corrects Front to Rear factory rake
Retains OEM Track Width
Designed using Original Equipment (OE) CAD data for accuracy.
Front:
CNC Machined extended ductile iron steering knuckles
CNC machined billet aluminum driveshaft spacer
All fabricated steel components are laser cut, CNC formed finish with a durable powder coating
Front top mount strut spacers
One-piece front and rear cross members
Front differential skid plate
Sway-bar relocation brackets
Differential relocation brackets
Brake line relocation brackets
Eccentric cam-bolts
Rear:
Fabricated rear Blocks – provides proper pinion angle to eliminate axle wrap and driveline vibrations
Brake line relocation brackets
U-bolts and hardware
Compression stop extensions
Superlift Shocks or Bilstein® 5100 Series or Fox® Performance Series 2.0 Shocks (2 shocks)
Notes:
Installation time: 7-8 hours
Difficulty level: 3 of 5
Does not fit Single Cab Truck models
Models equipped with a two-piece rear driveshaft will need to order an additional kit box 9935 for the carrier bearing shims
2009-2014 Ford F-150 Pickup 4wd
Does not fit Single Cab Truck models
Models equipped with a two-piece rear driveshaft will need to order an additional kit box 9935 for the carrier bearing shims
