This is a complete coil spring lift kit for the 2005-2007 Ford F-250/F-350 – diesel engine
Provides 4” lift height
Includes track bar and radius arm relocation brackets, Front and Rear Fox Shocks
What does it include?

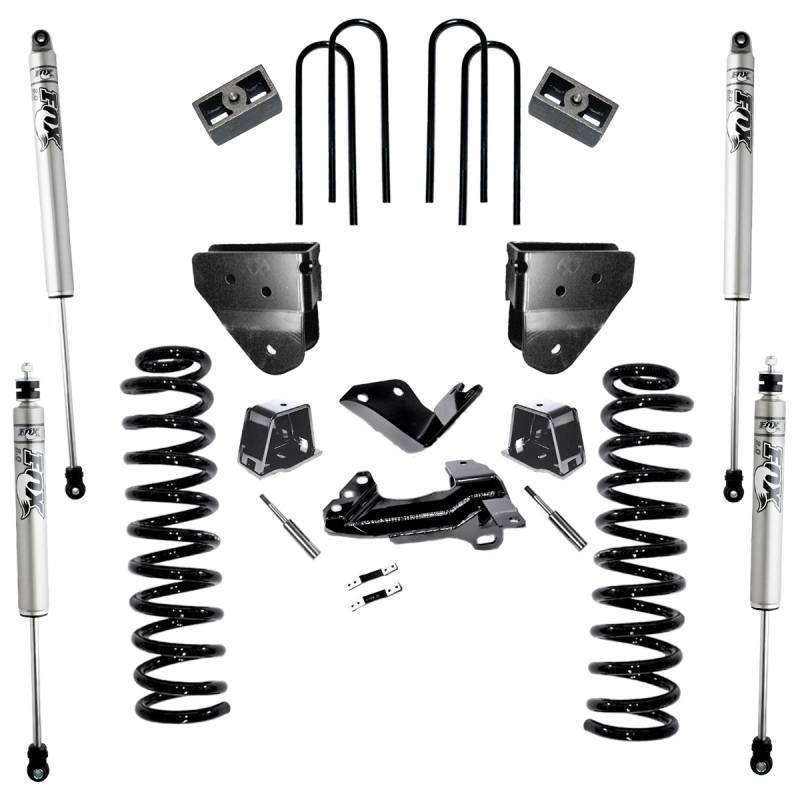

Front coil springs, track bar bracket, radius arm brackets, sway bar correction, shocks, rear block and u-bolt kit, and all hardware required specific to the 2005-2007 4wd Ford F-250 | F-350 DIESEL
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation
This 4” Lift for the 2005-2007 Ford Super Duty F-250 | F-350 4WD features Superlift’s engine specific coil springs to ensure proper lift height and maintain factory ride quality. Radius arm drop brackets are used to restore proper caster angle and alignment. Other components included with this 4-inch suspension system are front compression travel-stop relocation brackets, track bar relocation bracket, front anti-sway bar extensions, and steering stabilizer bracket. Rear lift is acheieved by 2.5 inch blocks.
Complete your 4-inch Ford F-250 | F-350 with the most extensive variety of shocks on the suspension market. Shocks for this kit are available in the following: Superlift Shocks OR Bilstein 5100 Series OR Fox Performance Series 2.0 IFP Shocks.
Features:
Replacement Front coil springs improve ride quality while rear blocks maintain load capacity
Radius Arm Drop Brackets
Front Compression Travel-Stop Brackets prevent suspension over-compression
Track bar relocation bracket prevents stud bind, resulting roll and yaw, and steering wheel kick
Threaded front anti-sway extensions do not require cutting or welding
Front and Rear Shock: Fox® Performance Series 2.0 IFP Shocks
Backed by our limited lifetime warranty
Benefits:
Aligns to OEM specifications
Maintains ride quality and handling characteristics
NOTES:
Installation time: 7-8 hours
Difficulty level: 3 of 5
If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required. Part # 9649
Dually Applications may require different u-bolts
For Super duty’s equipped with top mount overloads, a different u-bolt is required. Part # 11674 will need or replace block kit with part #11694
2005-2007 Ford F-250 Super Duty 4wd
2005-2007 Ford F-350 Super Duty 4wd
If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required. Part # 9649
Factory rear overload springs cannot be retained if replacements rear spring are used
Dually Applications may require different u-bolts
For Super dutys equipped with top mount overloads, a different u-bolt is required. Part # 11674 will need or replace block kit with part #11694
