K876F | Superlift 4 inch Suspension Lift Kit with Fox 2.0 Shocks (2011-2016 F250, F350 Super Duty 4WD | Diesel)

This is a complete coil spring suspension lift kit for the 2011-2016 Ford F-250/F-350 4WD – diesel engine
Provides 4” lift height
Includes track bar and radius arm drop brackets, rear blocks, front and rear Fox 2.0 Shocks

What does it include?

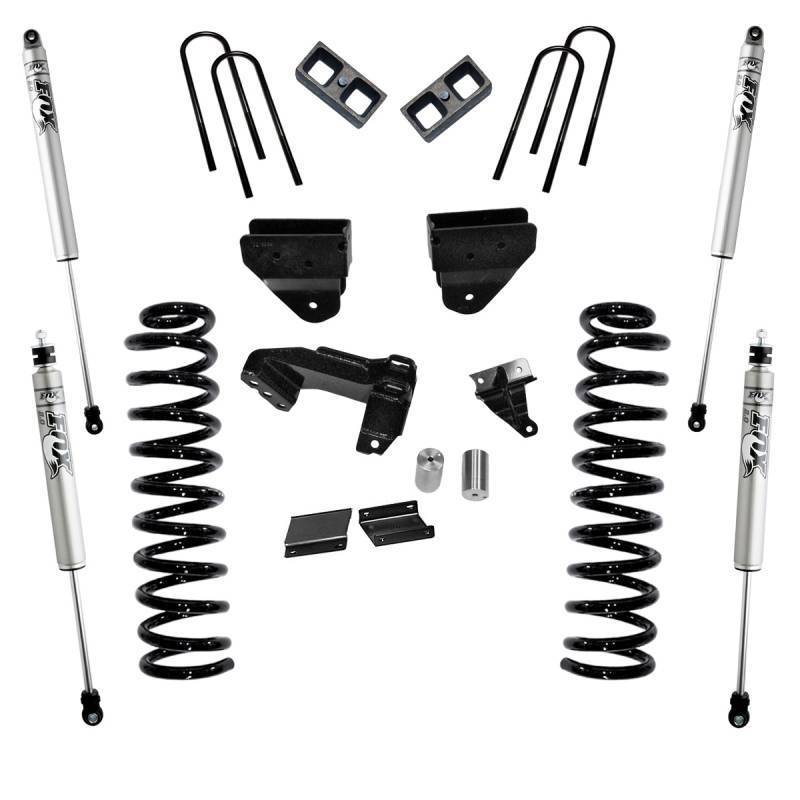

Front coil springs, track bar bracket, radius arm brackets, sway bar correction, shocks, rear block and u-bolt kit, and all hardware required specific to the 2011-2016 4WD Ford F-250/F-350 DIESEL ENGINE
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

This 4” Lift for the 2011-2016 Ford Super Duty F-250 | F-350 4WD features Superlift’s engine specific coil springs to ensure proper lift height and maintain factory ride quality. Radius arm lowering brackets are used to restore proper caster angle and alignment. Other components included with this 4-inch suspension system are front compression travel-stop relocation brackets, track bar relocation bracket, front anti-sway bar extensions, and steering stabilizer bracket. Rear lift is achieved by 2.5 inch blocks.

OEM CAD models and the latest 3D design software were used to precision engineer a suspension system that includes a track bar relocation bracket, front sway bar correction, bump stop extension brackets, brake hose relocation brackets.

Features:
Replacement Front coil springs improve ride quality while rear blocks maintain load capacity
Radius Arm lowering brackets
Front Compression Travel-Stop Brackets prevent suspension over-compression
Track bar relocation bracket prevents stud bind, resulting roll and yaw, and steering wheel kick
Threaded front anti-sway extensions do not require cutting or welding
Front and Rear Fox® Performance Series 2.0 IFP Shocks
Backed by our limited lifetime warranty

Benefits:
Aligns to OEM specifications
Maintains ride quality and handling characteristics

NOTES:
Installation time: 8 hours
Difficulty level: 3 of 5

If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required. Part # 9649
This lift kit is packaged with rear blocks and u-bolts that are configured for the Ford F-250 | F-350 with the factory 1 7/8 inch blocks WITHOUT top mount overloads. If your Ford is equipped with top is equipped with the factory 3.71 inch blocks or top mount overloads, a long rear u-bolt will be required. For Super duty’s equipped with 1-7/8 inch blocks and top mount overloads, part # 11724 will need to be purchased in addition to the lift kit. If the truck is equipped with 371 inch block and top mount overloads, part # 11734 is required.
