37530 | Rough Country 5 Inch Lift Kit With Radius Arm For Ram 3500 4WD | 2019-2023 | Standard Non-AISIN Transmission (Most Common)

5 Inch Lift Kit With Radius Arm For Ram 3500 4WD | 2019-2023 | Standard Non-AISIN Transmission (Most Common) | NOT Fit Power Wagon, Air Ride Models; ONLY Fits Diesel Models

37530
Pricing: $1,955.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Compliment your RAM 3500's aggressive, good looks with Rough Country's 5-inch Radius Arm Lift Kit. RAM Trucks come with a wealth of impressive features right from the factory. Rough Country's new 5-inch kit was engineered to retain these impressive factory specs while bumping up performance and durability where it's needed most. The result is a lifted beast with a mean profile and lush ride-quality that'll make other RAM owners wonder where you got yours from!

When changing a vehicle's suspension, the key to preserving ride quality is in keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's 5-inch Suspension kit features a set of ultra-durable Radius Arms, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle. These beefy, upgraded Radius Arms also feature a durable, Clevite Rubber Bushing for maximum vibration absorption. This kit also includes a set of front, lifted coil springs for unparalleled ride quality from your lifted Dodge Ram.

FEATURES

  • Increased ground clearance
  • Track bar bracket keeps the front axle properly centered
  • Radius Arms offer a more factory‐like angle and feature a durable, Clevite Rubber Bushings for maximum vibration absorption
  • Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off‐road use.

NOTES - IMPORTANT

  • Requires removal of Transfer case for clocking ring install for correct front driveline geometry.
  • Does NOT fit 'Power Wagon' models
  • Does NOT fit air ride models
  • Fits single rear-wheel models and dual-rear-wheel models.
  • Rear wheels may require additional dually wheel spacers to run 12.50in wide tire
  • ONLY fits Diesel models
  • Requires minor cutting.
  • On vehicles equipped with a two-piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take-off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing.

SPECS

  • Est. Install Time 6-8 hours

Vehicle Applications

2019 - 2023 Ram 3500 Pickup

NOTES - IMPORTANT
Requires removal of Transfer case for clocking ring install for correct front driveline geometry.
Does NOT fit 'Power Wagon' models Does NOT fit air ride models Rear wheels may require additional dually wheel spacers to run 12.50in wide tire ONLY fits Diesel models Requires minor cutting.
On vehicles equipped with a two piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing.
Does Not fit models with 6.7L HO Turbo Diesel with 6-speed Aisin Transmission.

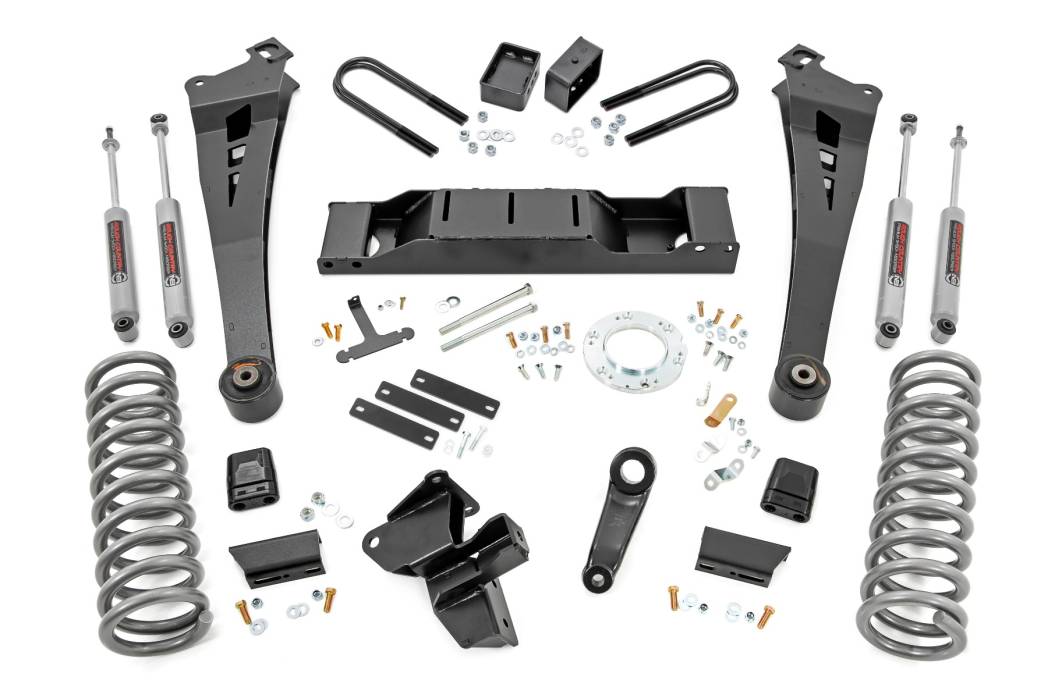

Components

FRONT
Lifted Coil springs
Radius arms
Track Bar bracket
Transmission crossmember
clocking ring
Sway-bar brackets
Pitman arm
Carrier bearing shims
Hardware

REAR
Rear lift blocks
U-bolts
Track bar bracket
Sway-bar links
Hardware

SHOCKS
(4) Premium N3 Series

Tires & Wheels

37x12.50R17 17x8.5 8x6.5/8x165.1 +0 -
37x12.50R17 17x8.5 8x6.5/8x165.1 +1 -
37x12.50R17 17x9 8x6.5/8x165.1 -12 -
37x12.50R17 17x9 8x6.5/8x165.1 +0 -
37x12.50R17 17x9 8x6.5/8x165.1 +1 -
37x12.50R18 18x8.5 8x6.5/8x165.1 +0 -
37x12.50R18 18x8.5 8x6.5/8x165.1 +1 -
37x12.50R18 18x9 8x6.5/8x165.1 -12 -
37x12.50R18 18x9 8x6.5/8x165.1 +0 -
37x12.50R18 18x9 8x6.5/8x165.1 +1 -
37x12.50R18 18x10 8x6.5/8x165.1 -25 Minor Trimming
37x12.50R18 18x10 8x6.5/8x165.1 -24 Minor Trimming
37x12.50R18 18x10 8x6.5/8x165.1 -19 Minor Trimming
37x12.50R18 18x10 8x6.5/8x165.1 -18 Minor Trimming
37x12.50R20 20x9 8x6.5/8x165.1 -12 -
37x12.50R20 20x9 8x6.5/8x165.1 +0 -
37x12.50R20 20x9 8x6.5/8x165.1 +1 -
37x12.50R20 20x10 8x6.5/8x165.1 -25 Minor Trimming
37x12.50R20 20x10 8x6.5/8x165.1 -24 Minor Trimming
37x12.50R20 20x10 8x6.5/8x165.1 -19 Minor Trimming
37x12.50R20 20x10 8x6.5/8x165.1 -18 Minor Trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
