28650 | 7.5 Inch GM Suspension Lift Kit w/ Vertex Coilovers

Chevrolet, GMC
2007-2013 Tahoe
2007-2013 Yukon

28650
Pricing: $3,072.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

This all-inclusive kit ships with everything you need to get going and hit the mudholes. Featuring a set of beefy lifted knuckles and 1/4in thick steel front and rear high-clearance crossmembers, this kit offers plenty of muscle to handle hazards both on and off-road.

A set of Lifted Coil Springs and Upper Strut Spacers provide plenty of ride height - enough to run up to a 33in tire on our 5in option, or a 35in tire on our 7.5in option. Both kits feature sway-bar links, shock extensions, brakeline brackets, a rough and tumble lower skid plate, and Grade 8 Hardware.

Included sway-bar drop brackets and differential drop brackets help keep vehicle components properly aligned after lifting, providing a factory-like ride while boasting an aggressive stance.

FEATURES
Unmatched ground clearance from high clearance crossmember design.
100% precision laser cut materials used in latest computer aided design process.
No strut disassembly or strut compressor required for installation. (SKU: 286)
Requires no modification to the stock differential mounts, drivetrain or exhaust.
Provides highly sought level stance when complete.
NOTES - IMPORTANT
Does NOT fit Auto Ride or Auto Leveling models.
Does NOT fit models with electric steering.
Does NOT fit AWD models.
Minor cutting and drilling is required.
18in or larger wheels are required.
Please view instructions for complete information on proper tire/wheel combinations.

SPECS
SKU 28650
Est. Install Time 8-10 hours

Vehicle Applications

2007 - 2013 Chevrolet Tahoe
2007 - 2013 GMC Yukon

NOTES - IMPORTANT
Does NOT fit Auto Ride or Auto Leveling models.
Does NOT fit models with electric steering.
AWD models will require driveline modifications (Must be converted to not be AWD).
Minor cutting and drilling is required.
18in or larger wheels are required.
Please view instructions for complete information on proper tire/wheel combinations.

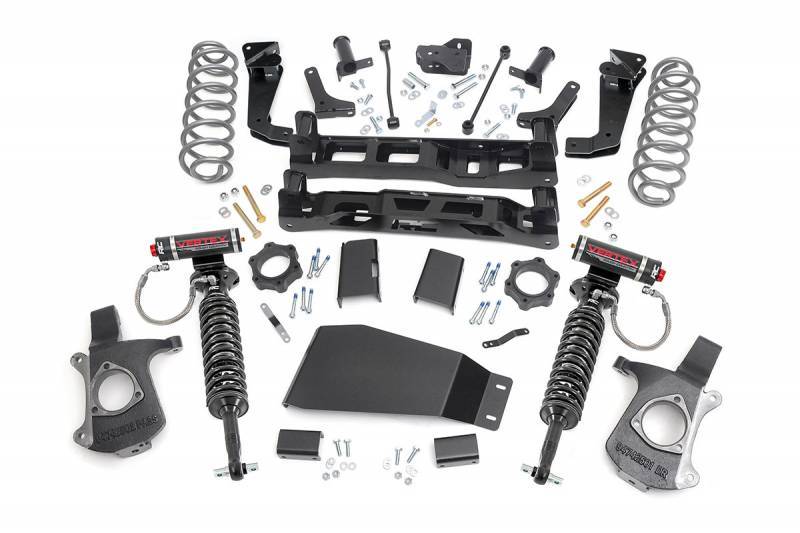

Components

FRONT
Lifted knuckles
Front crossmember
Rear crossmember
N3 Lifted Struts | Loaded
Differential drop brackets
CV spacers
Sway-bar brackets
Lower skid plate
Brake line brackets
Hardware
REAR
Lifted coil springs
Coil spring spacers
Sway-bar links
Track bar bracket
Shock extensions
Hardware

Tires & Wheels

295/70 R18 Factory 18 - -
315/65 R18 18x9 - +12 to +18mm
295/60 R20 Factory 20 - -
315/55 R20 20x9 - +12 to +18mm

Factory 18in & 20in wheels can be run but require 1/4in wheel spacers with 295 tires
Models equipped with Factory 18-inch or larger wheels must run 18-inch or larger wheels if changing to aftermarket wheels

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 125.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
