52651 | 6 Inch Ford Suspension Lift Kit w/ Vertex Reservoir Shocks (Diesel, No Overloads)

Ford | 2017-2022 F-250, F-350 Super Duty 4wd | No Factory Overloads, 3.5 Diameter Axle

52651
Pricing: $5,307.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Gain greater travel and improved handling while adding ground clearance and aggressive style with Rough Country's 4-Link F-250 Lift Kit.

This innovative kit allows you to replace your factory arms with a 4-Link setup, using Rough Country's durable, fixed upper arms and adjustable lower control arms. A set of radius arm drop brackets maintain proper geometry and allow for proper caster setting, which is crucial to maintain factory handling.

This kit includes a set of lifted coil springs, radius arm drop-brackets, and ultra-durable, fabricated Anti-wrap rear blocks that prevent binding and axle wrap. This kit also includes stainless steel extended brake lines and brake line brackets to ensure you have everything you need to install your lift. Best of all, this kit features Rough Country's Nitrogen-Charged N2.0 Shock Absorbers for the ultimate balance in off-road performance and a smooth highway ride. Includes Rough Country's Lifetime Replacement Warranty

FEATURES
Easy bolt-on installation
Increased ground clearance
Levels the front with the rear of the vehicle
Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.

NOTES - IMPORTANT
Does NOT fit gas engine models.
Does NOT fit manual shift transfer cases
Does NOT fit dually models.
New fabricated lift block replaces the factory equipped lift block.

SPECS
SKU 52651 - Includes Front Driveshaft
Est. Install Time 6-8 hours
Recommended Tire Size 37x12.50
Recommended Wheel Backspacing 4.5in

Vehicle Applications

2017 - 2022 Ford F-250 Super Duty
2017 - 2022 Ford F-350 Super Duty

NOTES - IMPORTANT
Does NOT fit F-350 models.
Does NOT fit gas engine models.
Does NOT fit manual shift transfer cases Does NOT fit dually models.
Does NOT fit models with 4" rear axle tube Does NOT fit models equipped with rear factory contact overload springs New fabricated lift block replaces the factory equipped lift block.
Does NOT work on models equipped with Tremor Factory Trim Package

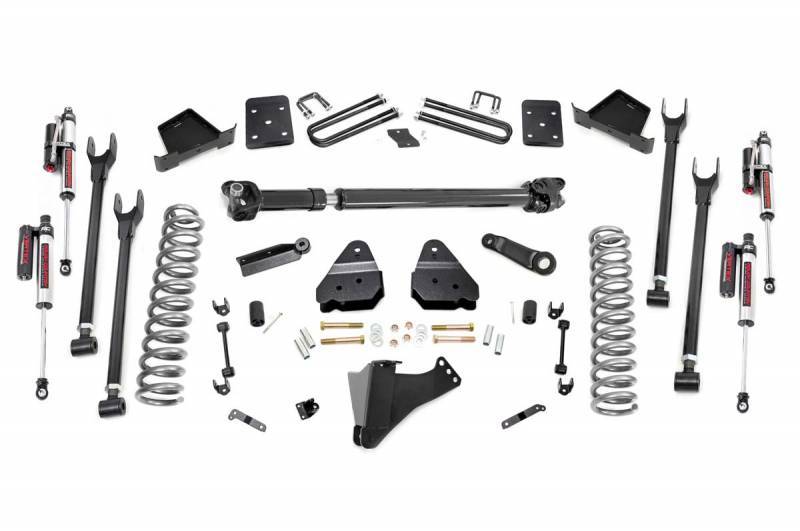

Components

FRONT
Lifted coil springs
Fixed upper control arms
Clocking ring kit
Adjustable lower control arms
Radius arm drop brackets
Sway-bar drop brackets
Track bar drop bracket
Stabilizer relocation brackets
Pitman arm
Brake line brackets
Bumpstop spacers
Hardware

REAR
Fabricated anti-wrap lift blocks
Carrier bearing drop bracket
Brake line brackets
U-bolts
Hardware

SHOCKS
(4) V2 Monotube series

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*

Documents
